JDS8850CDB00 05 – DOOR PARTS – Aparts

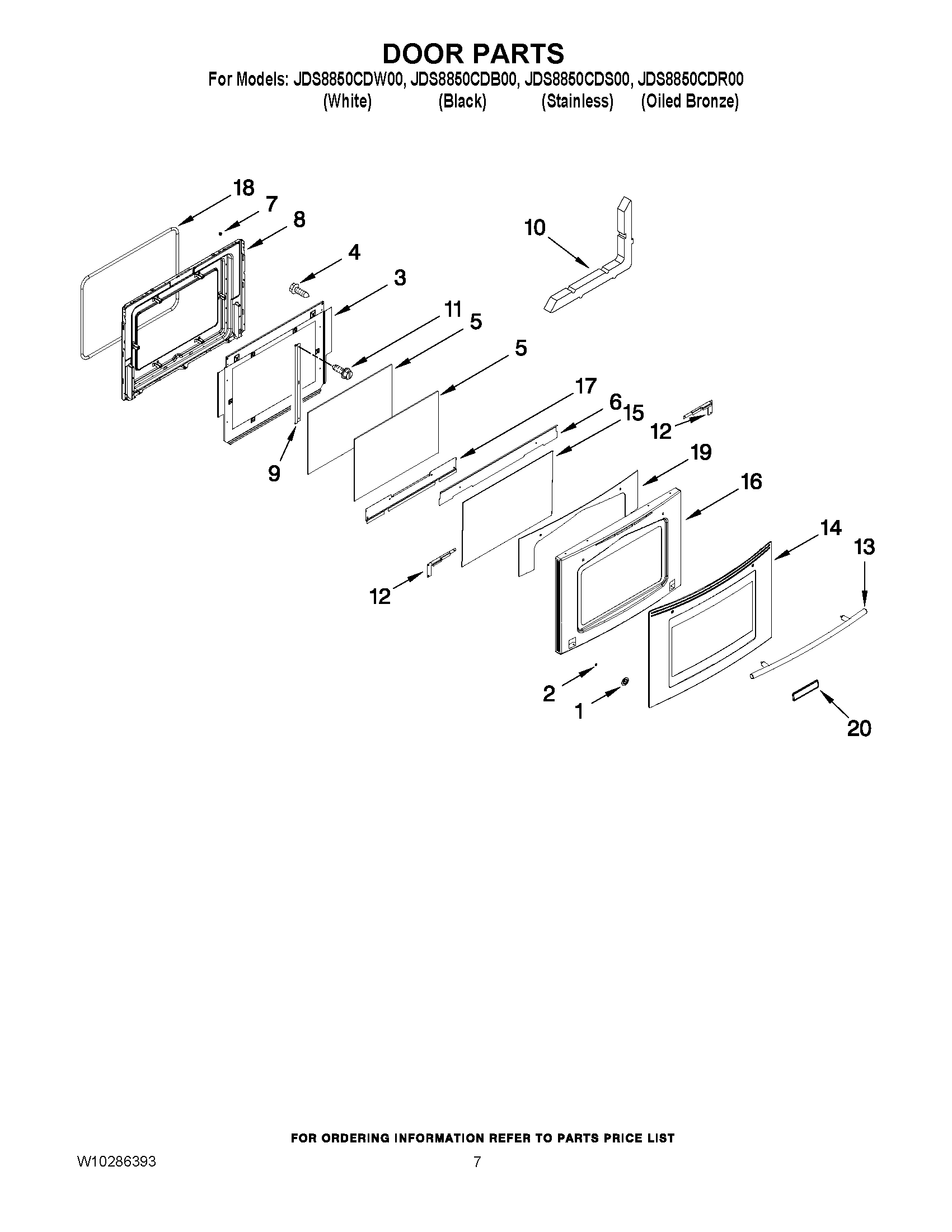

JDS8850CDB00 05 – DOOR PARTS

Products

Position	Product
1	MAY 7109P082-60
2	MAY 7103P176-60
3	MAY 3601F373-51
4	MAY 7101P376-60
5	Glass, Inner
6	MAY 3604F418-51
7	MAY 7103P141-60
8	MAY 2402W312-19
9	BRACKET, INNER GLASS
10	MAY 7002P246-60
11	MAY 7101P426- 60
12	MAY 3804F307-51
12	MAY 3804F308-51
13	MAY W10223164
13	MAY W10223163
13	MAY W10223165
13	MAY W10223152
14	MAY W10272330
14	MAY W10272332
14	MAY W10235390
14	MAY W10235391
15	GLASS, INNER COATED
16	MAY 3603F075-70
16	MAY 3603F075-71
17	RETAINER, GLASS (LOWER)
18	MAY W10162384
19	MAY 7002P465-60
20	ASSEMBLY, BADGE (BLACK)
20	ASSEMBLY, BADGE (STAINLESS)
20	ASSEMBLY, BADGE (OILED BRONZE)
20	ASSEMBLY, BADGE (WHITE)
