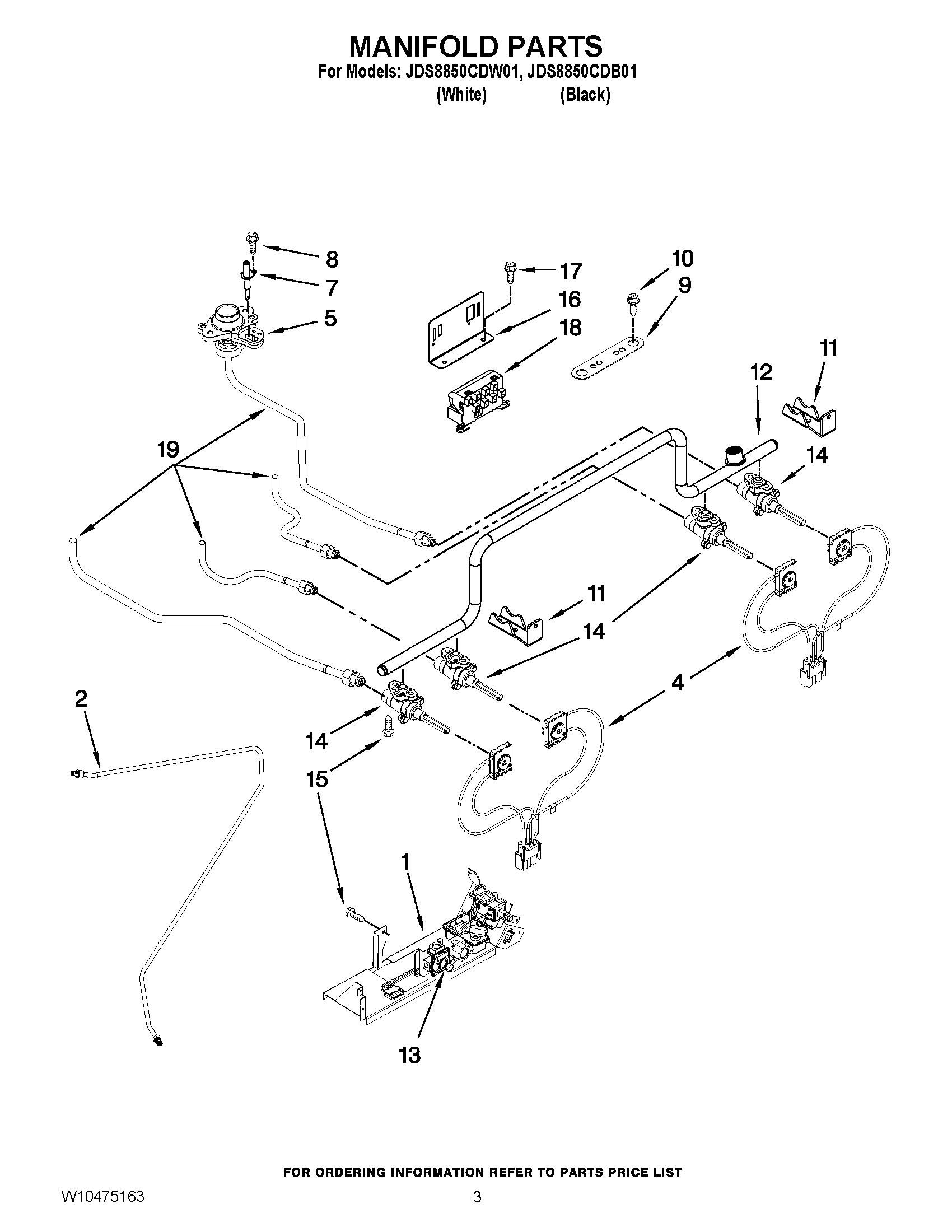

JDS8850CDB01 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10258122
1	COVER, BURNER BOX (DUAL RING)
2	MAY 7506P489-60
4	HARNESS, VALVE (RF/RR)
4	HARNESS, VALVE (LF/LR)
5	HOLDER, ORIFICE (CTR)
5	HOLDER, ORIFICE (LR)
5	ORIFICE, HOLDER (DUAL BURNER, LF)
5	HOLDER, ORIFICE (LF, RR)
7	IGNITOR
8	MAY 7101P606-60
9	MAY W10160530
10	SCREW (10-24X5/16-NI)
11	MAY W10160655
12	MAY 7513P473-60
13	MAY 7510P101-60
14	VALVE, TOP BURNER (LF (DUAL))
14	MAY 7502P548-60
14	VALVE, TOP BURNER (RR/LF 9.2K)
14	VALVE, TOP BURNER (LR 5K)
15	SCREW (8BX3/8-NI)
16	BRACKET
17	MAY 7101P426- 60
18	MAY 7431P038-60
19	MAY 7506P445-60
19	MAY 7506P448-60
19	MAY 7506P469-60
19	MAY 7506P470-60
19	MAY 7506P447-60
