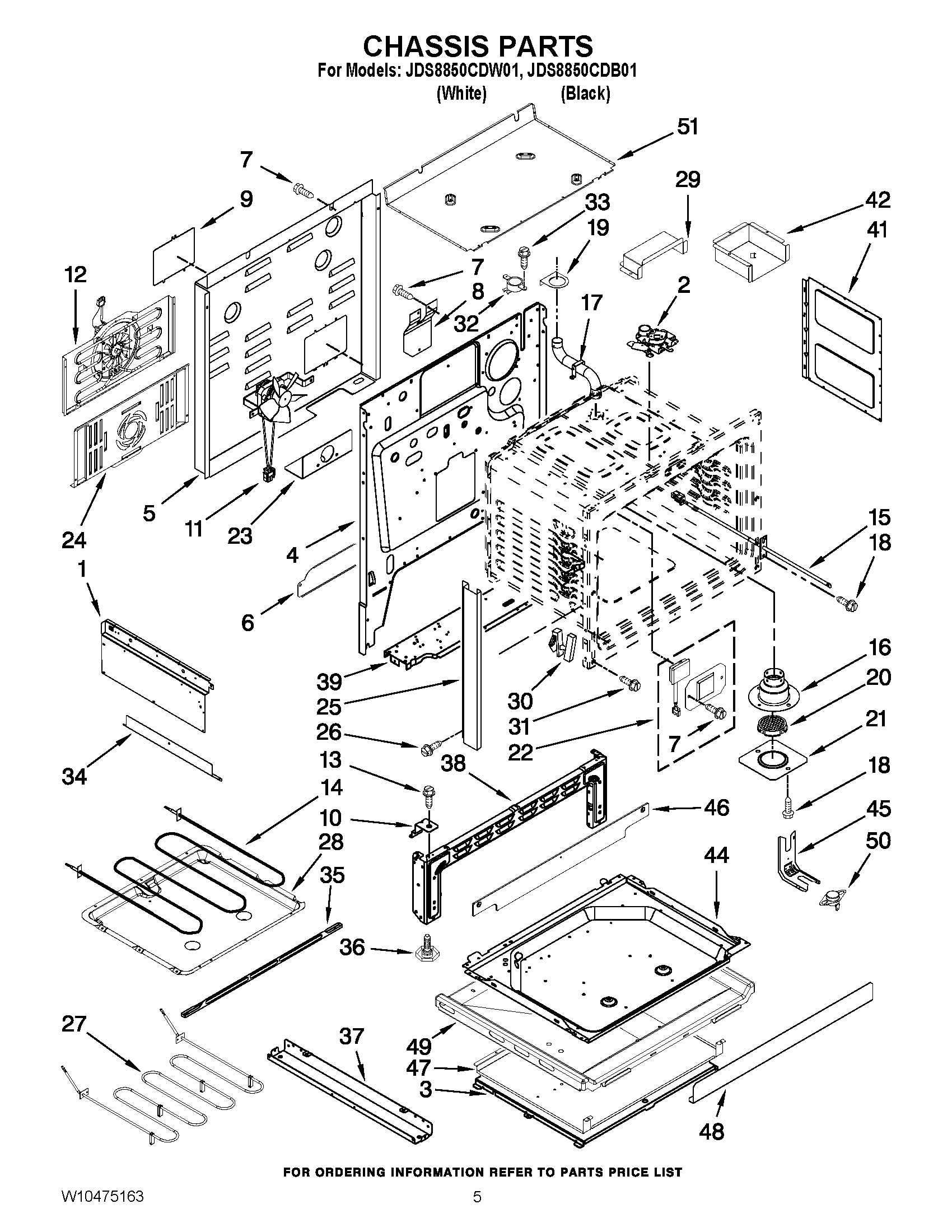

JDS8850CDB01 04 – CHASSIS PARTS

JDS8850CDB01 04 – CHASSIS PARTS

Written by

in

JDS8850CDB01 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P471-60
NI	MAY 7002P445-60
NI	INSULATION, OVEN BOTTOM
1	MAY 2618F201-51
1	MAY 2618F206-51
2	LATCH ASSEMBLY
3	MAY 3604F327-51
4	BACK, MAIN
5	COVER, MAIN WIRE
6	MAY 3826F066-51
8	MAY 7003P101-60
9	COVER, TERMINAL
10	SUPPORT, OVEN BTM.
11	MAY W10317679
12	MAY W10213813
14	MAY W10314704
15	MAY 7430P042-60
16	MAY 8026P096-60
17	TUBE, VENT MIDDLE
19	MAY 3605F345-51
20	SCREEN, SMOKE ELM.
21	MAY 3605F354-45
22	MAY 7407P180-60
23	MAY 3801F911-51
24	COVER, CONVECTION
25	MAY 3608F138-71
25	TRIM, SIDE (BLACK (2))
26	MAY 7101P500-60
27	MAY W10314699
28	PAN, BAKE
29	COVER, DOOR LATCH
30	Hinge, Door (2)
31	SCREW (10-24X5/16-NI)
32	MAY 7403P647-60
33	MAY 7101P426- 60
34	MAY 3826F064-51
35	SUPPORT, BROIL ELEMENT
36	LEG, LEVELING
37	MAY 4020W035-80
38	PEDESTAL, FRONT
39	SUPPORT
41	INSULATION
42	COVER, BURNER BOX (DUAL RING)
44	MAY 3804F231-51
45	BRACKET, ANTI-TIP
46	TRIM, FRONT FRAME
47	SHIELD, WARM. DWR.
48	MAY 4005F749-45
49	MAY 2205F060-19
50	MAY 7403P657-60
51	MAY 4011F496-51
