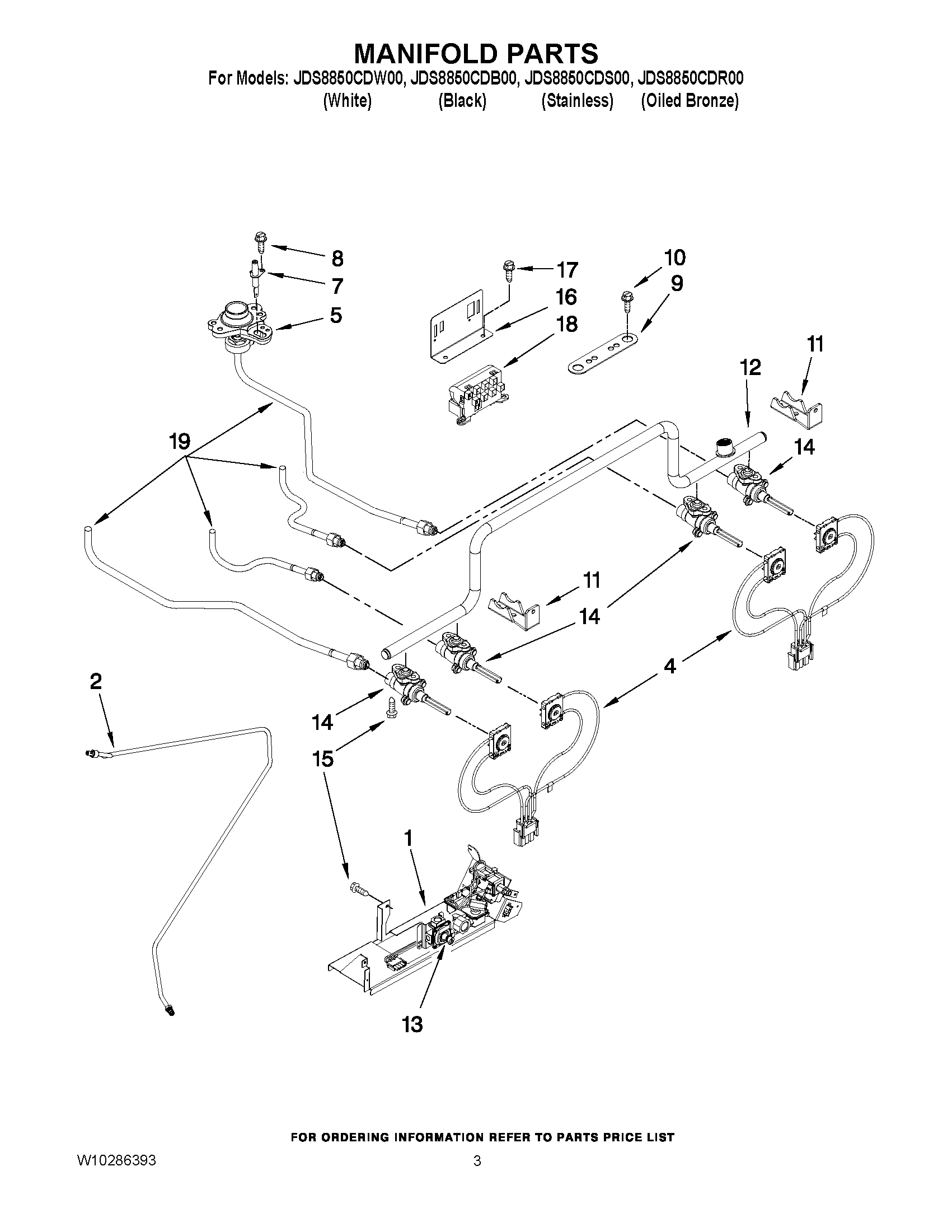

JDS8850CDS00 03 – MANIFOLD PARTSadmin2025-04-26T09:28:27+00:00JDS8850CDS00 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY W10258122 |
| 1 | COVER, BURNER BOX (DUAL RING) |
| 2 | MAY 7506P489-60 |
| 4 | HARNESS, VALVE (RF/RR) |
| 4 | HARNESS, VALVE (LF/LR) |
| 5 | HOLDER, ORIFICE (CTR) |
| 5 | HOLDER, ORIFICE (LR) |
| 5 | ORIFICE, HOLDER (DUAL BURNER, LF) |
| 5 | HOLDER, ORIFICE (LF, RR) |
| 7 | IGNITOR |
| 8 | MAY 7101P606-60 |
| 9 | MAY W10160530 |
| 10 | SCREW (10-24X5/16-NI) |
| 11 | MAY W10160655 |
| 12 | MAY 7513P473-60 |
| 13 | MAY 7510P101-60 |
| 14 | VALVE, TOP BURNER (LF (DUAL)) |
| 14 | MAY 7502P548-60 |
| 14 | VALVE, TOP BURNER (RR/LF 9.2K) |
| 14 | VALVE, TOP BURNER (LR 5K) |
| 15 | SCREW (8BX3/8-NI) |
| 16 | BRACKET |
| 17 | MAY 7101P426- 60 |
| 18 | MAY 7431P038-60 |
| 19 | MAY 7506P445-60 |
| 19 | MAY 7506P448-60 |
| 19 | MAY 7506P469-60 |
| 19 | MAY 7506P470-60 |
| 19 | MAY 7506P447-60 |
