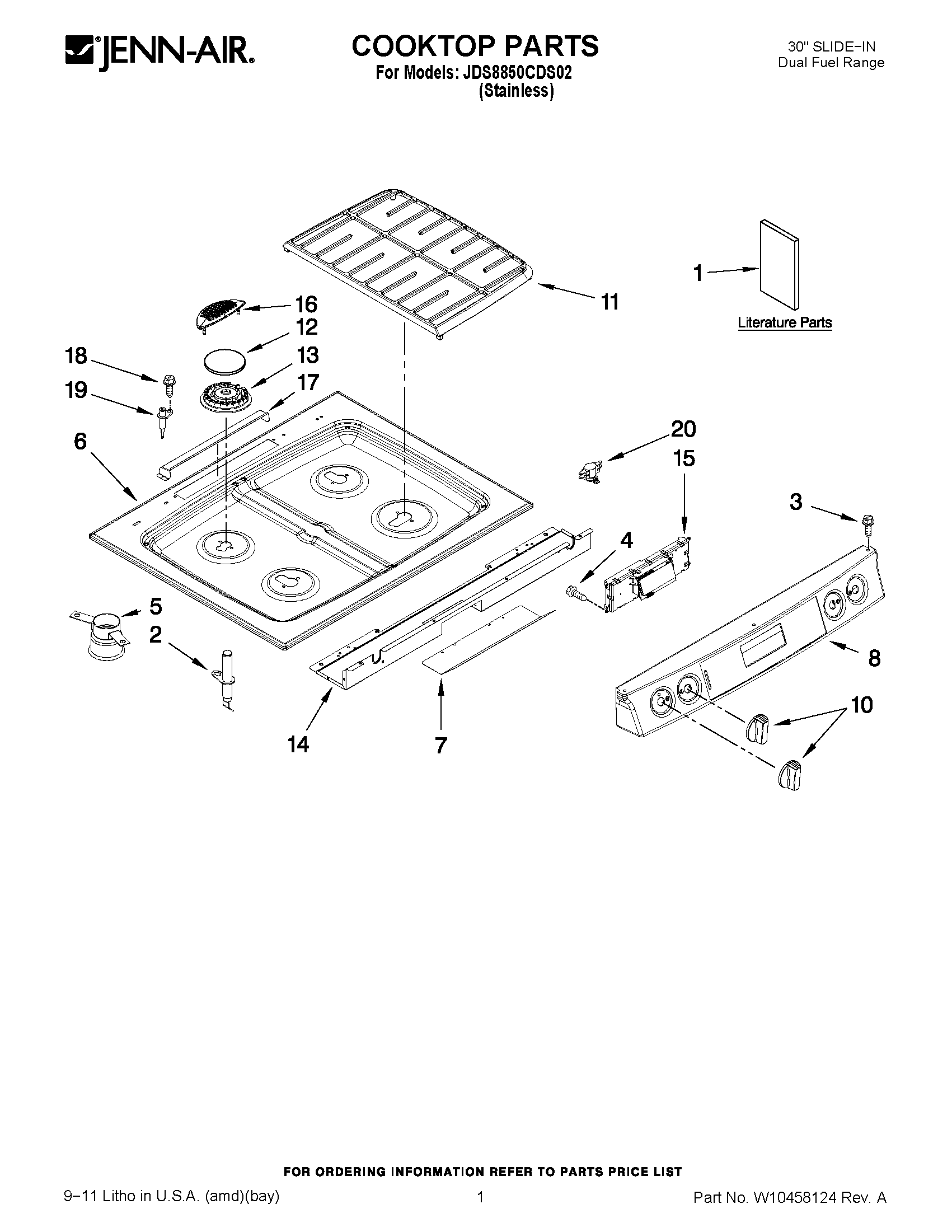

JDS8850CDS02 01 – COOKTOP PARTSadmin2025-04-26T09:29:55+00:00JDS8850CDS02 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY W10253460 |
| 1 | MAY W10235520 |
| 3 | MAY 7101P426- 60 |
| 4 | MAY 7101P676-60 |
| 5 | MAY W10233479 |
| 6 | MAY 2001D313-50 |
| 7 | SHIELD, CONTROL |
| 8 | MAY W10314414 |
| 10 | KNOB, VALVE (STAINLESS) |
| 11 | MAY 7518P358-60 |
| 12 | CAP, BURNER (DUAL INNER) |
| 12 | CAP, BURNER (CTR) |
| 12 | CAP, BURNER (DUAL OUTER) |
| 12 | CAP, BURNER (LF & RR) |
| 12 | CAP, BURNER (LR & RF) |
| 13 | BASE, BURNER (DUAL BURNER, LF) |
| 13 | HEAD, BURNER (LF & RR) |
| 13 | HEAD, BURNER (CTR) |
| 13 | HEAD, BURNER (LR & RF) |
| 14 | MAY 3807F751-51 |
| 15 | MAY 8507P230-60 |
| 16 | TRIM, VENT (BLACK) |
| 17 | COVER, CONVECTION |
| 18 | MAY 7101P606-60 |
| 19 | IGNITOR |
| 20 | THERMOSTAT, HI-LIMIT (LOWER) |
