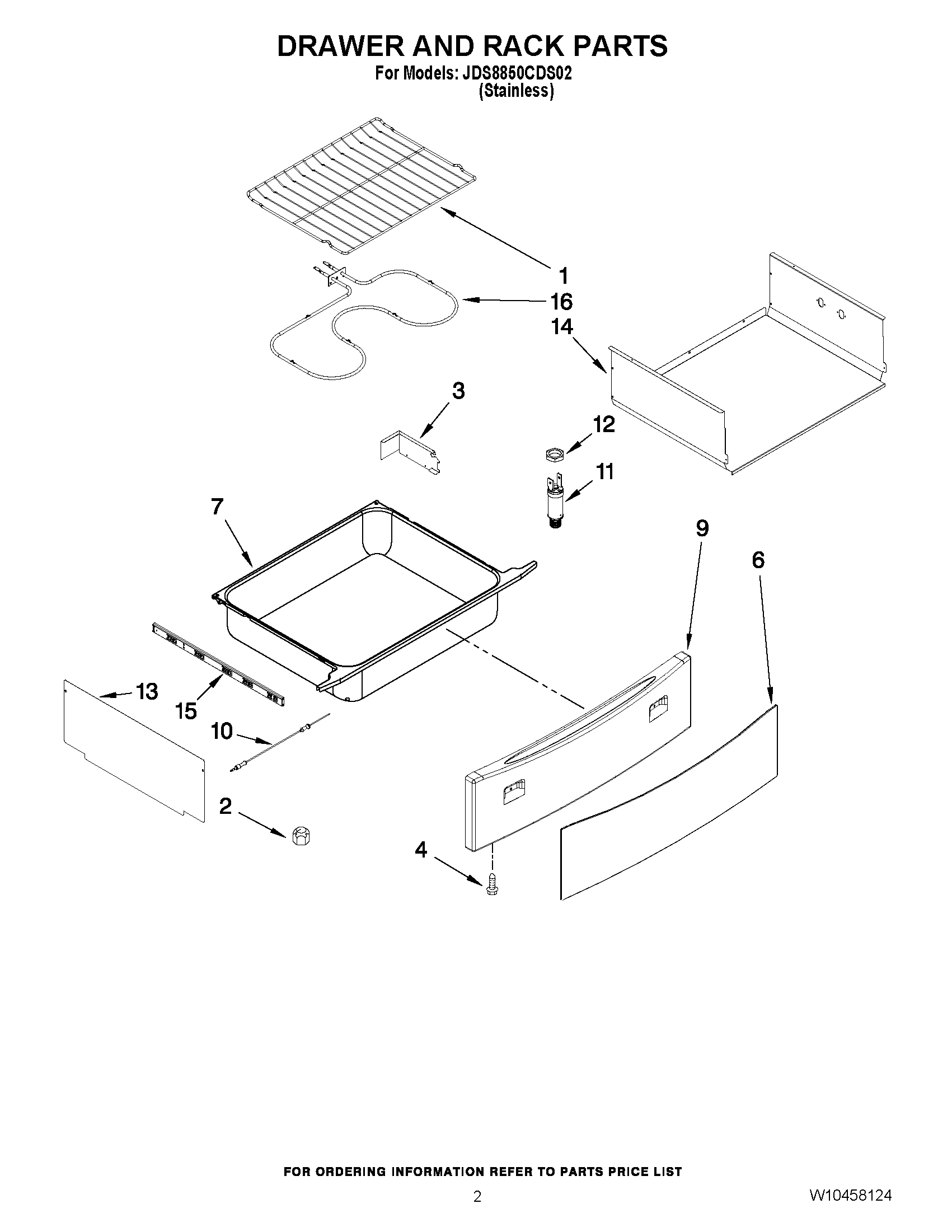

JDS8850CDS02 02 – DRAWER AND RACK PARTS

JDS8850CDS02 02 – DRAWER AND RACK PARTS

Written by

in

JDS8850CDS02 02 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK, OVEN (2)
2WPW10131078 Whirlpool Nut Assembly
3MAY 3604F434-51
4Screw (Black) (2)
6GLASS, DRAWER (STAINLESS)
7DRAWER, WARMING
9PANEL, DRAWER (BLACK)
10MAY 7430P038-60
11MAY 7408P086-60
12NUT
13MAY 3604F416-51
14BODY, WARM DRAWER
15MAY W10293200
16MAY W10310262
