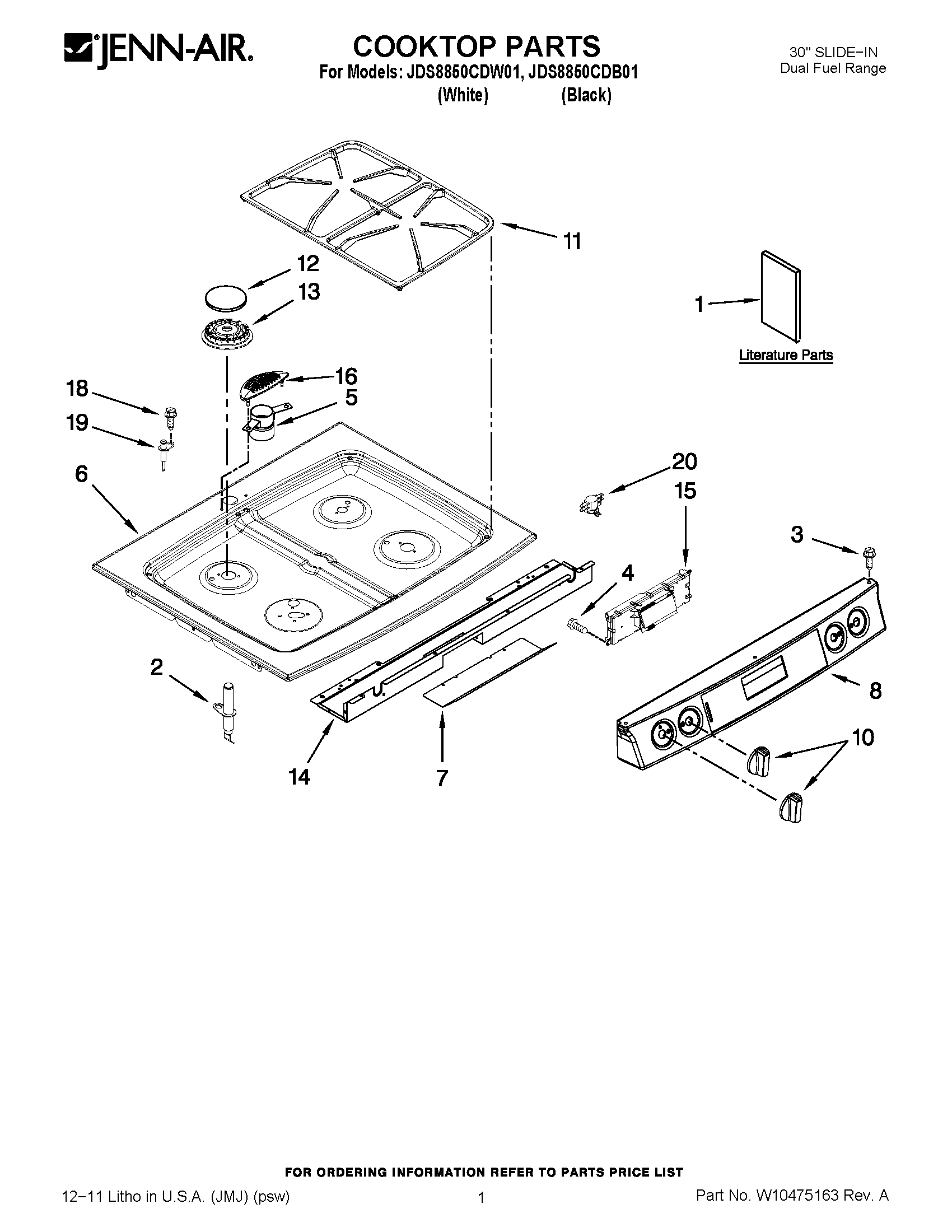

JDS8850CDW01 01 – COOKTOP PARTS

JDS8850CDW01 01 – COOKTOP PARTS

Written by

in

JDS8850CDW01 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10235520
1MAY W10253460
1TIPS, SAFE COOKING (FRENCH)
2MAY 7432P138-60
3MAY 7101P426- 60
4MAY 7101P676-60
5MAY W10233479
6MAY W10202589
6COOKTOP (WHITE)
7SHIELD, CONTROL
8MAY W10235331
8MAY W10235330
10KNOB, VALVE (4)
10KNOB, VALVE (WHITE)
11MAY 7518P358-60
12CAP, BURNER (DUAL OUTER)
12CAP, BURNER (DUAL INNER)
12CAP, BURNER (CTR)
12CAP, BURNER (LF & RR)
12CAP, BURNER (LR & RF)
13HEAD, BURNER (LF & RR)
13HEAD, BURNER (LR & RF)
13BASE, BURNER (DUAL BURNER, LF)
13HEAD, BURNER (CTR)
14MAY 3807F751-51
15MAY 8507P230-60
16MAY 7744P467-60
16TRIM, VENT (BLACK)
18MAY 7101P606-60
19IGNITOR
20THERMOSTAT, HI-LIMIT (LOWER)
