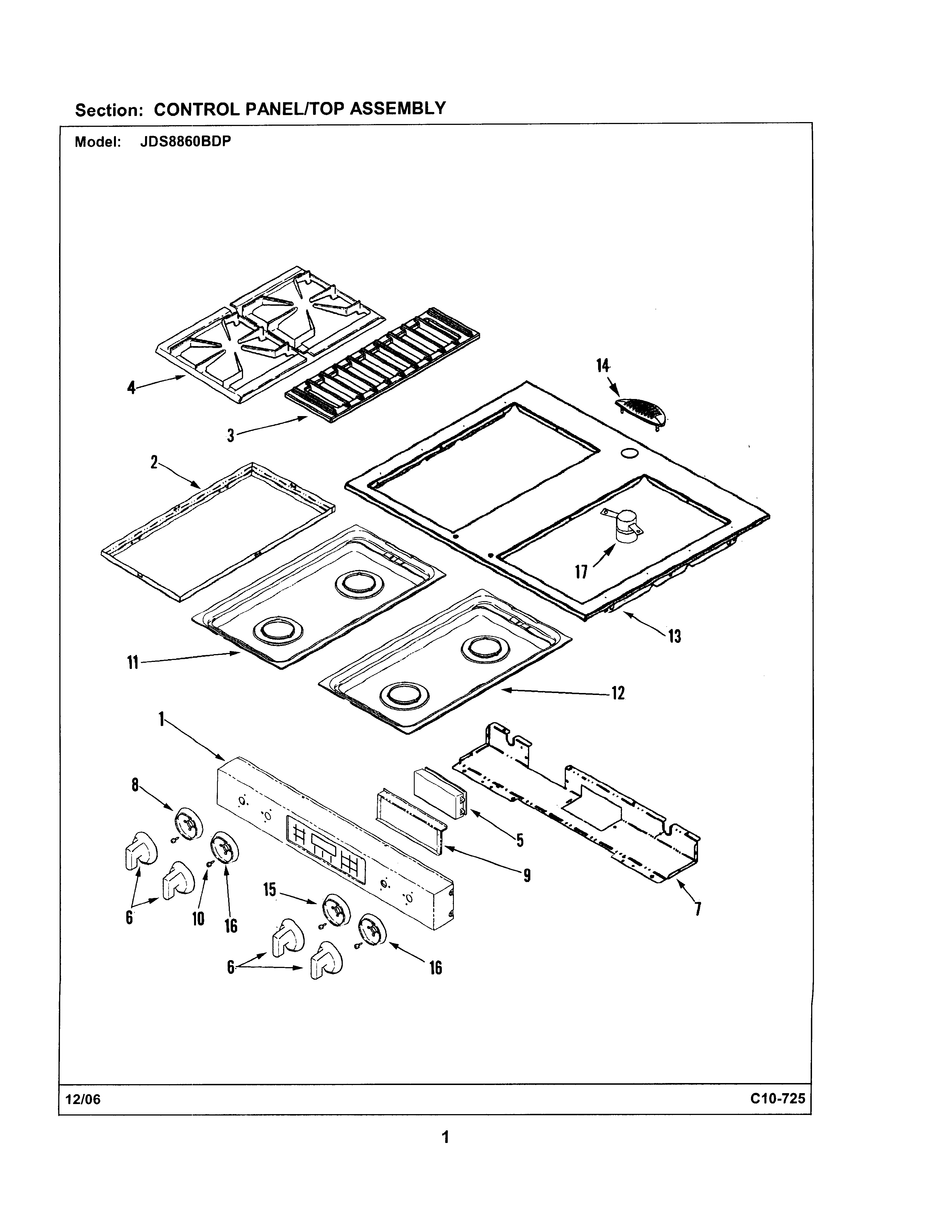

JDS8860BDP 01 – CONTROL PANEL / TOP ASSEMBLY

Products

Position	Product
NI	SCREW (8BX3/8-NI)
NI	SCREW
NI	WP90767 Whirlpool Screw
NI	WP59002061 Whirlpool Microwave Screw
NI	MAY 74011524
1	WP5760M339-60 Whirlpool Control Panel
2	MAY 74011863
3	MAY 74011862
4	MAY 74011694
5	CONTROL, (ERC)
6	WPW10175695 Whirlpool Burner Knob
7	MAY 74011688
8	74011689 Whirlpool Oven Dual Bezel Knob
9	MAY 74011525
10	SCREW (10ABX1/4P TR ZN)
11	MAY 74011693
12	MAY 74009620
13	MAY 7746P125-60
14	MAY 74011632
15	MAY 74011690
16	MAY 74011691
17	TUBE, VENT (UPR)
