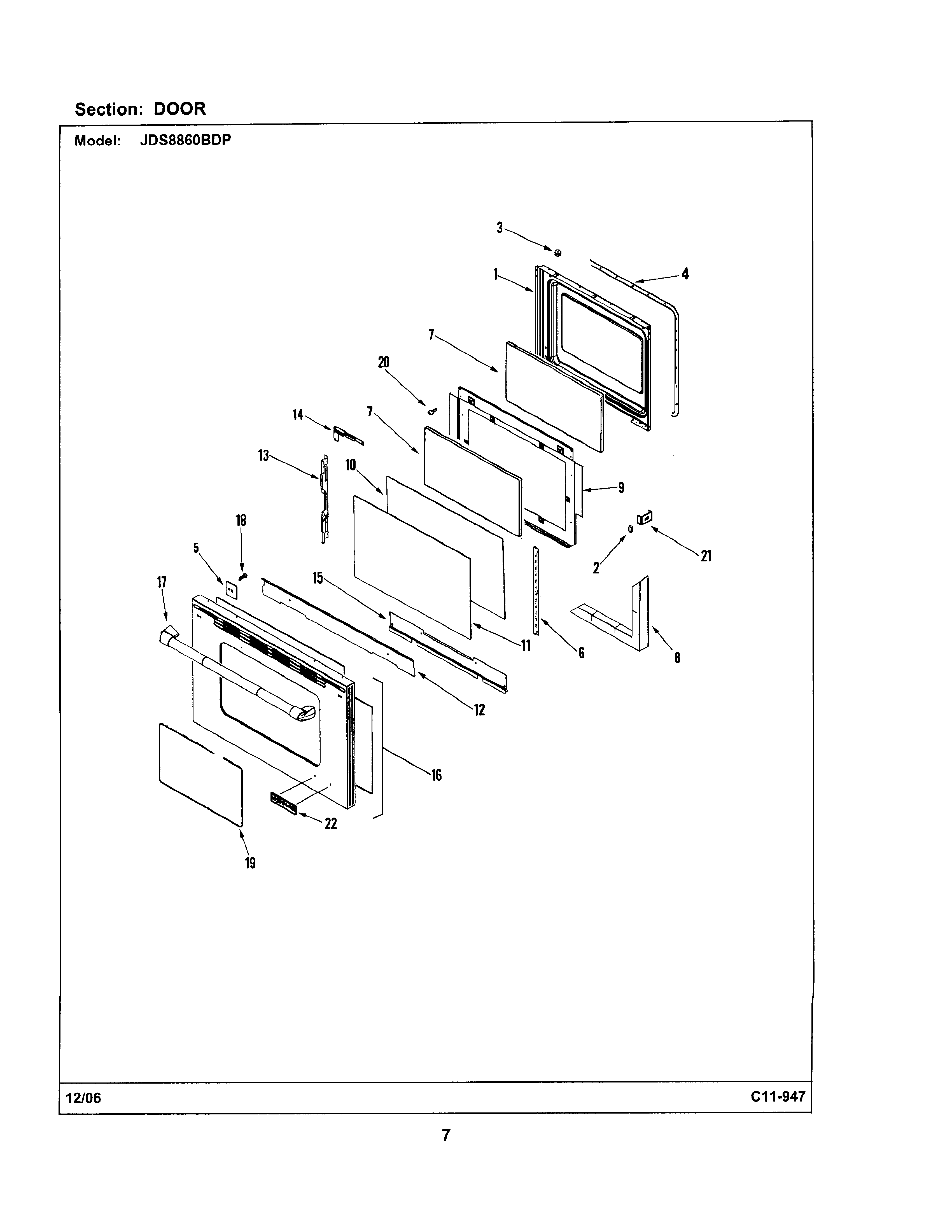

JDS8860BDP 04 – DOOR

Products

Position	Product
NI	MAY 74011797
NI	7103P166-60 Whirlpool Nut
NI	Insulation, Foil
NI	INSULATION, FOIL
1	LINING, DOOR
2	WP74004224 Whirlpool Tape
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74010785
6	3801F886-51 Whirlpool Mounting Bracket
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	3601F373-51 Whirlpool Baffle
10	GLASS, DOOR (INNER/COATED)
11	GLASS, DOOR
12	MAY 74011049
13	RETAINER, GLASS SUPPORT
14	MAY 74011463
15	MAY 74011464
16	MAY 74011536
17	WP7701P475-60 Whirlpool Door Handle
18	MAY 74011751
19	74008916 Whirlpool Window Gasket
20	WP90767 Whirlpool Screw
21	CLIP, DOOR
22	MAY 74006889
