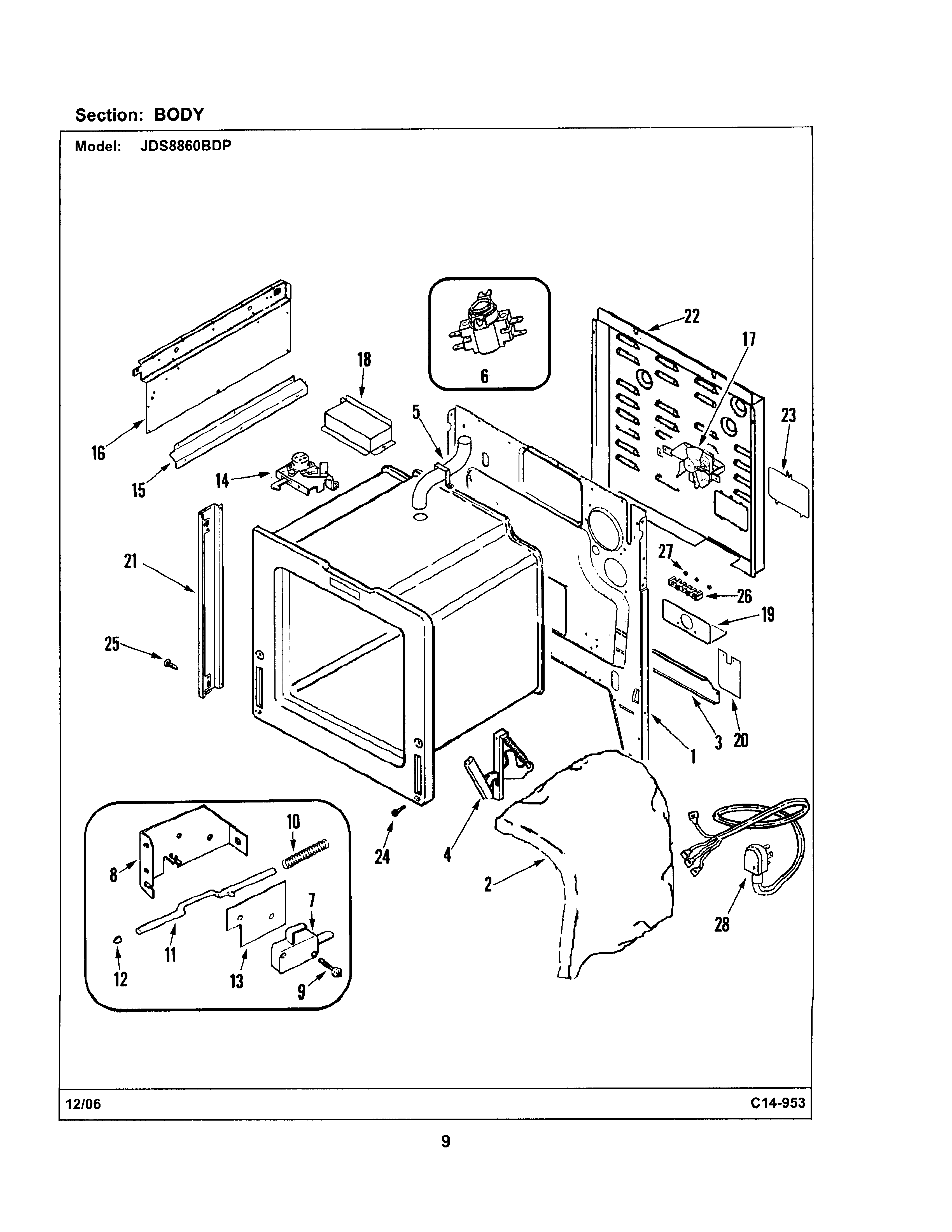

JDS8860BDP 05 – BODY

Products

Position	Product
NI	2618F206-51 Whirlpool Panel
NI	MAY 74010817
1	BACK, MAIN
2	INSULATION, WRAPPER
3	EXTENSION, MAIN BACK
4	74011475 Whirlpool Range Oven Door Hinge Assembly
5	TUBE, VENT
6	74008265 Whirlpool Oven High Limit Thermostat
7	WP74008263 Whirlpool Door Switch
8	BRACKET, SWITCH ACTUATOR
9	MAY 22002368
11	SWTCH-LITE
11	ROD, DOOR LIGHT SWITCH
12	MAY 74001631
13	MAY 74008264
14	74010819 Whirlpool Latch Assembly
15	EXTENSION, HEAT SHEILD
16	PANEL, SHIELD (LT)
17	WPW10586440 Whirlpool Blower Fan
18	COVER, DOOR LATCH
19	MAY 74011488
20	INSULATOR, POWER CORD
21	CABINET (NOT A SERVICEABLE PART)
22	4005F810-51 Whirlpool Access Cover
23	COVER, TERMINAL BLOCK
24	WP4159193 Whirlpool Screw
25	WP74003976 Whirlpool Screw
26	WPW10245259 Whirlpool Terminal Block
27	WP7103P027-60 Whirlpool Nut
28	MAY 74011522
