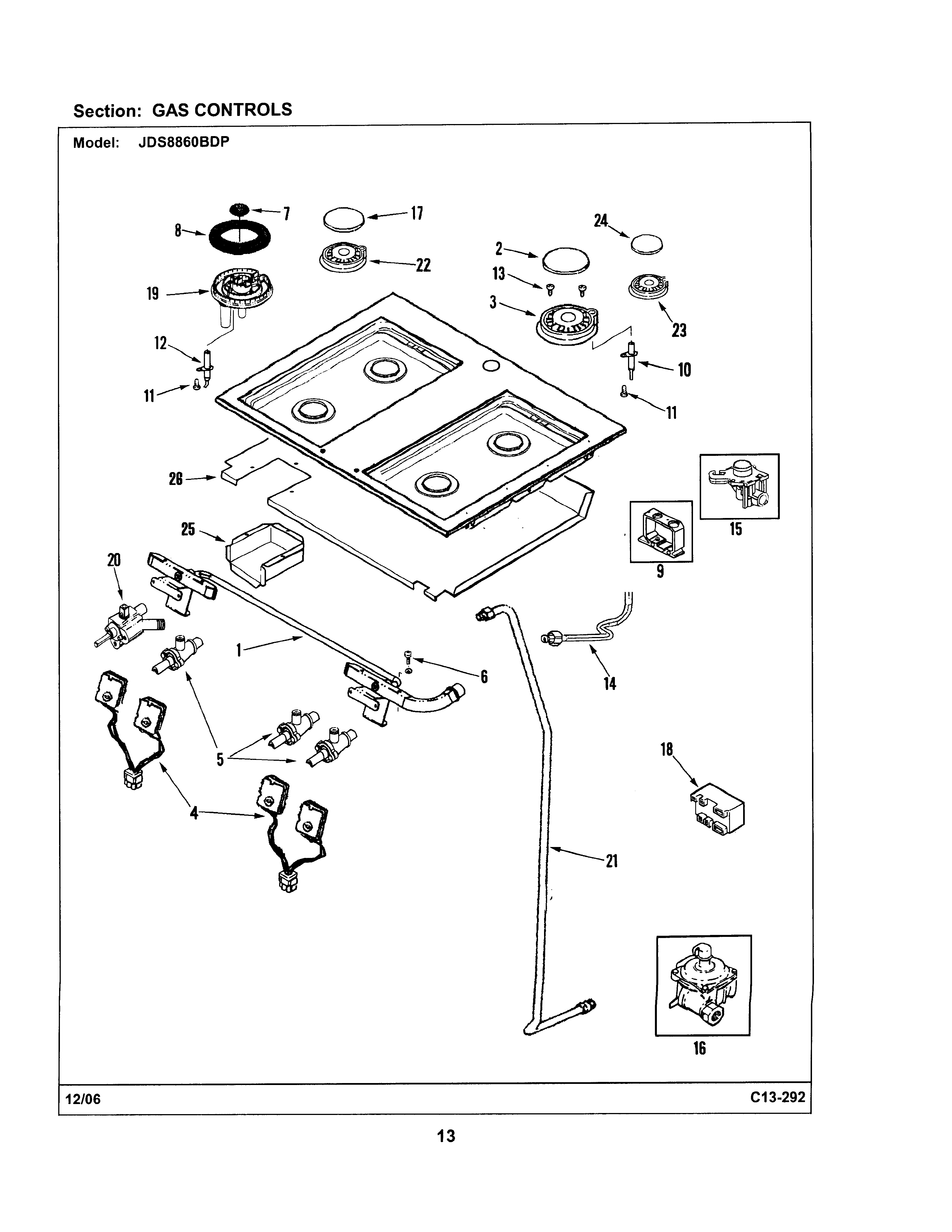

JDS8860BDP 07 – GAS CONTROLS

Products

Position	Product
NI	WP7527P004-60 Whirlpool Orifice Holder
NI	MAY 74011867
NI	VALVE (LR/RR/RF)
NI	MAY 74009452
NI	MAY 74011654
NI	74009553 Whirlpool Orifice Holder
NI	MAY 74011655
NI	WP74011648 Whirlpool Harsh Switch
NI	MAY 74011656
NI	SWITCH, REIGNITION (RF/RR)
NI	MAY 74011657
1	MAY 74011528
1	PIPE, MANIFOLD
2	CAP, BURNER (EX-LRG/BLK)
3	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
4	WP74008212 Whirlpool Seal Switch
4	SWITCH, REIGNITION (LF/LR)
4	WP74011647 Whirlpool HAR Switch
5	VALVE (CENTER 5K (1))
5	VALVE ((LF))
5	MAY 74009451
6	MAY 74009416
7	MAY 74011650
8	MAY 74011651
9	WP7527P061-60 Whirlpool Orifice Holder
10	WP74009336 Whirlpool Oven Top Igniter
11	WP8273062 Whirlpool Screw
12	WP74011829 Whirlpool Burner Igniter Dual
13	WP400021-1 Whirlpool Screw
14	MAY 74011653
15	WP7527P002-60 Whirlpool Orifice Holder
16	MAY 74011871
17	Cap, Burner (12.5K RF, LR)
18	WPW10475147 Whirlpool Spark Module
19	CAP, BURNER (DUAL INNER)
20	WP74011649 Whirlpool Burner Valve
21	MAY 74011658
21	MAY W10184413
22	74007735 Whirlpool Burner Assembly
23	74007734 Whirlpool Burner Assembly
24	WP8284669 Whirlpool Burner Cap
25	MAY 8403P031-60
26	MAY 4011F496-50
