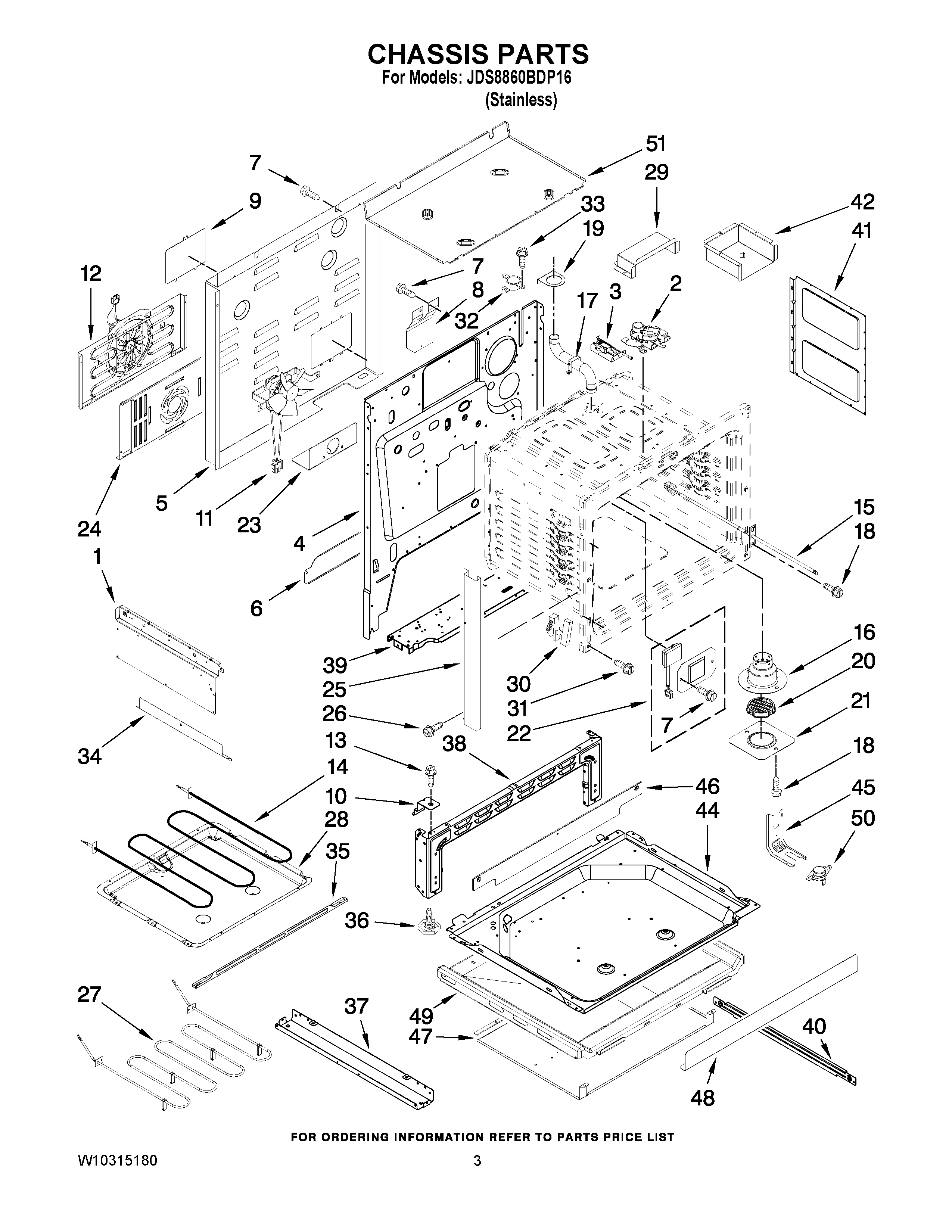

JDS8860BDP16 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P445-60
NI	INSULATION, DRAWER & SHIELD
NI	MAY 7002P471-60
NI	INSULATION, OVEN BOTTOM
NI	INSULATION, HIDDEN BAKE COVER
1	MAY 2618F201-51
1	MAY 2618F206-51
2	MAY 8002P089-60
3	ASSY., LIGHT SW
4	BACK, MAIN
5	COVER, MAIN WIRE
6	MAY 3826F066-51
8	MAY 7003P101-60
9	COVER, TERMINAL
10	SUPPORT, OVEN BTM.
11	MAY 7427P094-60
12	MAY W10213813
14	MAY 7406P430-60
15	MAY 7430P042-60
16	MAY 8026P096-60
17	TUBE, VENT MIDDLE
19	MAY 3605F345-51
20	SCREEN, SMOKE ELM.
21	MAY 3605F354-45
22	MAY 7407P180-60
23	MAY 3801F911-51
24	MAY W10186795
25	TRIM, SIDE (BLACK (2))
26	MAY 7101P500-60
27	MAY 7406P411-60
28	PAN, BAKE
29	COVER, DOOR LATCH
30	Hinge, Door (2)
31	SCREW (10-24X5/16-NI)
32	MAY 7403P647-60
33	MAY 7101P426- 60
34	MAY 3826F064-51
35	SUPPORT, BROIL ELEMENT
36	LEG, LEVELING
37	MAY 4020W035-80
38	PEDESTAL, FRONT
39	SUPPORT
40	MAY 8016P023-60
41	INSULATION
42	MAY 4005F808-51
44	MAY 3804F231-51
45	BRACKET, ANTI-TIP
46	TRIM, FRONT FRAME
47	SHIELD, WARM. DWR.
48	MAY 4005F749-45
49	MAY 2205F060-19
50	MAY 7403P657-60
51	MAY 4011F496-51
