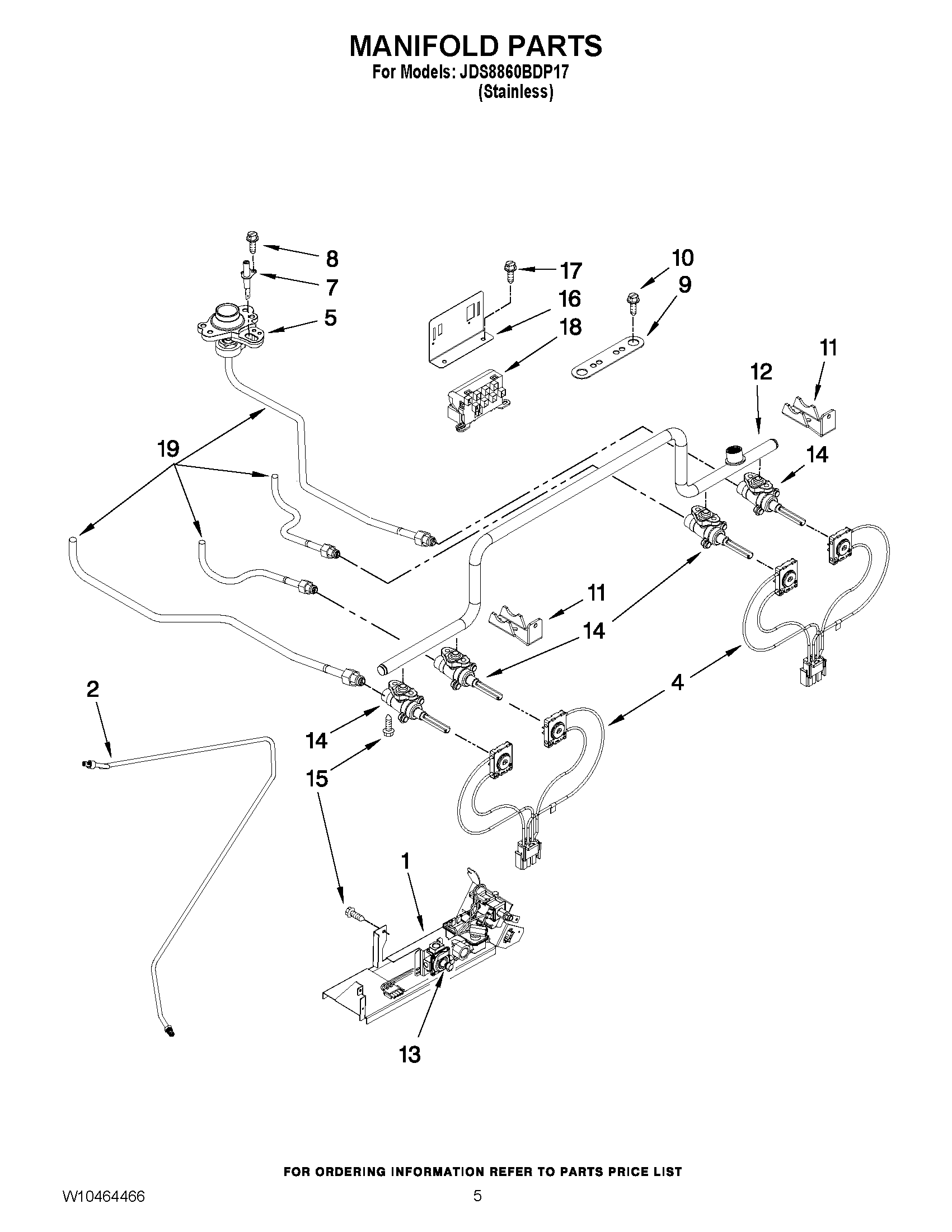

JDS8860BDP17 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 7507P419-60
1	MAY 4005F808-51
2	MAY W10224720
4	SWITCH, REIGNITION (RF/RR)
4	SWITCH, REIGNITION (LF/LR)
5	ORIFICE, HOLDER (DUAL BURNER, LF)
5	HOLDER, ORIFICE (LF, RR)
5	HOLDER, ORIFICE (CTR)
5	HOLDER, ORIFICE (LR)
7	IGNITOR
8	MAY 7101P606-60
9	MAY W10160530
10	SCREW (10-24X5/16-NI)
11	MAY W10160655
12	PIPE, MANIFOLD
13	MAY 7510P101-60
14	VALVE (CENTER 5K (1))
14	VALVE ((LF))
14	MAY 7502P533-60
14	VALVE (LR/RR/RF)
15	SCREW (8BX3/8-NI)
16	BRACKET
17	MAY 7101P426- 60
18	MAY 7431P038-60
19	MAY 7506P457-60
19	MAY 7506P459-60
19	MAY 7506P460-60
19	MAY 7506P461-60
19	MAY 7506P458-60
