JDS8860BDP17 05 – DRAWER AND RACK PARTS

JDS8860BDP17 05 – DRAWER AND RACK PARTS

Written by

in

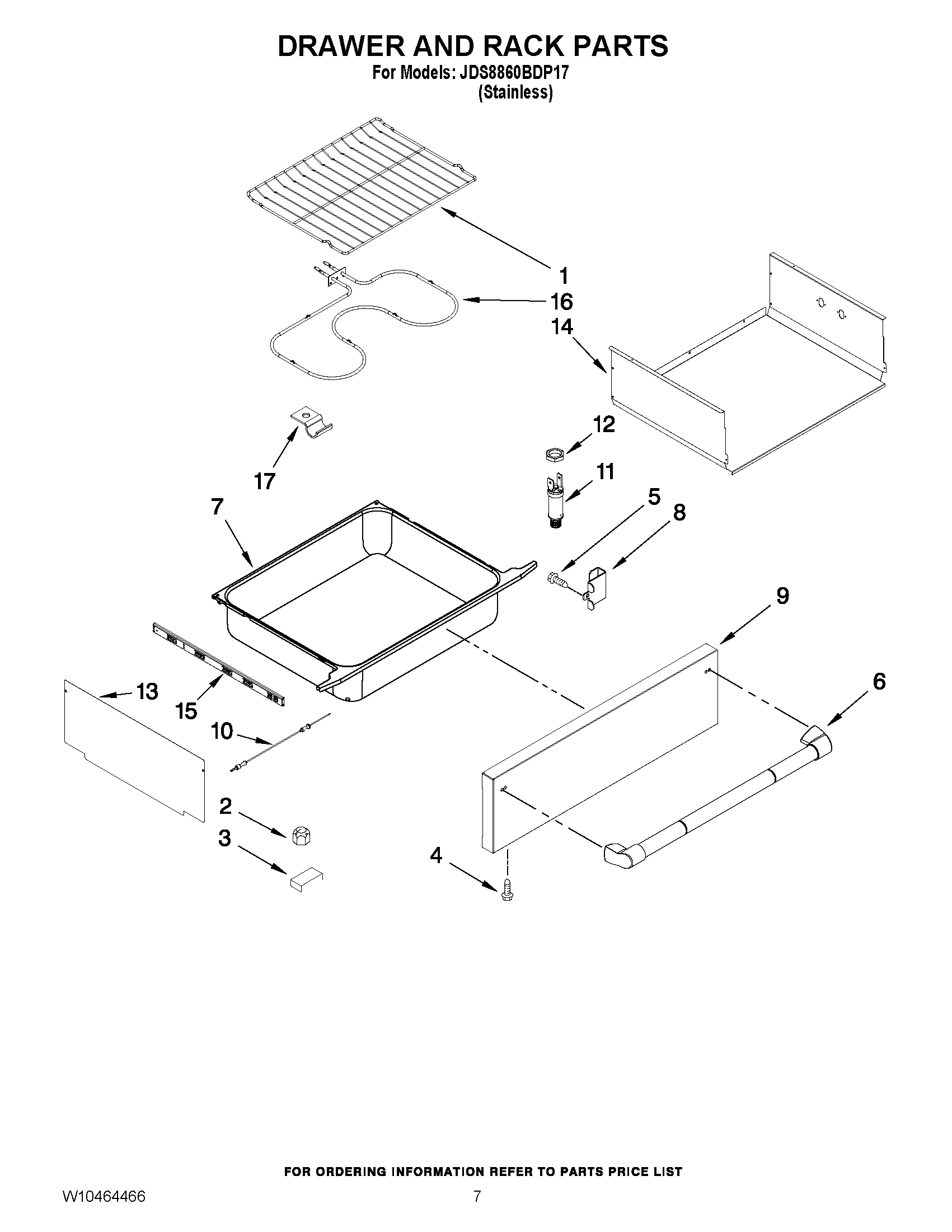

JDS8860BDP17 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	RACK, OVEN (2)
2	WPW10131078 Whirlpool Nut Assembly
3	MAY 8010P130-60
4	Screw (Black) (2)
5	MAY 7101P376-60
6	MAY 7701P475-60
7	DRAWER, WARMING
8	MAY 3801F887-51
9	MAY W10253207
10	MAY 7430P038-60
11	MAY 7408P086-60
12	NUT
13	MAY 3604F435-51
14	BODY, WARM DRAWER
15	MAY W10293200
16	MAY W10310262
17	MAY 7112P153-60
