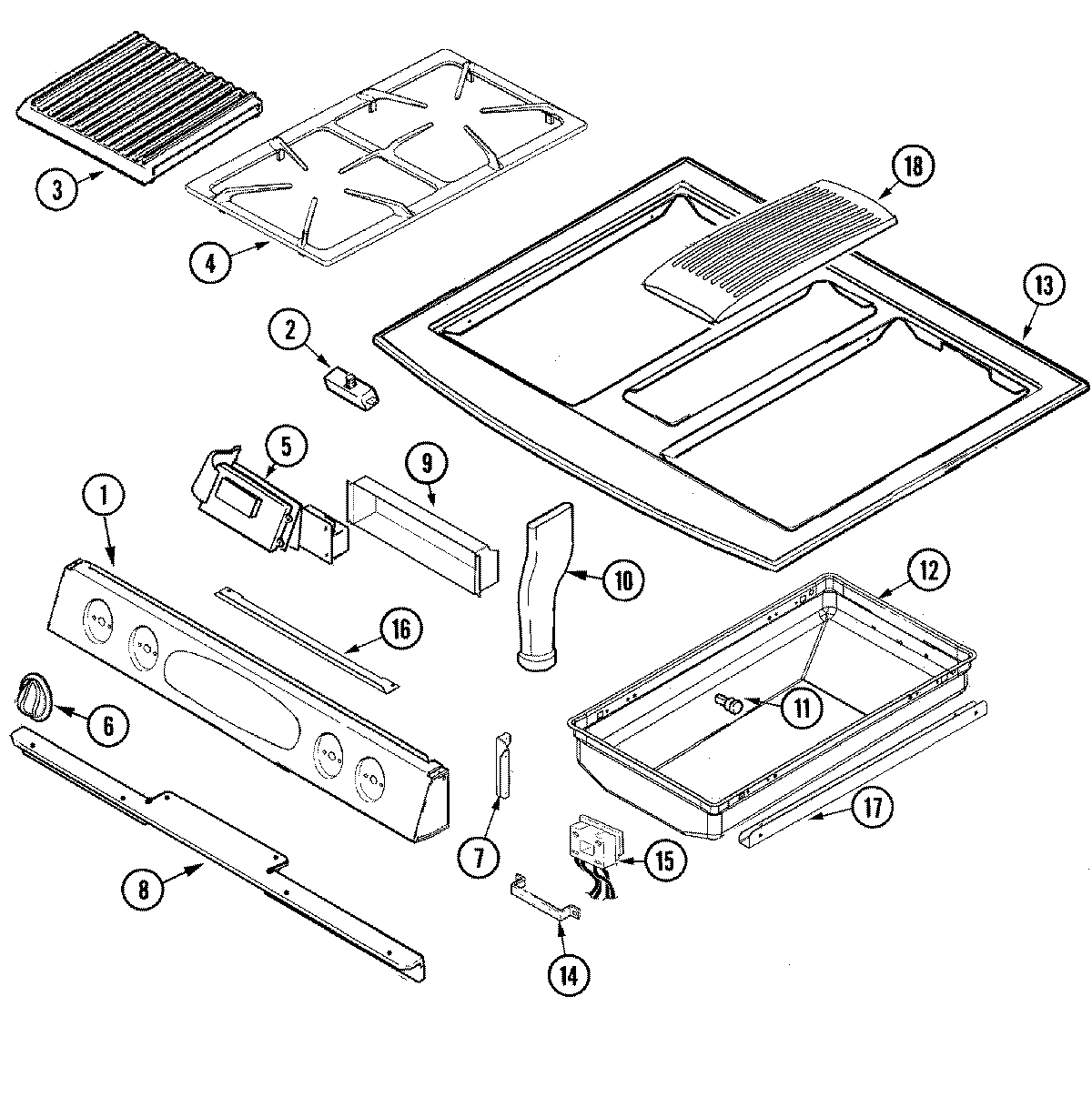

JDS9860AAB 03 – CONTROL PANEL/TOP ASSEMBLY

JDS9860AAB 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JDS9860AAB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1WP74005750 Whirlpool Control Panel
2MAY 74006095
2WP7450P012-60 Whirlpool Burner Top
3MAY 71003267
4WP7518P483-60 Whirlpool Burner Grate
5MAY 74006363
5MAY 74006101
5MAY 74006074
5MAY 74005924
5MAY 74005873
5MAY 74009294
5MAY 74006100
5MAY 74009298
5MAY 74009612
5MAY 74009318
5MAY 74010230
5MAY 74011567
5MAY 74006102
6MAY 74006059
7MAY 74005729
7SCREW (8ABX1/2“-BLK)
8SCREW (8BX3/8-NI)
8MAY 74005756
9MAY 74005755
9SCREW
10MAY 74005808
1171001764 Whirlpool Locator PIN
11MAY Y704553
12MAY 74006089
12MAY 74006090
13MAY 74005818
14MAY 74006093
15MAY 74006092
15MAY 74006091
16MAY 74005877
17MAY 74005817
17W10828565 Whirlpool Screw
18MAY 74006061
20MAY 74005475
20MAY 16008409
20MAY 74005522
