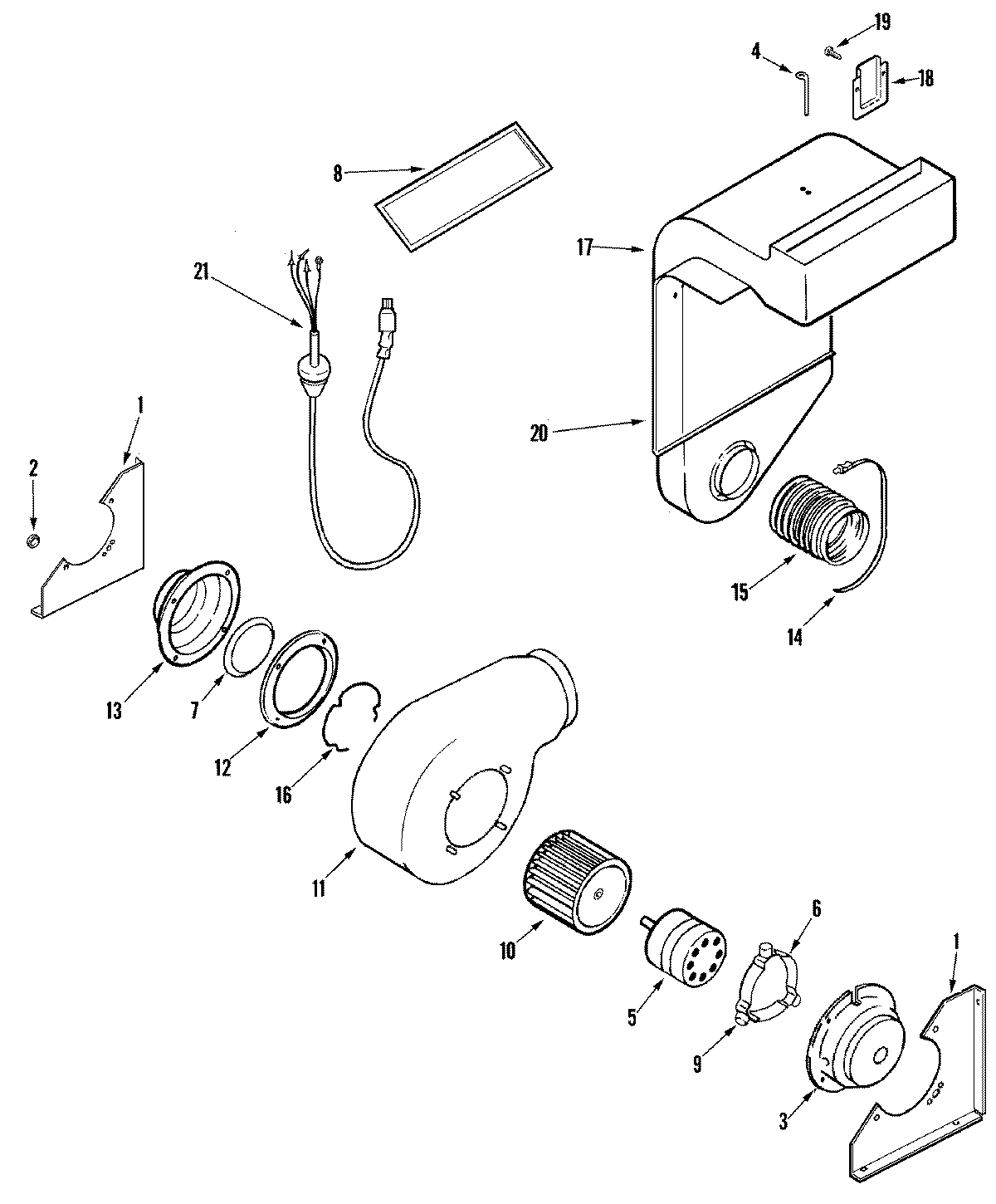

JDS9860AAP 01 – BLOWER ASSEMBLY (PLENUM-AAP)

Products

Position	Product
1	WP3801F631-51 Whirlpool Mounting Bracket
2	WPY707702 Whirlpool Locknut
3	MAY Y04100336
3	MAY 71002107
4	MAY 71002113
5	MAY Y715957
5	WPW10201322 Whirlpool Blower Motor
6	MAY Y707393
7	MAY Y704761
8	WP71002111 Whirlpool Grease Filter
9	MAY Y708926
9	WP4159193 Whirlpool Screw
9	WP7103P027-60 Whirlpool Nut
10	WPY707985 Whirlpool Wheel Assembly
11	MAY 712008
12	MAY Y704758
13	MAY Y702296
14	MAY Y702331
15	MAY Y702326
16	8038P003-60 Whirlpool Retainer
17	MAY 74006084
17	MAY Y700556
18	MAY Y702475
20	2801L037-80 Whirlpool Plenum
21	WP7402P104-60 Whirlpool Power Cord
