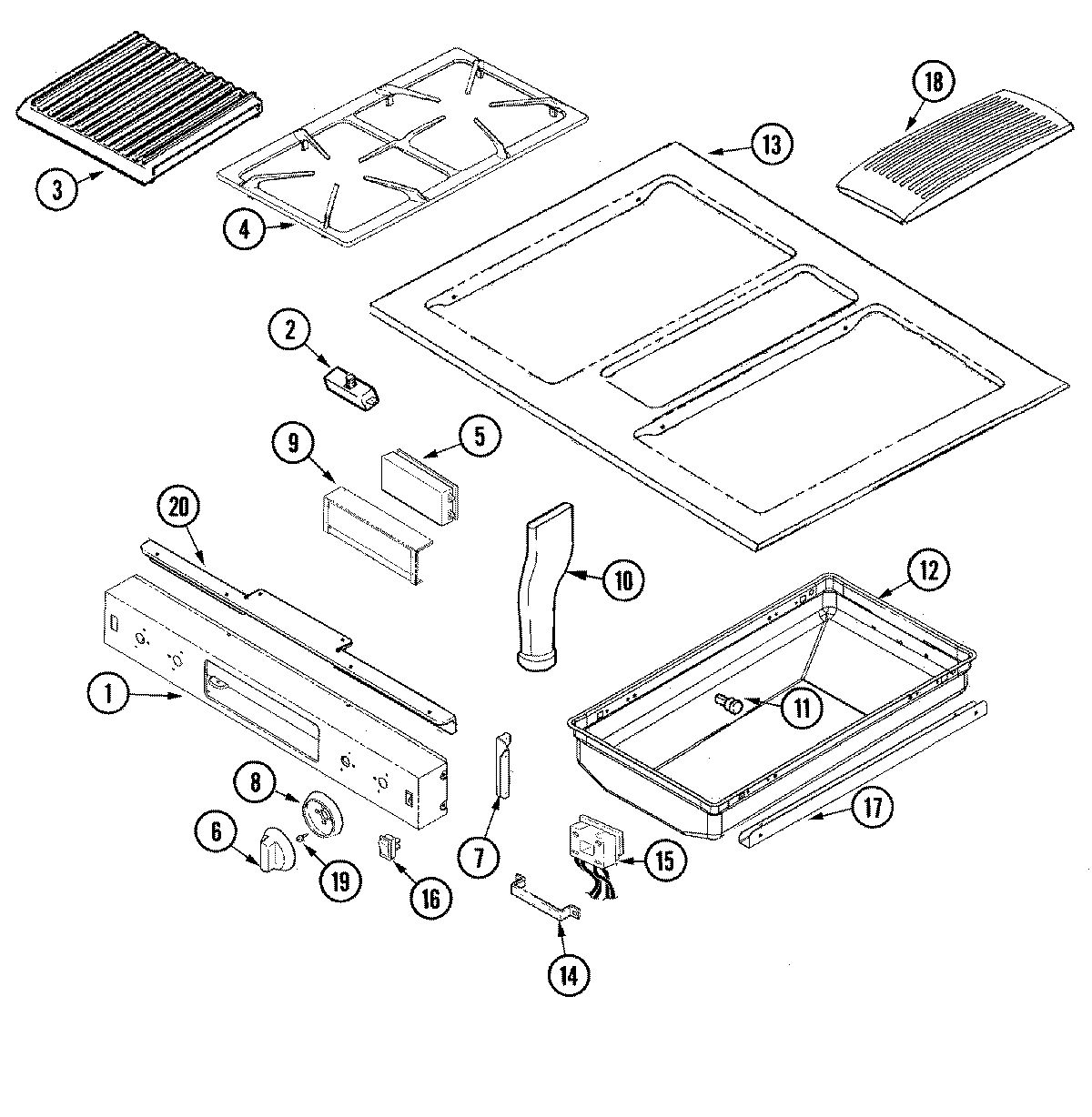

JDS9860AAP 03 – CONTROL PANEL/TOP ASSEMBLY (AAP)

Products

Position	Product
1	MAY 74007082
1	MAY 74006132
1	MAY 74006889
1	MAY Y04100737
2	WP7450P012-60 Whirlpool Burner Top
2	MAY 74006095
3	MAY 74009441
3	MAY 71003267
4	WP7518P483-60 Whirlpool Burner Grate
5	MAY 74006331
5	MAY 74009314
5	MAY 74011219
5	WP74003482 Whirlpool Auxiliary Relay
5	MAY 74009297
5	MAY 74006128
5	WP5760M301-60 Whirlpool Electronic Control Board
5	MAY 74007250
5	MAY 74006133
6	WP71001057 Whirlpool Control Knob
7	SCREW (8ABX1/2“-BLK)
7	MAY 74005729
8	MAY 71001056
9	MAY 74006129
10	MAY 74005808
11	71001764 Whirlpool Locator PIN
11	MAY Y704553
12	MAY Y704977
12	MAY Y704947
12	MAY 74006089
12	MAY 74006090
13	MAY 74009641
13	MAY 74006136
14	WP489128 Whirlpool Refrigerator Screw
14	MAY 74006093
15	MAY 74006092
15	MAY 74006091
16	WP3147265 Whirlpool Rocker Switch
16	MAY Y704311
17	W10828565 Whirlpool Screw
17	MAY 74005817
18	MAY 74006061
20	SCREW (8BX3/8-NI)
20	MAY 74005756
