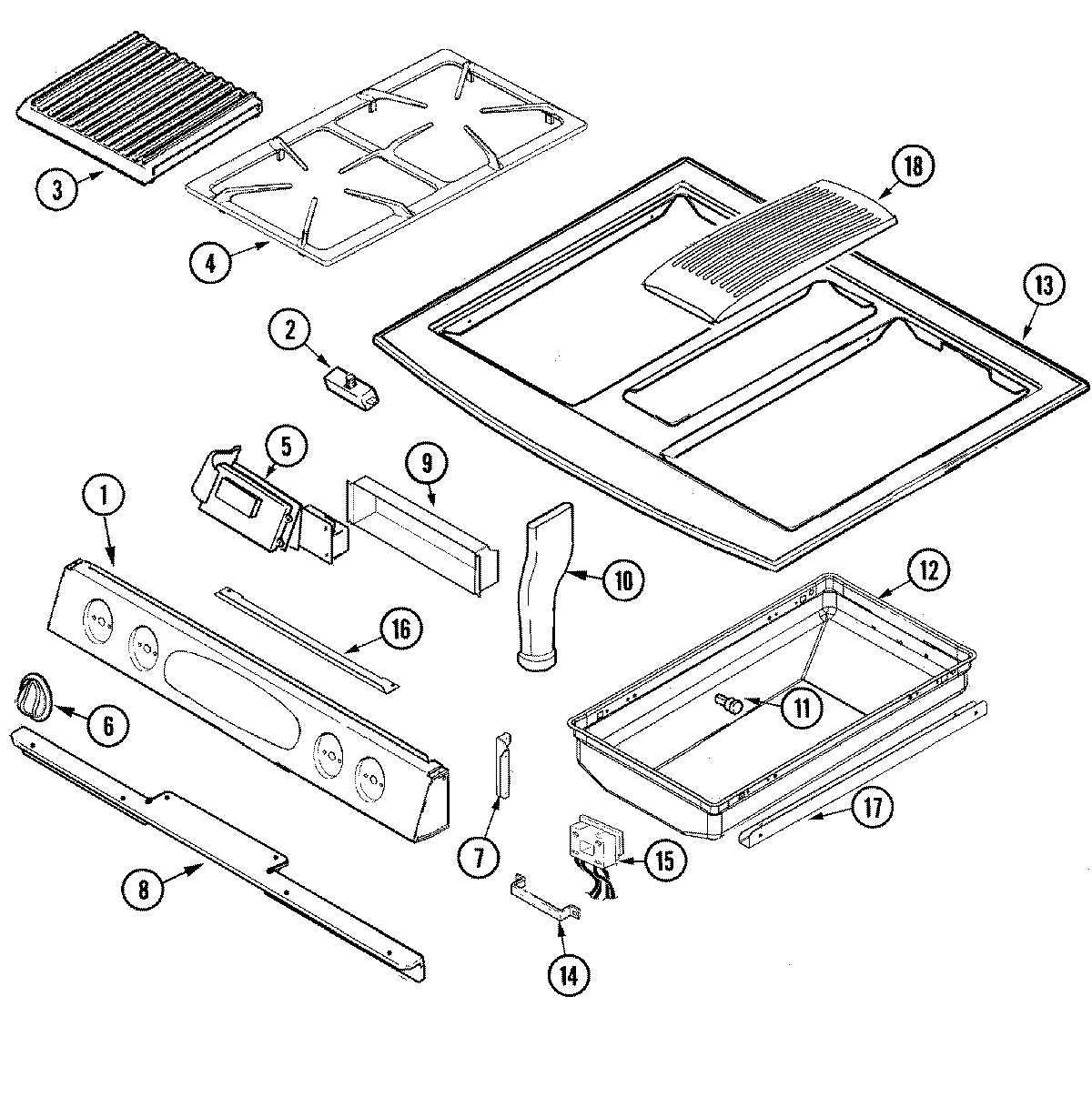

JDS9860AAW 03 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
JDS9860AAW 03 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74005751
2
MAY 74006095
2
WP7450P012-60 Whirlpool Burner Top
3
MAY 71003267
4
MAY 74005899
5
MAY 74009294
5
MAY 74006363
5
MAY 74006101
5
MAY 74006074
5
MAY 74005924
5
MAY 74005873
5
MAY 74009298
5
MAY 74006100
5
MAY 74009318
5
MAY 74009612
5
MAY 74010230
5
MAY 74011567
5
MAY 74006102
6
MAY 74006058
7
MAY 74005729
7
SCREW (8ABX1/2“-BLK)
8
SCREW (8BX3/8-NI)
8
MAY 74005756
9
MAY 74005755
9
SCREW
10
MAY 74005808
11
MAY Y704553
11
71001764 Whirlpool Locator PIN
12
MAY 74006089
12
MAY 74006090
13
MAY 74005819
14
MAY 74006093
15
MAY 74006092
15
MAY 74006091
16
MAY 74005877
17
MAY 74005817
17
W10828565 Whirlpool Screw
18
MAY 74006060
20
MAY 74005475
20
MAY 74005522
20
MAY 16008409
←
