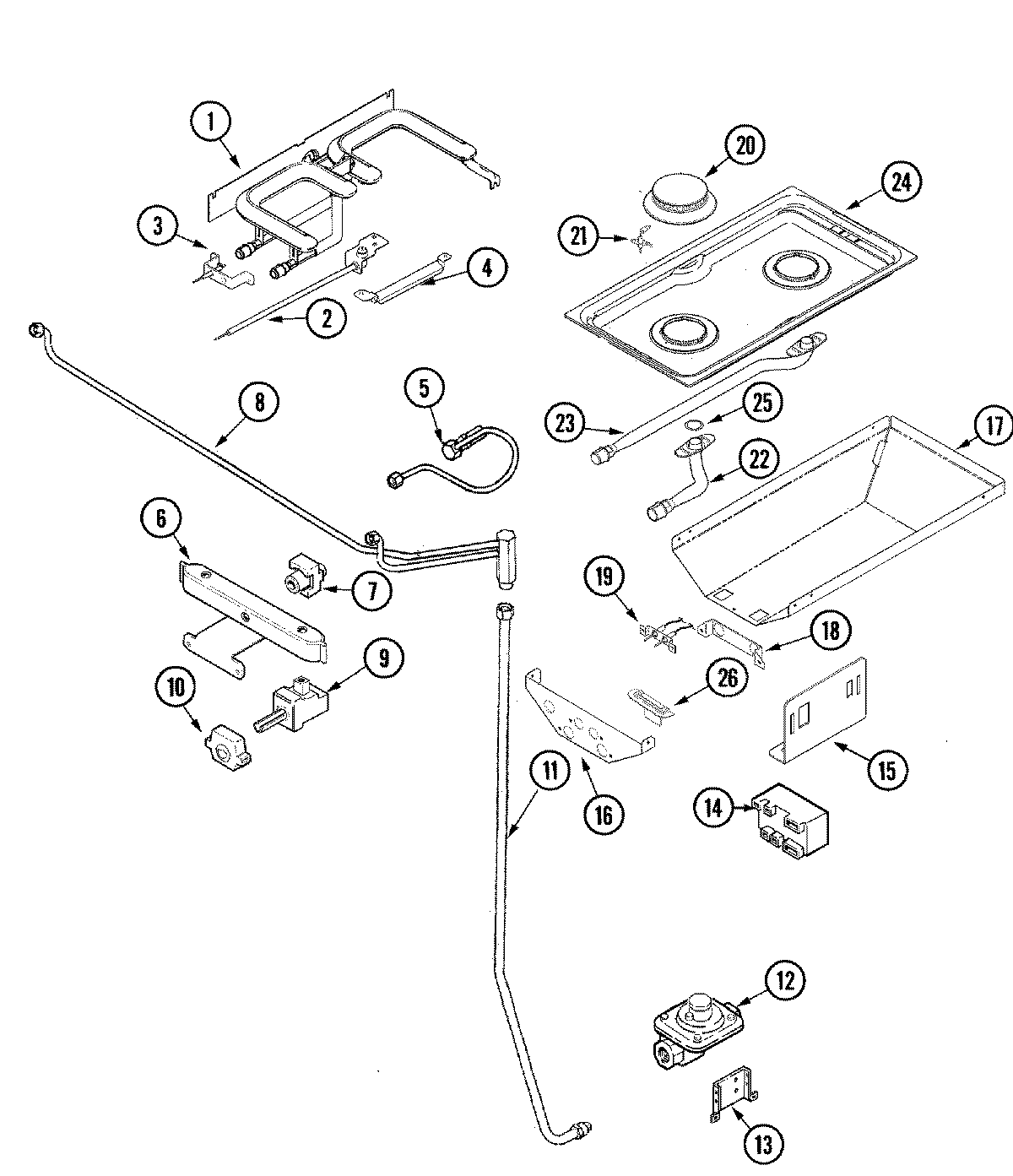

JDS9860ACB 05 – GAS CONTROLS

Products

Position	Product
1	WP74006070 Whirlpool Burner Grille
2	WP74006072 Whirlpool Spark Electrode
3	WP74006073 Whirlpool Oven Igniter
4	MAY 74006071
5	MAY 74006085
5	MAY 74006088
5	MAY 74006086
5	MAY 74006087
6	MAY 74006023
7	MAY 74004299
7	MAY 74006069
8	MAY 74006063
9	MAY 74006065
9	MAY 74006066
9	MAY 74006068
9	MAY 71003231
9	MAY 74006067
10	WPY704513 Whirlpool Oven Igniter Switch
10	WP4330739 Whirlpool Igniter Switch
11	MAY 74006064
12	MAY Y04100249
12	WP90767 Whirlpool Screw
13	MAY Y04100845
14	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15	MAY 74004297
16	MAY 74005887
16	MAY 74006935
17	MAY 74005888
18	MAY 74005889
19	TERMINAL BLOCK
19	MAY Y700725
20	WP3403M075-10 Whirlpool Burner Head
21	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
22	WP7538P008-60 Whirlpool Burner Venturi
23	WP7538P009-60 Whirlpool Venturi
24	WP59002061 Whirlpool Microwave Screw
24	WP2001F175-09 Whirlpool Cooktop
25	MAY 74005893
26	MAY 74006934
27	MAY 74006097
29	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
