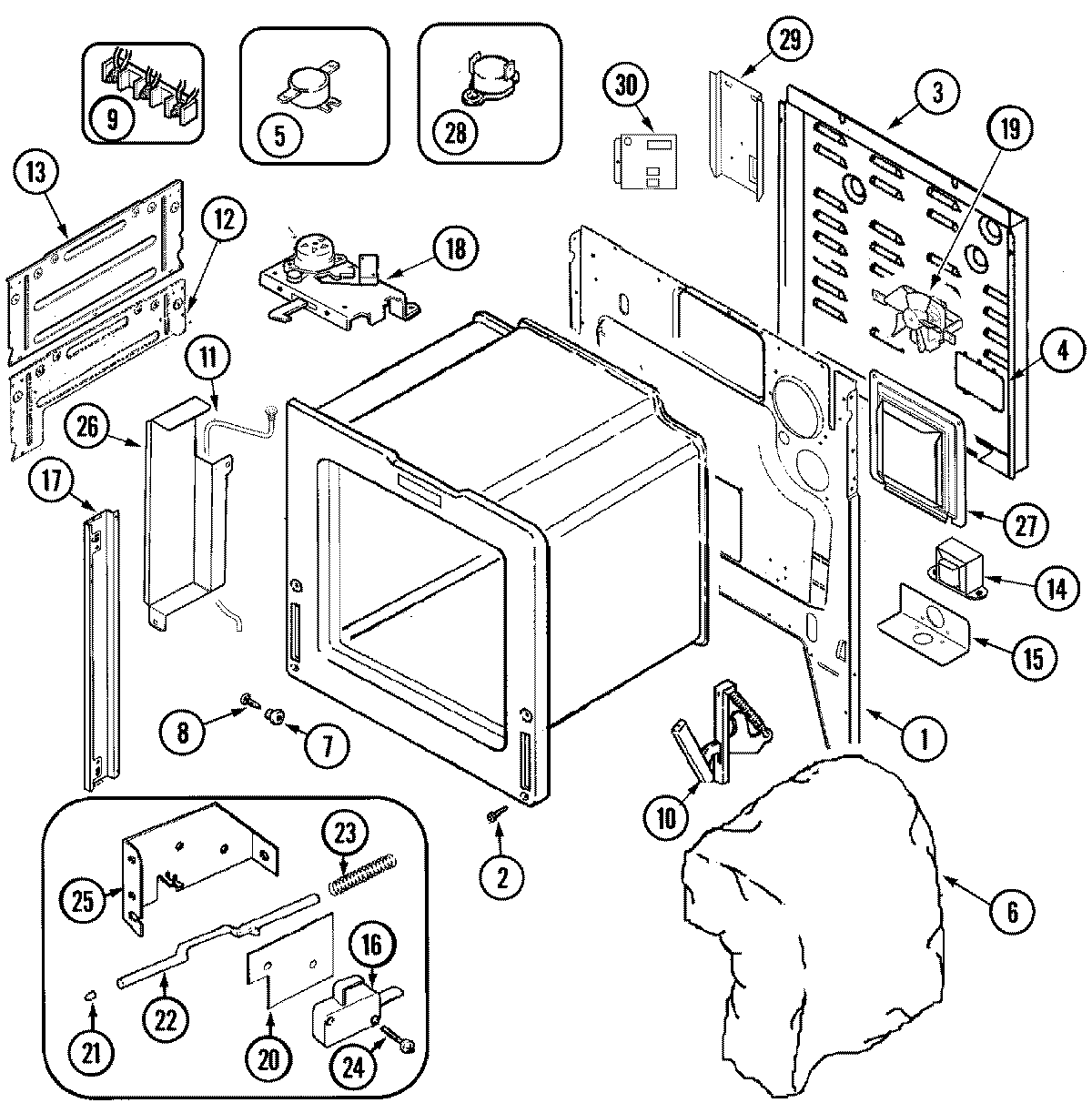

JDS9860ACP 02 – BODY (ACP)

Products

Position	Product
1	MAY 74005721
2	SCREW (10-24X5/16-NI)
3	4005F810-51 Whirlpool Access Cover
4	COVER, TERMINAL BLOCK
5	WP71001844 Whirlpool Thermostat
6	MAY 74005838
6	MAY 74005839
6	MAY 74005840
6	MAY 74004520
7	MAY 8004P024-60
8	W11693756 Whirlpool Screw Assembly
9	MAY 74002230
9	MAY 74002301
9	MAY 74002305
9	WPW10245259 Whirlpool Terminal Block
9	WP7103P027-60 Whirlpool Nut
9	MAY 74002303
10	WP74011140 Whirlpool Oven Hinge
11	MAY 702748
11	MAY 702747
11	MAY 74005855
12	MAY 74006103
12	MAY 74005854
13	MAY 74004177
14	MAY 74005416
15	MAY 71003644
16	MAY 74001802
17	MAY 74004216
18	MAY 74005675
18	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19	SCREW
19	MAY 74004947
20	MAY 74001872
21	MAY 74001631
22	ROD, DOOR LIGHT SWITCH
24	MAY 7101P330-60
25	BRACKET, SWITCH ACTUATOR
26	MAY 74005876
26	MAY 74006356
27	MAY 74004348
28	MAY 74004098
29	MAY 74006122
30	MAY 7402P050-60
30	WP74003482 Whirlpool Auxiliary Relay
30	MAY 71002035
