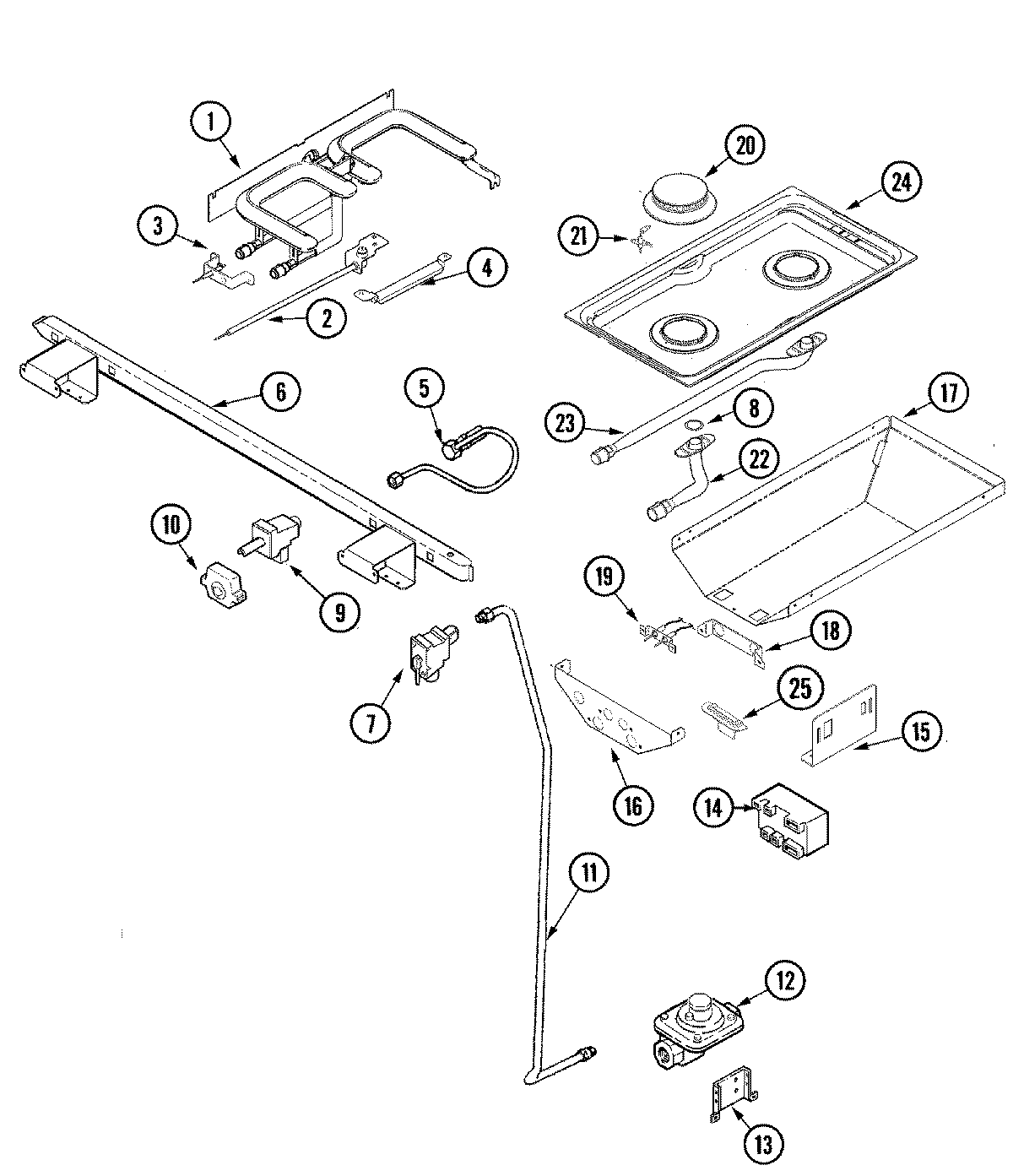

JDS9860ACP 05 – GAS CONTROLS (ACP)

Products

Position	Product
1	WP74006070 Whirlpool Burner Grille
2	WP74006072 Whirlpool Spark Electrode
3	WP74006073 Whirlpool Oven Igniter
4	MAY 74006071
5	MAY 74006123
5	MAY 74006124
5	MAY 74006125
5	MAY 74006126
6	MAY 74006117
7	MAY 74004299
7	MAY 74006120
7	MAY 74009873
8	MAY 74005893
9	MAY 71003231
9	MAY 74009872
9	WP74006119 Whirlpool Burner Valve
9	MAY 74009871
9	VALVE-BURNER
10	WP74009874 Whirlpool Ignition Switch
10	MAY 71002330
10	MAY 71002322
11	MAY 74006130
12	WP90767 Whirlpool Screw
12	MAY Y04100249
13	MAY Y04100845
14	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15	MAY 74004297
16	MAY 74005887
16	MAY 74006935
17	MAY 74005888
18	MAY 74005889
19	TERMINAL BLOCK
19	MAY Y700725
20	WP3403M075-10 Whirlpool Burner Head
21	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
22	WP7538P008-60 Whirlpool Burner Venturi
23	WP7538P009-60 Whirlpool Venturi
24	WP2001F175-09 Whirlpool Cooktop
24	WP59002061 Whirlpool Microwave Screw
25	MAY 74006934
26	MAY 74006097
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
