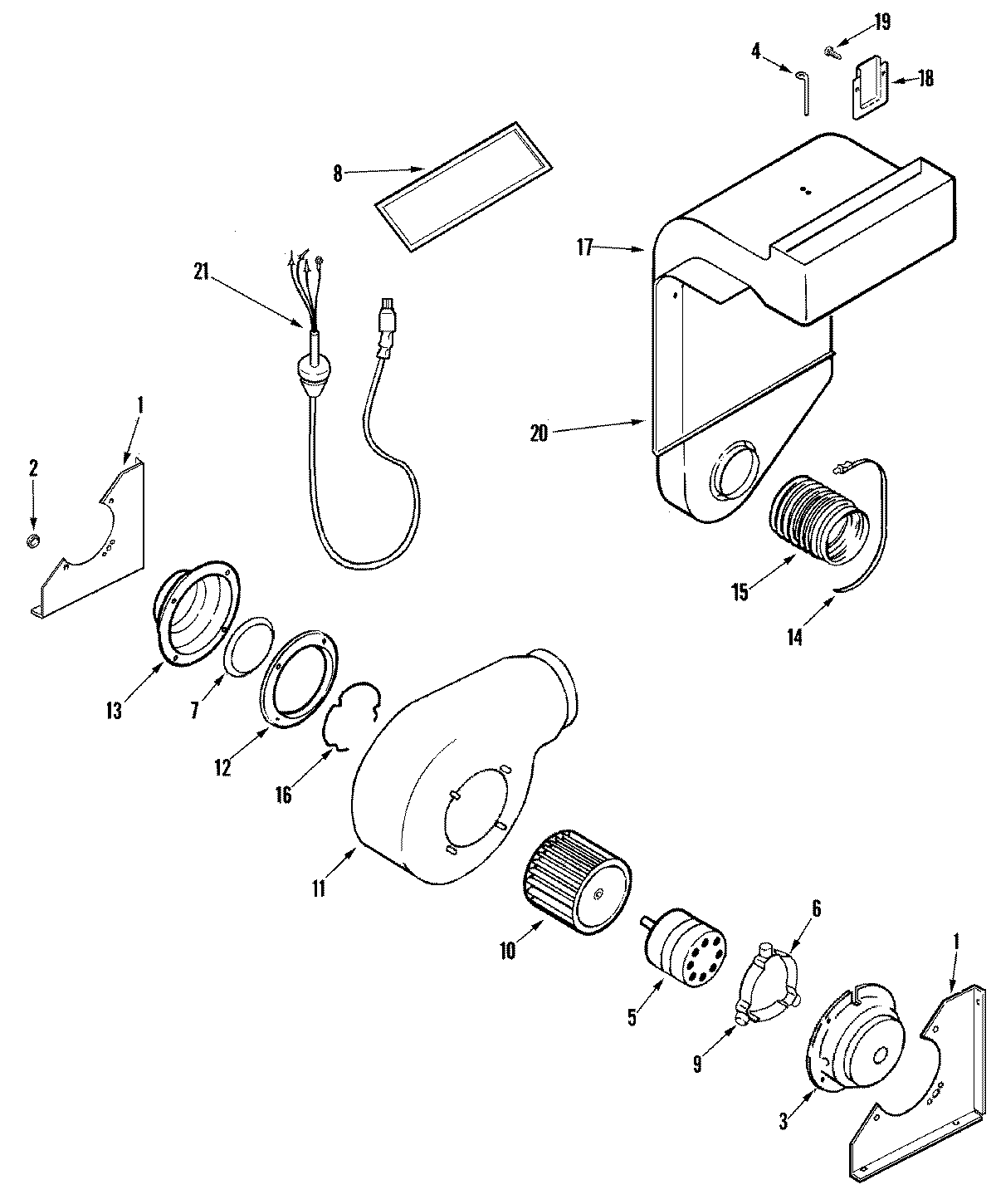

JDS9860BCP 01 – BLOWER ASSEMBLY (PLENUM)

JDS9860BCP 01 – BLOWER ASSEMBLY (PLENUM)

Written by

in

JDS9860BCP 01 – BLOWER ASSEMBLY (PLENUM)

Products

PositionProduct
1WP3801F631-51 Whirlpool Mounting Bracket
2WPY707702 Whirlpool Locknut
3MAY Y04100336
3MAY 71002107
4MAY 71002113
5MAY Y715957
5WPW10201322 Whirlpool Blower Motor
6MAY Y707393
7MAY Y704761
8WP71002111 Whirlpool Grease Filter
9MAY Y708926
9WP4159193 Whirlpool Screw
9WP7103P027-60 Whirlpool Nut
10WPY707985 Whirlpool Wheel Assembly
11MAY 712008
12MAY Y704758
13MAY Y702296
14MAY Y702331
15MAY Y702326
168038P003-60 Whirlpool Retainer
17MAY Y700556
17MAY 74007130
18MAY Y702475
202801L037-80 Whirlpool Plenum
21WP7402P104-60 Whirlpool Power Cord
