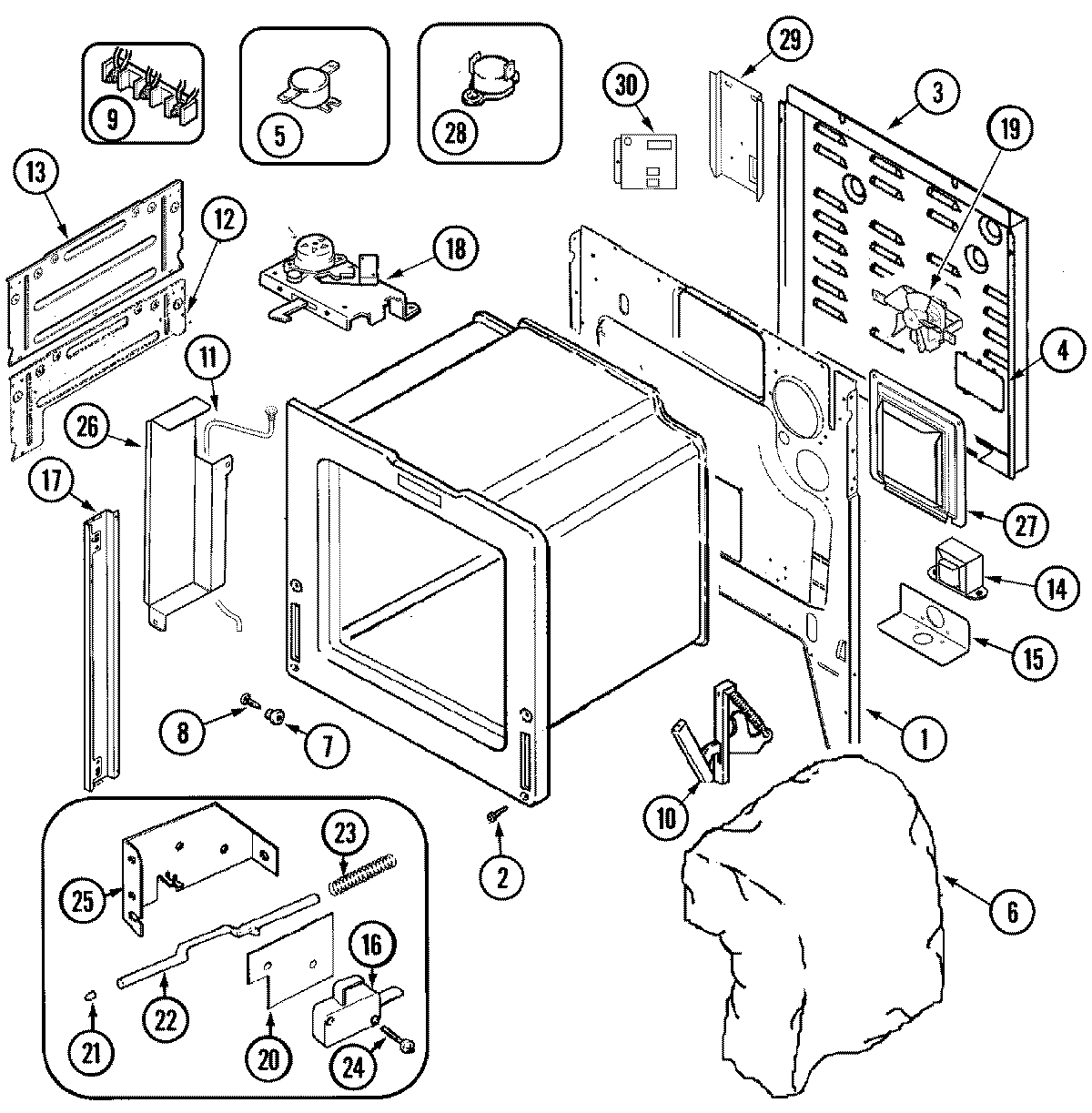

JDS9860BCP 02 – BODY

JDS9860BCP 02 – BODY

Written by

in

JDS9860BCP 02 – BODY

Products

PositionProduct
1MAY 74005721
2SCREW (10-24X5/16-NI)
34005F810-51 Whirlpool Access Cover
4COVER, TERMINAL BLOCK
5WP71001844 Whirlpool Thermostat
6MAY 74005839
6MAY 74005840
6MAY 74006357
7MAY 8004P024-60
8W11693756 Whirlpool Screw Assembly
9INSULATOR, POWER CORD
9WP7103P027-60 Whirlpool Nut
9WPW10245259 Whirlpool Terminal Block
10WP74011140 Whirlpool Oven Hinge
11MAY 74005855
11MAY 702748
11MAY 702747
12MAY 74005854
12MAY 74006103
13MAY 74007487
14MAY 74005416
15MAY 71003644
16MAY 74001802
17MAY 74004216
1874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
18MAY 74005675
19MAY 74004947
19SCREW
20MAY 74001872
21MAY 74001631
22ROD, DOOR LIGHT SWITCH
23MAY 74009060
24MAY 7101P330-60
25BRACKET, SWITCH ACTUATOR
26MAY 74006356
26MAY 74005876
27MAY 74004348
28MAY 74004098
29MAY 74006122
30MAY 71002035
31WP74003482 Whirlpool Auxiliary Relay
32MAY 74006398
