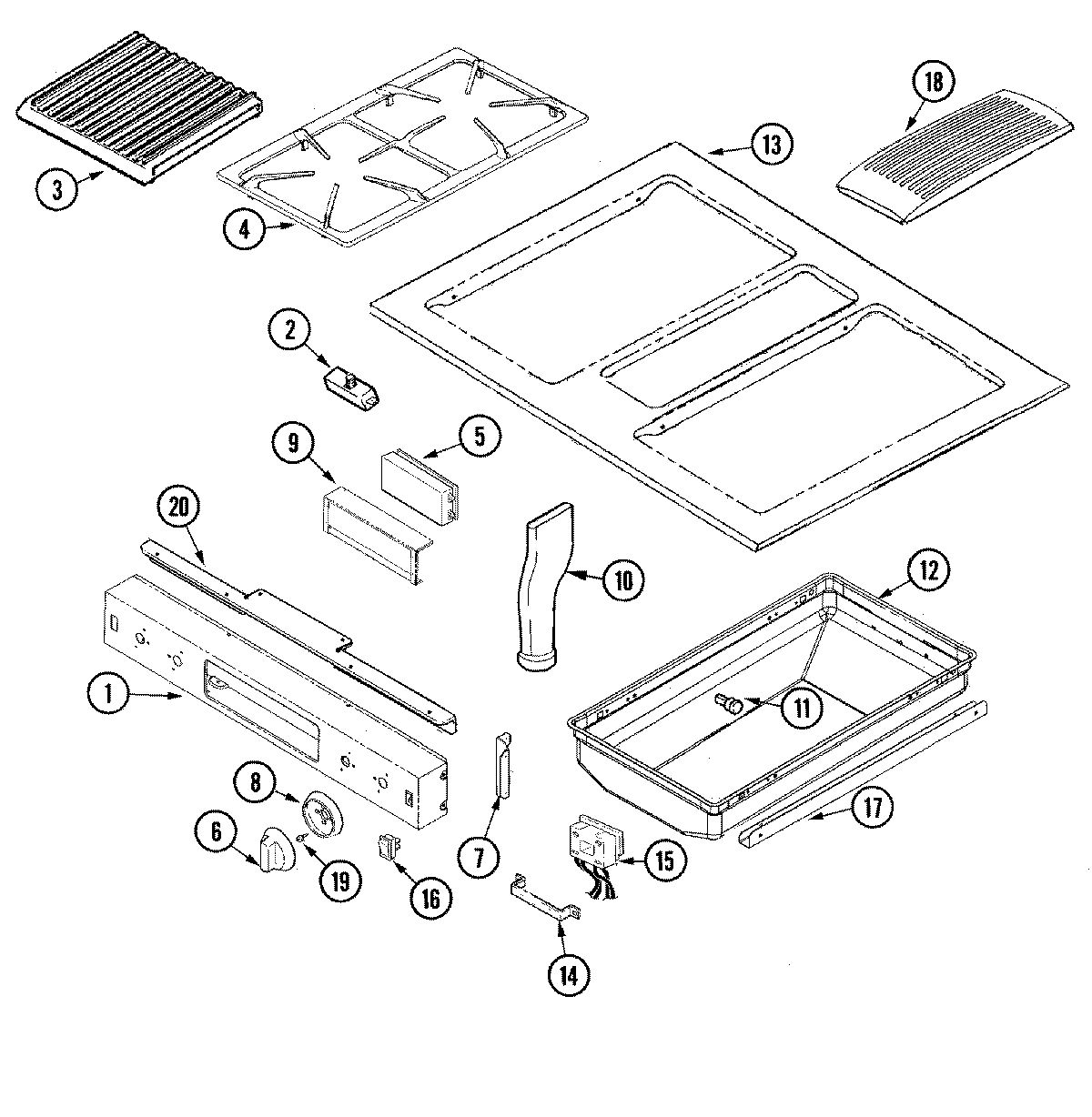

JDS9860BCP 03 – CONTROL PANEL/TOP ASSEMBLY

JDS9860BCP 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JDS9860BCP 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010786
2MAY 74006095
2WP7450P012-60 Whirlpool Burner Top
3MAY 71003267
4WP7518P483-60 Whirlpool Burner Grate
5MAY 74008207
5MAY 74006331
6KNOB
7SCREW (8ABX1/2“-BLK)
7MAY 74005729
8MAY 74009664
9MAY 74006129
10MAY 74005808
11MAY Y704553
1171001764 Whirlpool Locator PIN
12MAY 74006089
12MAY 74006090
12MAY Y704947
13MAY 74009641
14MAY 74006093
14WP489128 Whirlpool Refrigerator Screw
15MAY 74006092
15MAY 74006091
16WP3147265 Whirlpool Rocker Switch
16MAY Y704311
17MAY 74005817
17W10828565 Whirlpool Screw
18MAY 74006061
20MAY 74005756
20SCREW (8BX3/8-NI)
