JDS9860BDB 06 – GAS CONTROLS

JDS9860BDB 06 – GAS CONTROLS

Written by

in

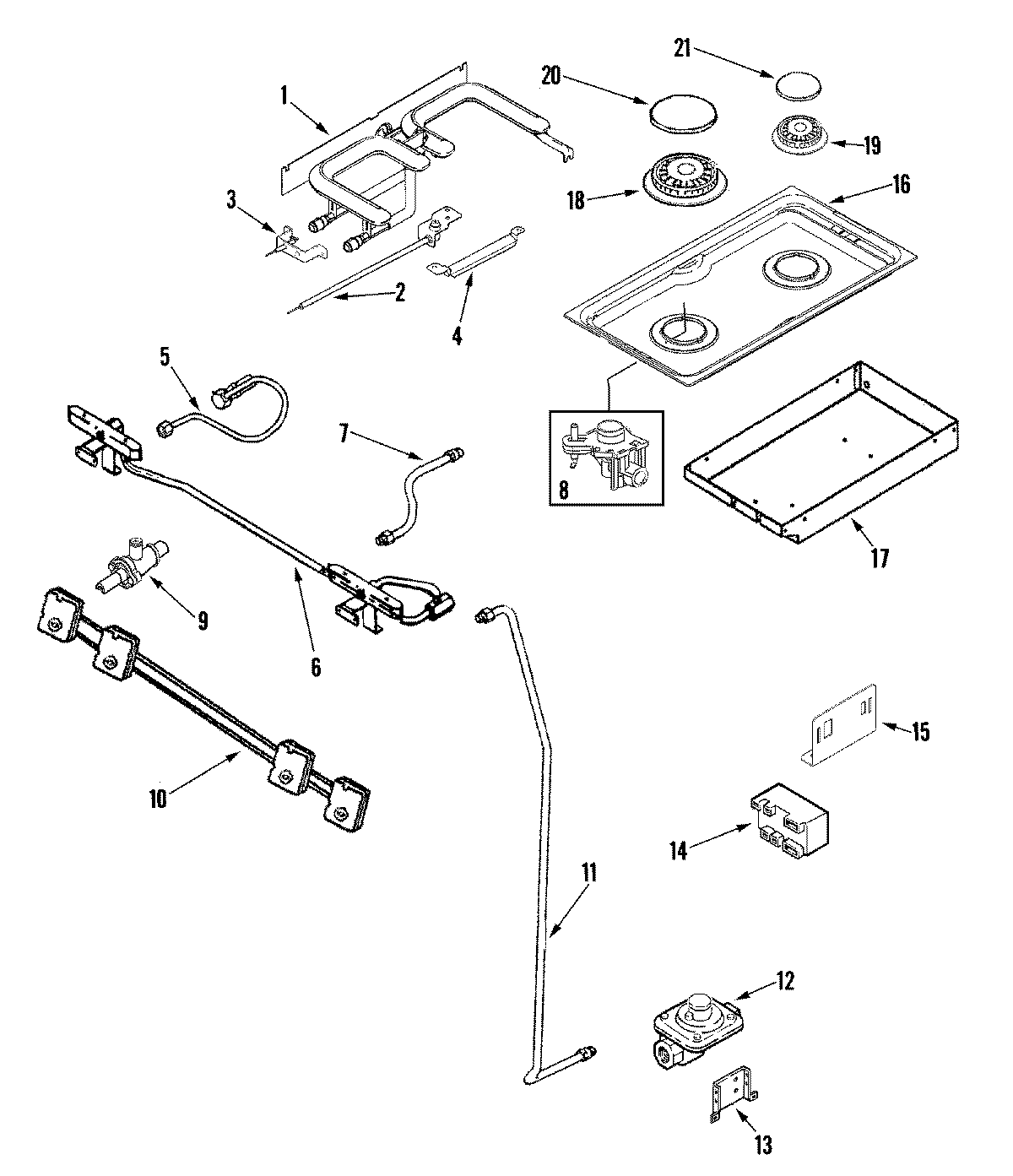

JDS9860BDB 06 – GAS CONTROLS

Products

PositionProduct
1MAY 74010760
1MAY 74011139
2WP74006072 Whirlpool Spark Electrode
3WP74006073 Whirlpool Oven Igniter
4MAY 74006071
5MAY 74011585
5MAY 74011584
67513P496-60 Whirlpool Manifold Pipe
7MAY 74011587
7MAY 74011586
8WPW10407680 Whirlpool Orifice Holder
8WPW10110378 Whirlpool Surface Igniter
8WPW10407678 Whirlpool Orifice Holder
9MAY 74009451
912002270 Whirlpool Valve Kit and Screw 16K
9MAY 74009416
974011583 Whirlpool Oven Mini Burner Valve
1074011582 Whirlpool Oven Switch Harness Assembly
11MAY 74011471
12WP90767 Whirlpool Screw
12MAY Y04100249
13MAY Y04100845
14Module, Spark (4+0)
148215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15BRACKET
15SUPPORT, SPARK MODULE
16MAY 74011472
17MAY 74011466
18BURNER, HEAD (RIGHT FRONT)
19WPW10406243 Whirlpool Burner Head Auxiliary 6K
20CAP, BURNER (EX-LRG/BLK)
21WP8284669 Whirlpool Burner Cap
