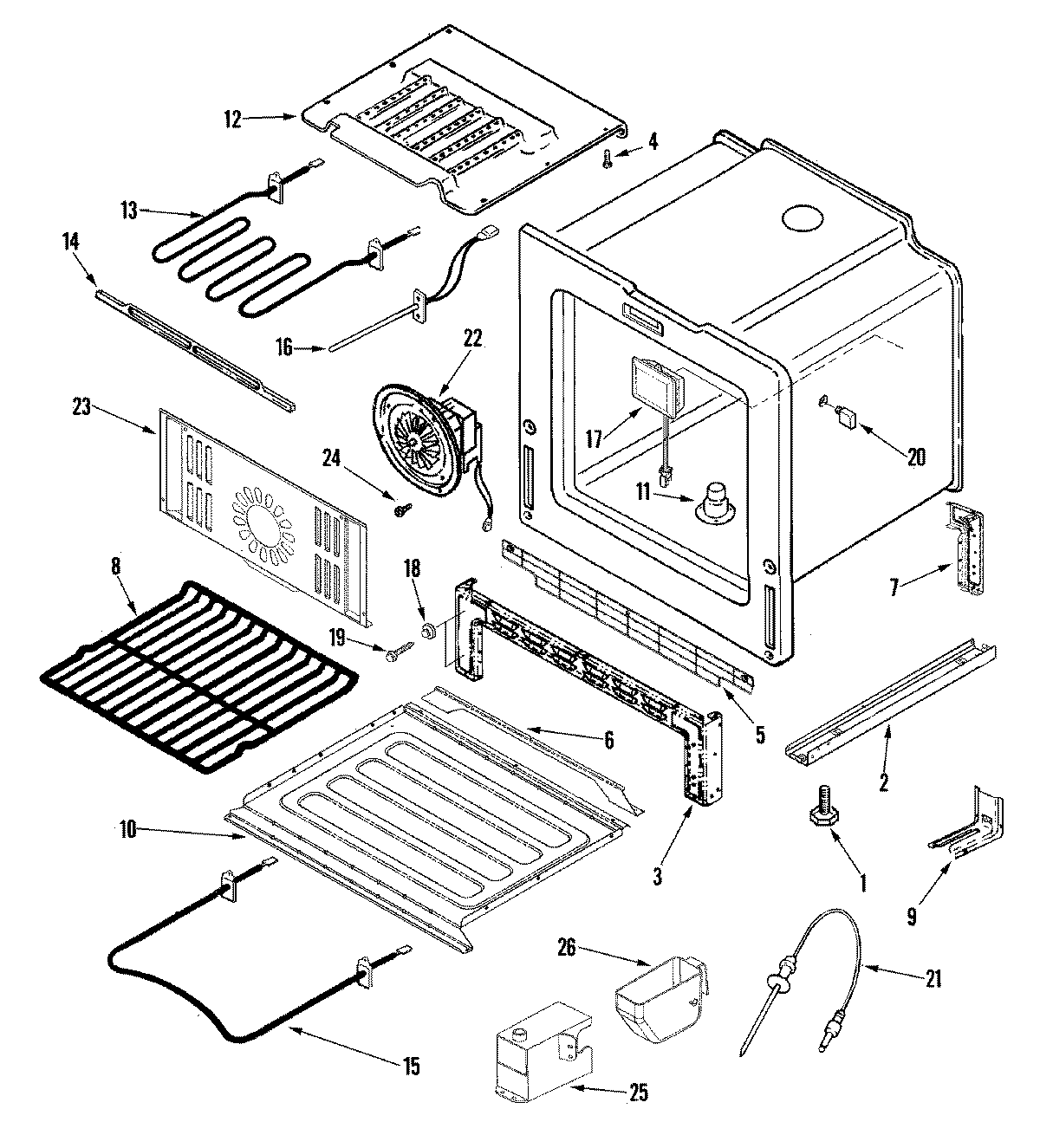

JDS9860BDB 07 – OVEN/BASE

Products

PositionProduct
1WP74010805 Whirlpool Screw
24020W035-80 Whirlpool Bottom PE
3PEDESTAL, FRONT
4MAY 74010505
5MAY 74011482
6MAY 74005825
7WP4020F033-80 Whirlpool Pedestal
7MAY 74011515
8WPW10282492 Whirlpool Oven Rack
9WP3801F656-51 Whirlpool Range Anti-Tip Bracket
9WP7101P485-60 Whirlpool Anchor Tip
10MAY 74005824
11MAY 74010808
11PLATE, VENT COVER
12MAY 74008408
13MAY 74011479
14MAY 74003563
15WPW10310274 Whirlpool Bake Element
1612001656 Whirlpool Range Oven Temperature Sensor
17MAY 74011220
18MAY 8004P024-60
19MAY 74007476
20WP7408P086-60 Whirlpool Receptacle
21WP7430P038-60 Whirlpool Meat Probe Sensor
22MAY 74011517
23WPW10186795 Whirlpool Convection Baffle
24WP74003976 Whirlpool Screw
25MAY 74005826
26MAY 74005827
