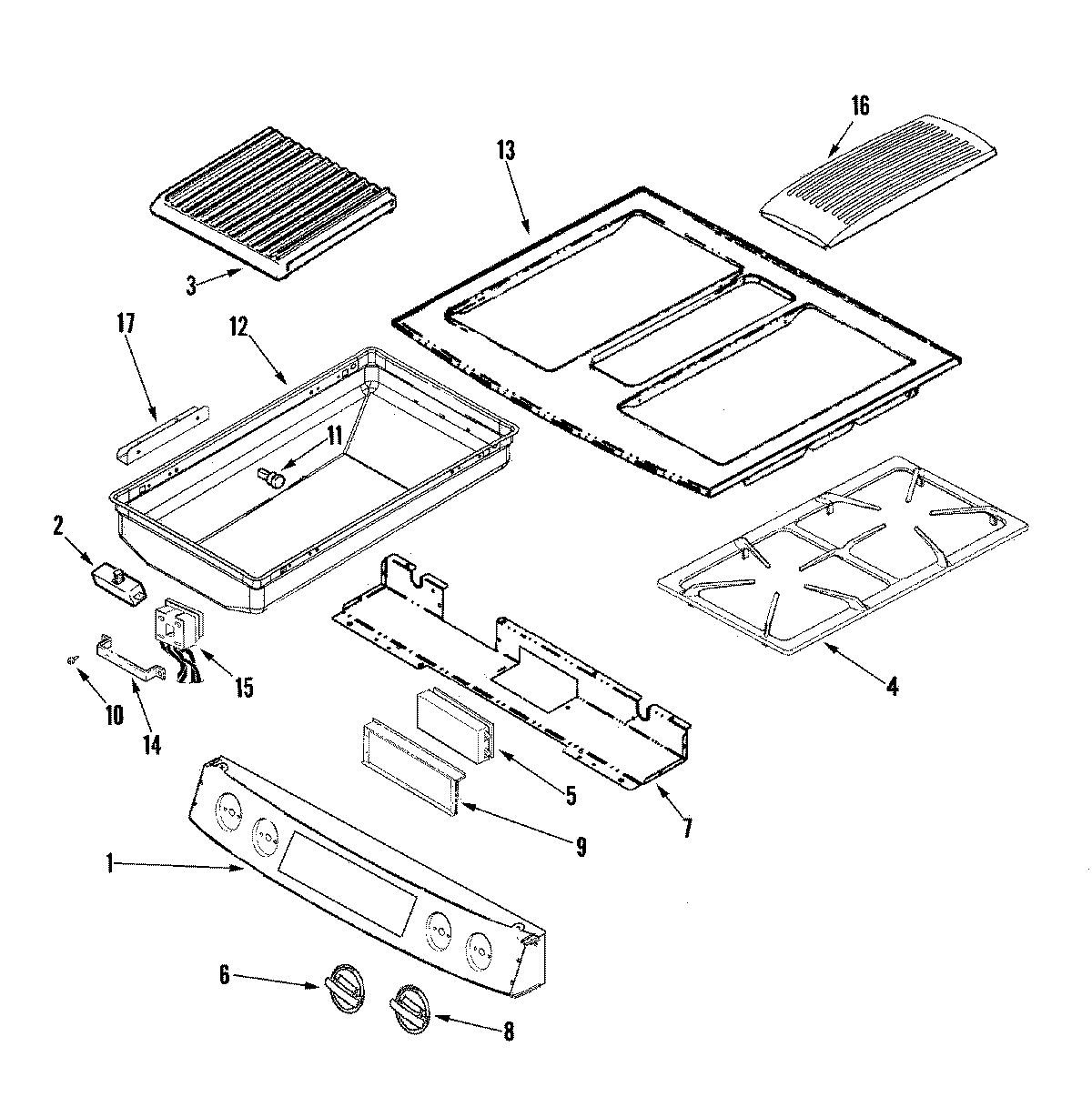

JDS9860BDS 03 – CONTROL PANEL/TOP ASSEMBLY

JDS9860BDS 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JDS9860BDS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011592
2WP7450P012-60 Whirlpool Burner Top
3MAY 71003267
4MAY M0275597
4MAY 74011589
4W10919249 Whirlpool Burner Grate Foot
5WP8507P232-60 Whirlpool Electronic Control Board
5MAY 74011524
5WP59002061 Whirlpool Microwave Screw
6WP74011593 Whirlpool Stove Knob SMR
7MAY 74011531
7SCREW (8ABX1/2“-BLK)
8WPW10220975 Whirlpool Knob
9MAY 74006129
9SCREW (8BX3/8-NI)
10WP489128 Whirlpool Refrigerator Screw
11MAY Y704553
1171001764 Whirlpool Locator PIN
12MAY 74006090
12MAY Y704947
13MAY 74011502
14MAY 74006093
15MAY 74011519
16MAY 74006061
17W10828565 Whirlpool Screw
29MAY 702747
