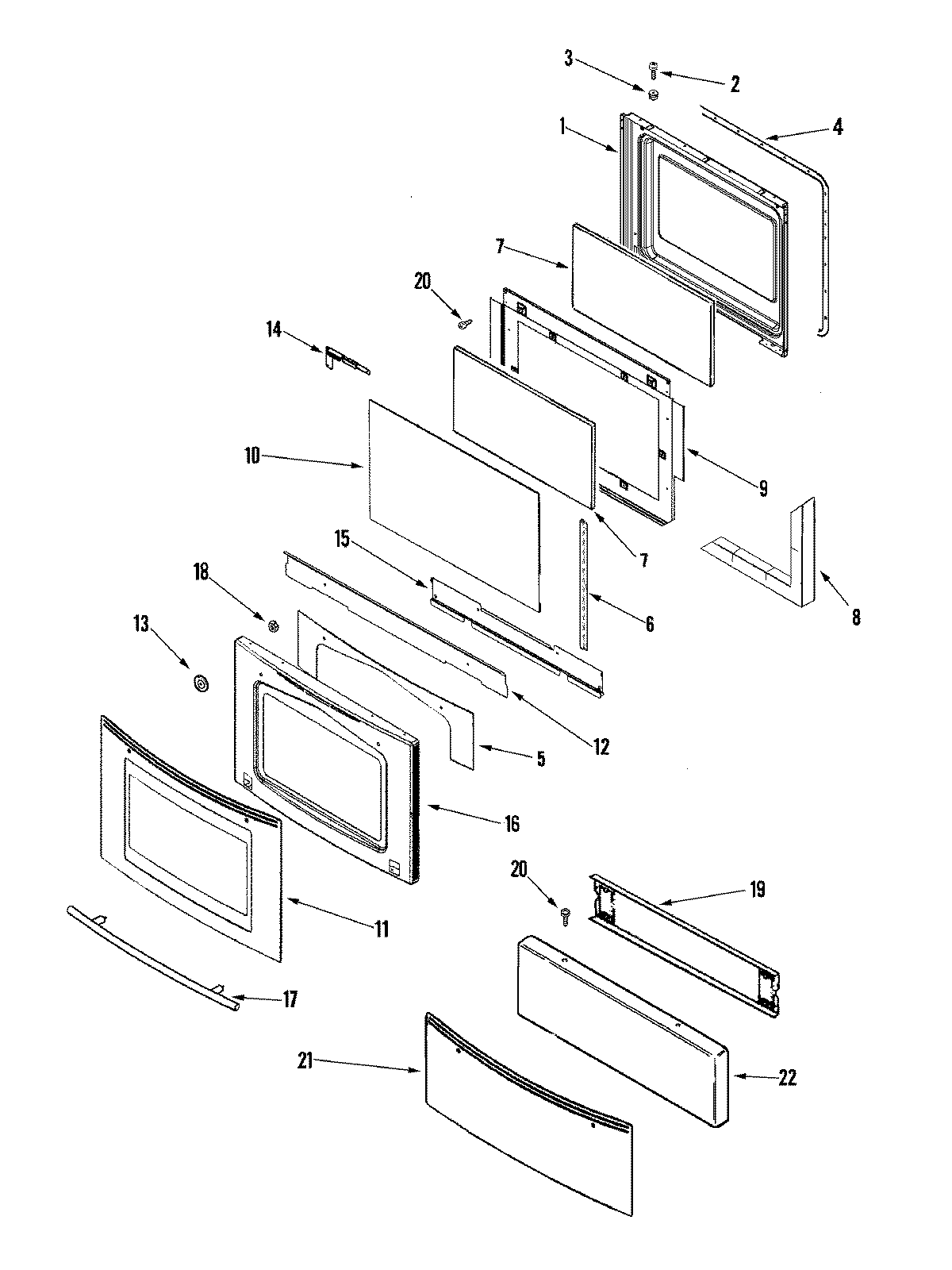

JDS9860BDS 05 – DOOR/ACCESS PANEL (SER PRE 11)

Products

PositionProduct
1LINING, DOOR
2WP98008545 Whirlpool Screw
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
63801F886-51 Whirlpool Mounting Bracket
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
93601F373-51 Whirlpool Baffle
10GLASS, DOOR (INNER/COATED)
11FRAME, DOOR (STAINLESS)
11MAY 74011542
12MAY 74011049
13MAY 74009194
14MAY 74011463
14MAY 74011797
15MAY 74011464
16MAY 74011507
17WP74008625 Whirlpool Door Handle
18WP3400029 Whirlpool Dishwasher Nut
19MAY 74011554
20WP90767 Whirlpool Screw
22MAY 22002368
29MAY 702747
