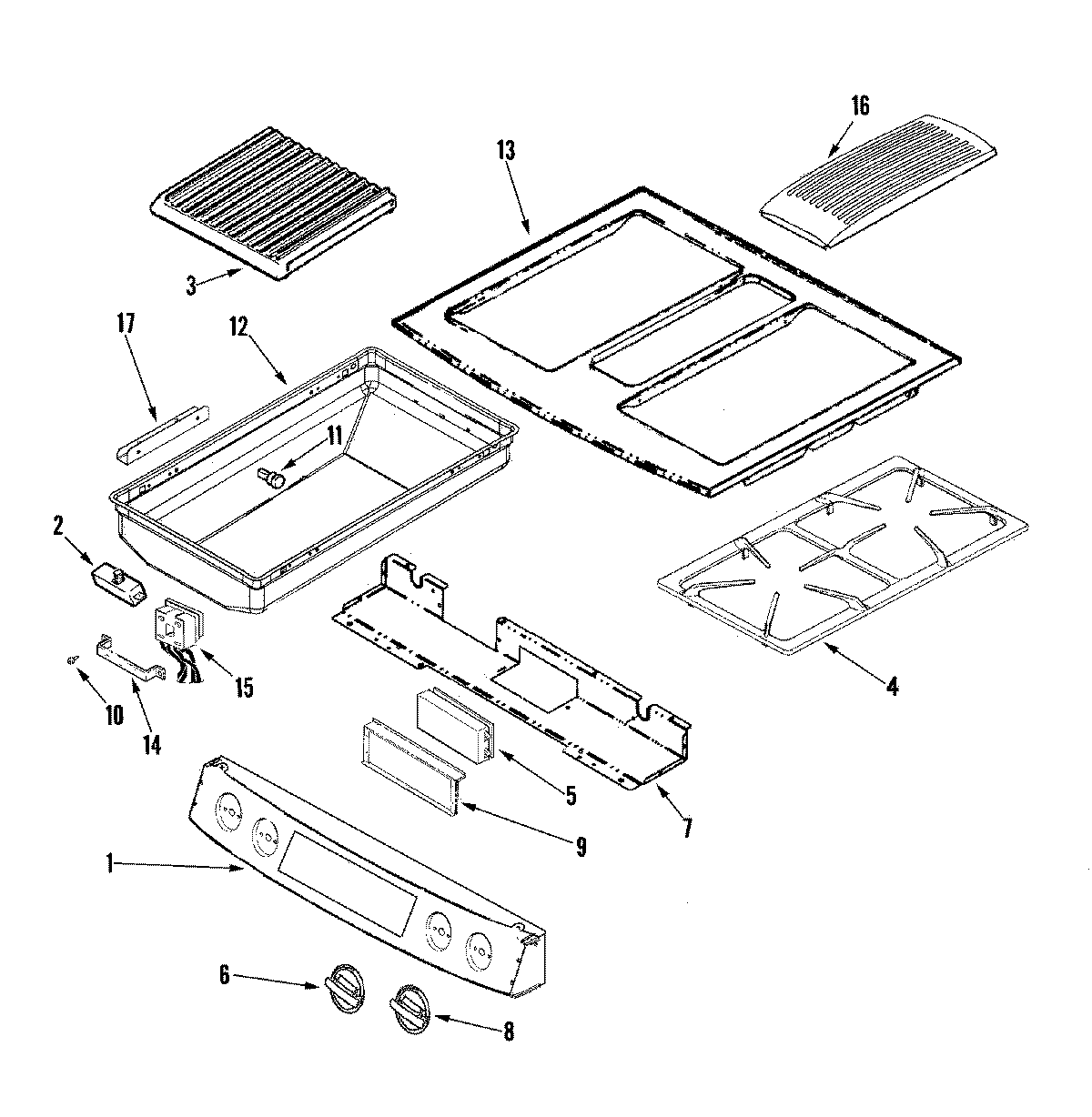

JDS9860BDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011591
2	WP7450P012-60 Whirlpool Burner Top
3	MAY 71003267
4	MAY 74011589
4	MAY M0275597
4	W10919249 Whirlpool Burner Grate Foot
5	WP8507P232-60 Whirlpool Electronic Control Board
5	MAY 74011524
5	WP59002061 Whirlpool Microwave Screw
6	WP74011593 Whirlpool Stove Knob SMR
7	MAY 74011531
7	SCREW (8ABX1/2``-BLK)
8	WPW10220975 Whirlpool Knob
9	MAY 74006129
9	SCREW (8BX3/8-NI)
10	WP489128 Whirlpool Refrigerator Screw
11	MAY Y704553
11	71001764 Whirlpool Locator PIN
12	MAY 74006090
12	MAY Y704947
13	COOKTOP (WHITE)
13	MAY 74011501
14	MAY 74006093
15	MAY 74011519
16	MAY 74006061
17	MAY 74011599
17	W10828565 Whirlpool Screw
