JDS9860BDW 05 – DOOR/ACCESS PANEL (SER PRE 11)

JDS9860BDW 05 – DOOR/ACCESS PANEL (SER PRE 11)

Written by

in

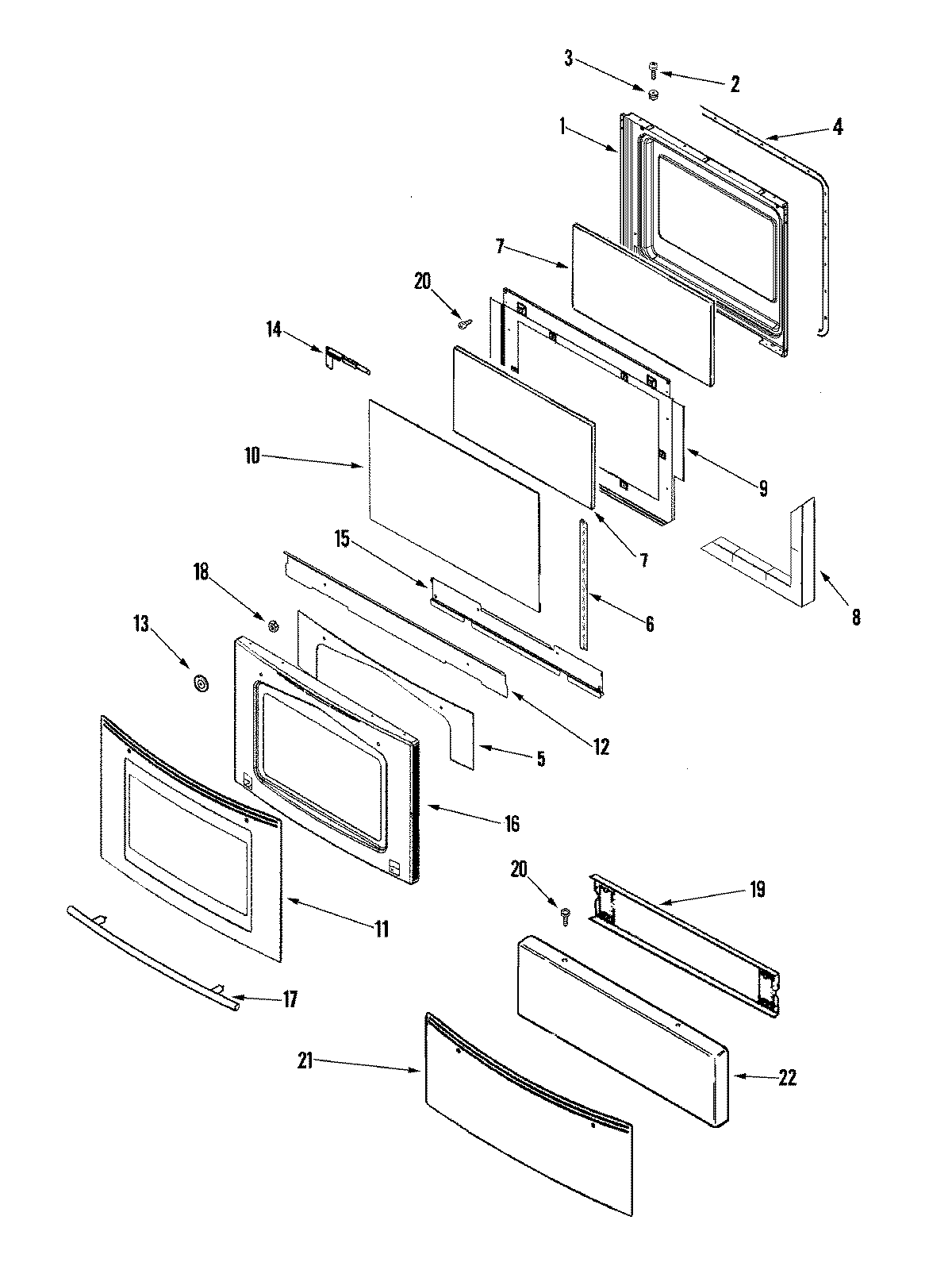

JDS9860BDW 05 – DOOR/ACCESS PANEL (SER PRE 11)

Products

PositionProduct
1LINING, DOOR
2WP98008544 Whirlpool Screw Assembly
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
63801F886-51 Whirlpool Mounting Bracket
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
93601F373-51 Whirlpool Baffle
10GLASS, DOOR (INNER/COATED)
11MAY 74011510
12MAY 74006090
12MAY 74011049
12MAY Y704947
13MAY 74011501
13MAY 74009194
14MAY 74011797
14MAY 74011463
15MAY 74011464
163603F075-71 Whirlpool Door Frame
17WP74008625 Whirlpool Door Handle
21BRACKET, SWITCH ACTUATOR
29MAY 702747
