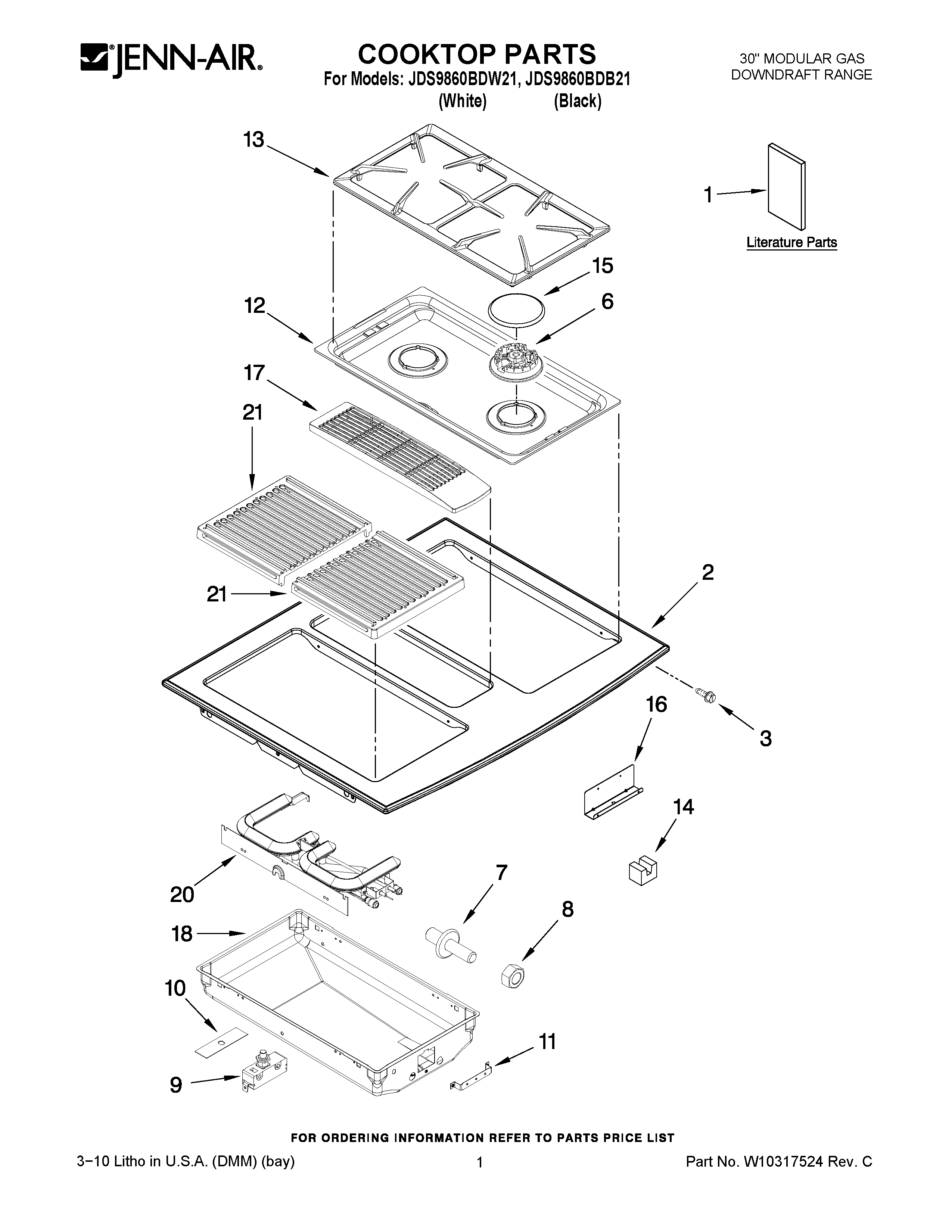

JDS9860BDW21 01 – COOKTOP PARTS

JDS9860BDW21 01 – COOKTOP PARTS

Written by

in

JDS9860BDW21 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8101P702-60
1MAY 8119P394-60
1CARD, FLOW TESTER
1MAY 8119P395-60
1MAY 8113P753-60
1TIPS, SAFE COOKING (FRENCH)
2COOKTOP (WHITE)
2COOKTOP (BLACK)
3MAY 7101P426- 60
6HEAD, BURNER CTR.
6MAY 7540P047-60
7PIN, LOCATOR
8MAY 7103P160-60
9SWITCH, INF.
10SWITCH, INSUL.
11CLIP
12TOP, WHITE
13GRATE (BLACK)
14MAY 8255P412-60
15CAP, BURNER (CTR)
15CAP, BURNER (LF & RR)
16MAY 3807F743-51
17MAY 7772P045-60
18PAN, GRILL (LEFT)
20E-BURNER, GRILL
21GRATE, GRILL
