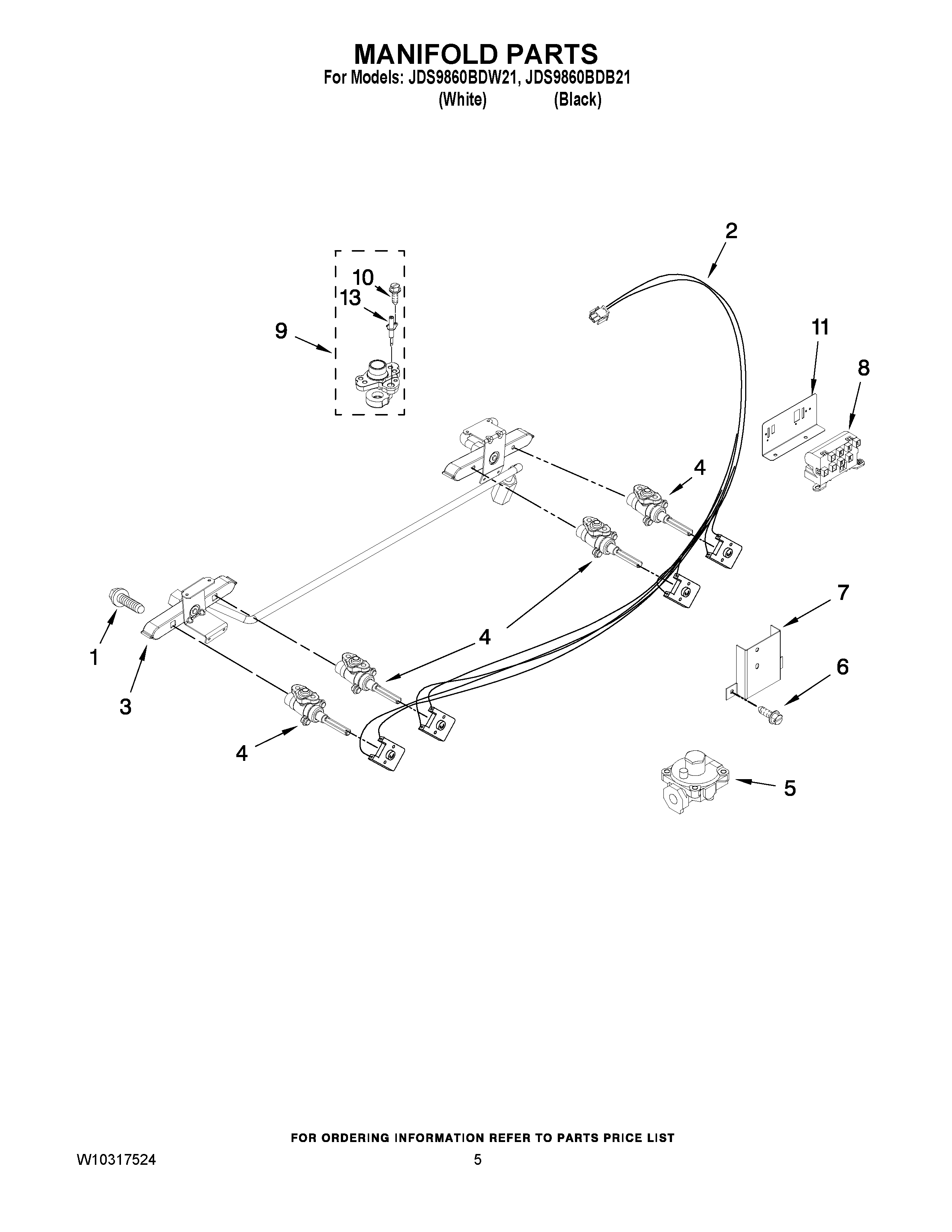

JDS9860BDW21 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 7506P466-60
NI	MAY 7506P465-60
NI	MAY 7506P463-60
NI	MAY 7506P462-60
NI	MAY 7506P464-60
1	SCREW
2	MAY 7450P005-60
3	MAY 7513P496-60
4	VALVE (LEFT FRONT/REAR)
4	MAY 7502P548-60
4	VALVE, TOP BURNER (LR 5K)
5	MAY 7510P077-60
6	SCREW (10-24X5/16-NI)
7	BRACKET, SUPPORT REGULATOR
8	MODULE, SPARK
9	ORIFICE (RF)
9	ORIFICE (LR)
10	MAY 7101P426- 60
11	BRACKET
13	Ignitor, Top Burner (4)
13	IGNITOR, E-BURNER
