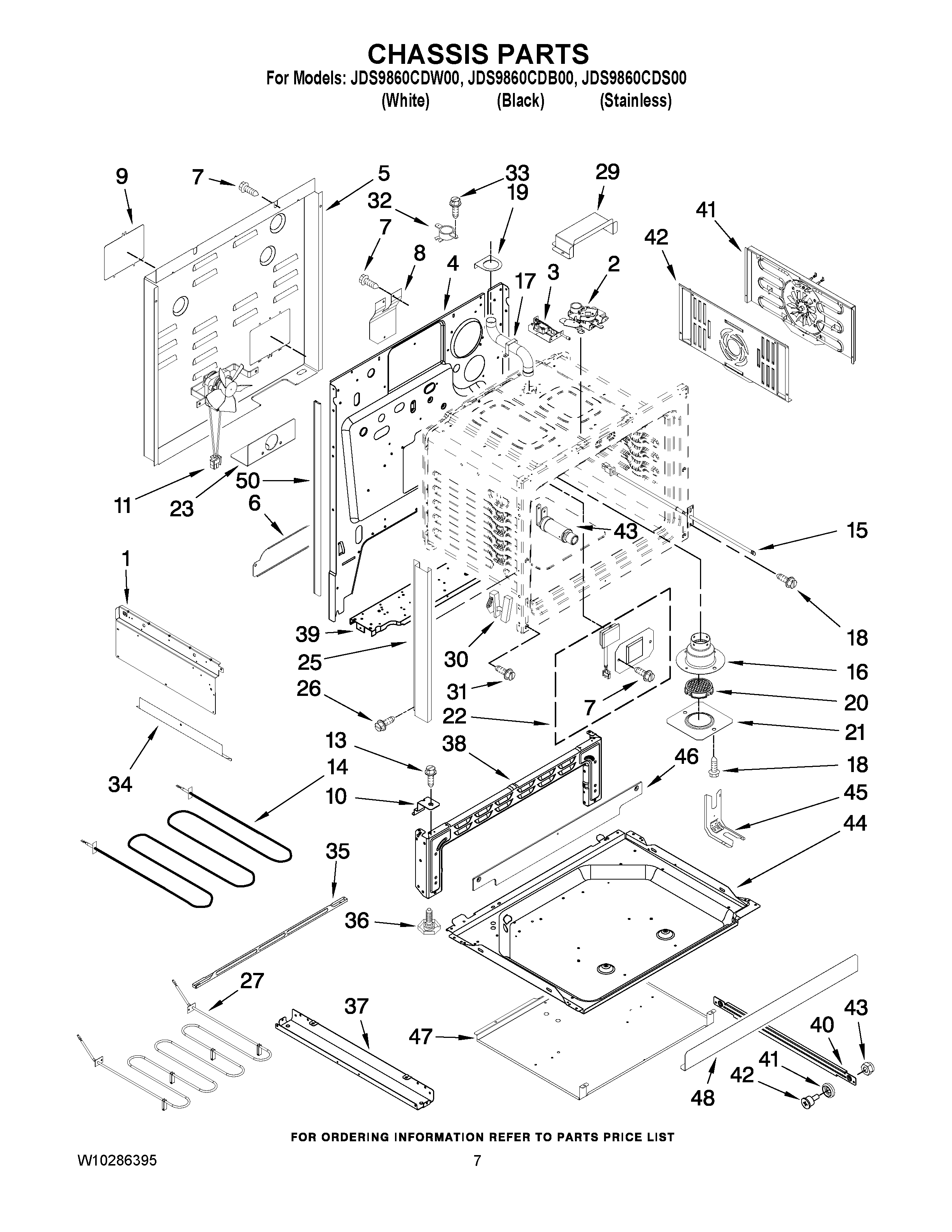

JDS9860CDB00 05 – CHASSIS PARTS

Products

Position	Product
NI	MAY 2618F201-51
NI	MAY 2618F206-51
NI	MAY 8312P190-60
NI	MAY 7430P038-60
NI	MAY W10221108
NI	MAY 8312P191-60
NI	MAY 7002P466-60
NI	MAY 7002P468-60
1	MAY 8004P024-60
2	MAY 8002P089-60
3	ASSY., LIGHT SW
4	BACK, MAIN
5	COVER, MAIN WIRE
6	MAY 3826F066-60
8	MAY 7003P101-60
9	COVER, TERMINAL
10	SUPPORT, OVEN BTM.
11	MAY 7427P094-60
13	MAY 7101P500-60
14	MAY 7406P430-60
15	MAY 7430P042-60
16	MAY 8026P096-60
17	MAY 8026P094-60
19	MAY 3605F345-51
20	SCREEN, SMOKE ELM.
21	MAY 3605F344-45
22	MAY 7407P180-60
23	MAY 3801F911-51
25	MAY 3608F138-71
25	TRIM, SIDE (BLACK (2))
26	MAY 7101P434-60
27	MAY 7406P439-60
29	COVER, DOOR LATCH
30	Hinge, Door (2)
31	SCREW (10-24X5/16-NI)
32	THERMOSTAT, HI-LIMIT (LOWER)
33	MAY 7101P426- 60
34	MAY 3826F066-51
35	SUPPORT, BROIL ELEMENT
36	LEG, LEVELING
37	MAY 4020W035-80
38	PEDESTAL, FRONT
39	MAY 3807F615-51
40	MAY W10293200
41	MAY 7427P129-60
42	MAY 3605F346-19
43	MAY 7408P086-60
44	MAY 3804F305-51
45	BRACKET, ANTI-TIP
46	TRIM, FRONT FRAME
47	MAY 3604F416-51
48	MAY 4005F779-80
50	MAY W10183566
