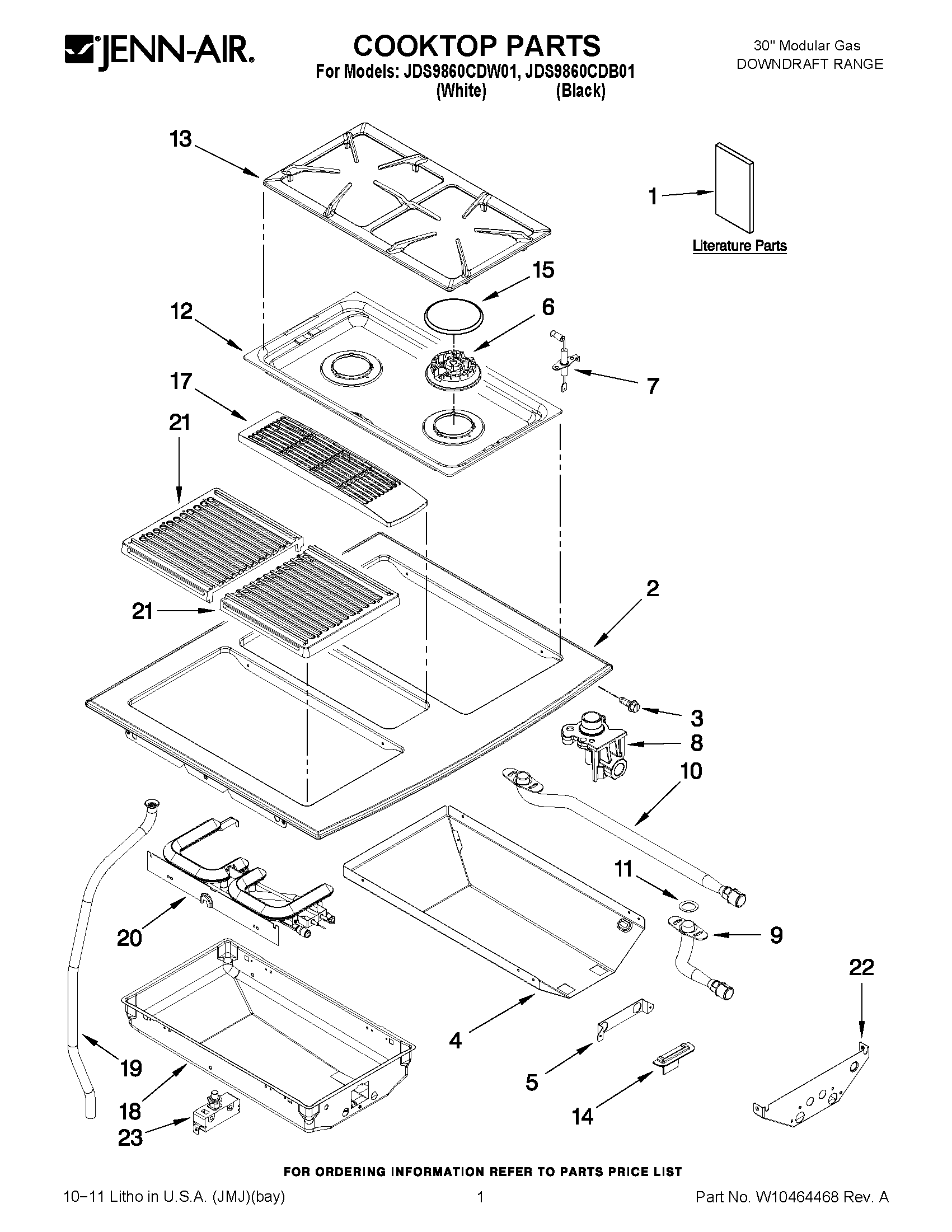

JDS9860CDB01 01 – COOKTOP PARTSadmin2025-04-26T09:28:17+00:00JDS9860CDB01 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | CARD, FLOW TESTER |
| 1 | MAY W10235521 |
| 1 | MAY W10253464 |
| 1 | WIRING DIAGRAM (USA) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | COOKTOP (BLACK) |
| 2 | COOKTOP (STAINLESS) |
| 2 | COOKTOP (WHITE) |
| 3 | MAY 7101P426- 60 |
| 4 | HOUSING, CARTRIDGE |
| 5 | MAY 3801F894-51 |
| 6 | BURNER, HEAD (RIGHT FRONT) |
| 6 | HEAD, BURNER CTR. |
| 7 | MAY 7432P120-60 |
| 8 | HOLDER, ORIFICE (RIGHT REAR) |
| 8 | WPW10407678 Whirlpool Orifice Holder |
| 9 | MAY 74011791 |
| 10 | MAY 74011792 |
| 11 | MAY 7212P067-60 |
| 12 | MAY 2001F270-09 |
| 12 | TOP, WHITE |
| 13 | GRATE (BLACK) |
| 14 | MAY 7724P179-60 |
| 15 | CAP, BURNER (LF & RR) |
| 15 | CAP, BURNER (CTR) |
| 17 | MAY 7772P045-60 |
| 18 | PAN, GRILL (LEFT) |
| 19 | TUBE, DRAIN |
| 20 | E-BURNER, GRILL |
| 21 | GRATE, GRILL |
| 22 | MAY 4005F792-61 |
| 23 | SWITCH, INF. |
