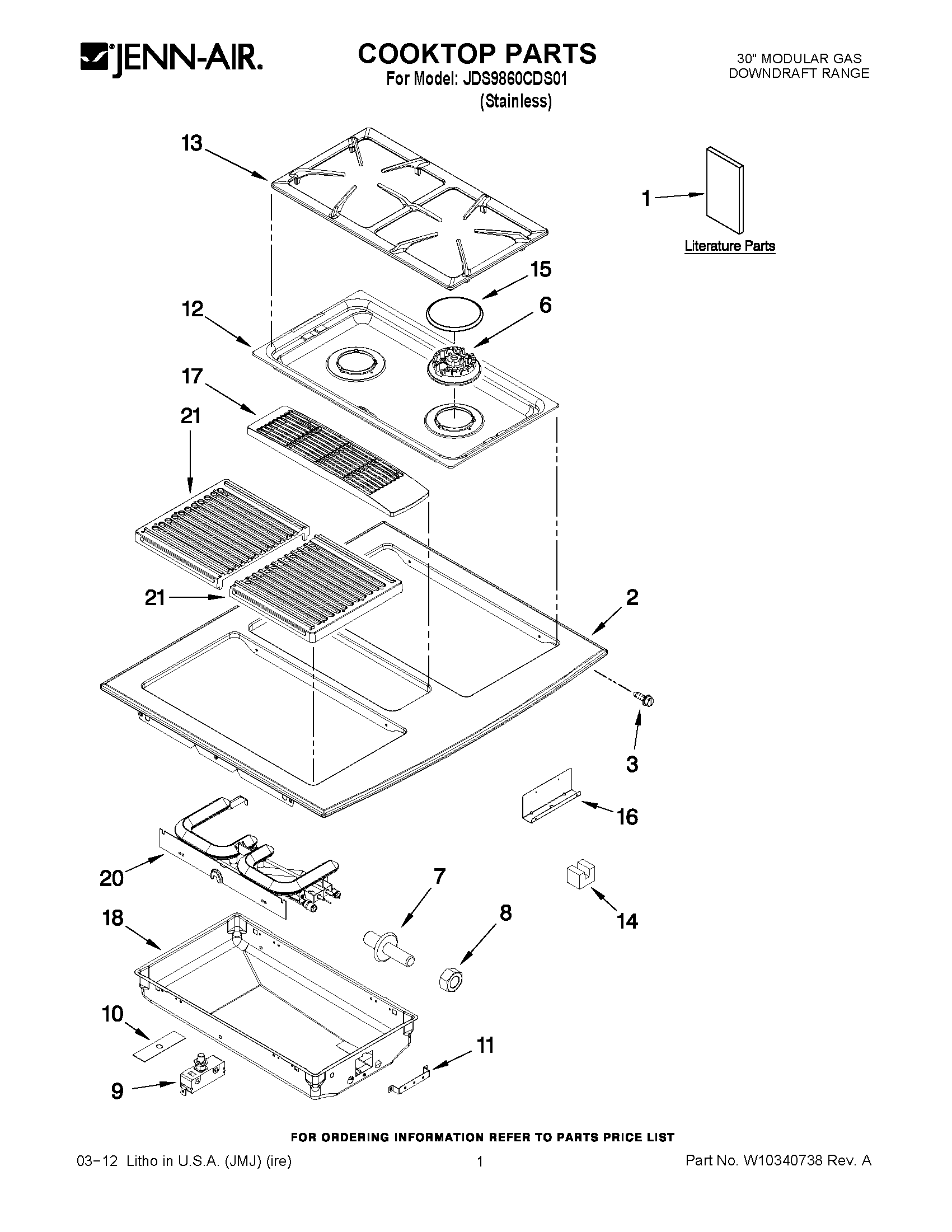

JDS9860CDS01 01 – COOKTOP PARTSadmin2025-04-26T09:31:07+00:00JDS9860CDS01 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY W10253464 |
| 1 | MAY W10235680 |
| 1 | MAY W10235521 |
| 1 | MAY W10235681 |
| 1 | CARD, FLOW TESTER |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | COOKTOP (STAINLESS) |
| 3 | MAY 7101P426- 60 |
| 6 | HEAD, BURNER CTR. |
| 6 | MAY 7540P047-60 |
| 7 | PIN, LOCATOR |
| 8 | NUT, LOCK |
| 9 | SWITCH, INF. |
| 10 | SWITCH, INSUL. |
| 11 | CLIP |
| 12 | MAY 2001F270-09 |
| 13 | GRATE (BLACK) |
| 14 | MAY 8255P412-60 |
| 15 | CAP, BURNER (CTR) |
| 15 | CAP, BURNER (LF & RR) |
| 16 | MAY 3807F743-51 |
| 17 | MAY 7772P045-60 |
| 18 | PAN, GRILL (LEFT) |
| 20 | E-BURNER, GRILL |
| 21 | GRATE, GRILL |
