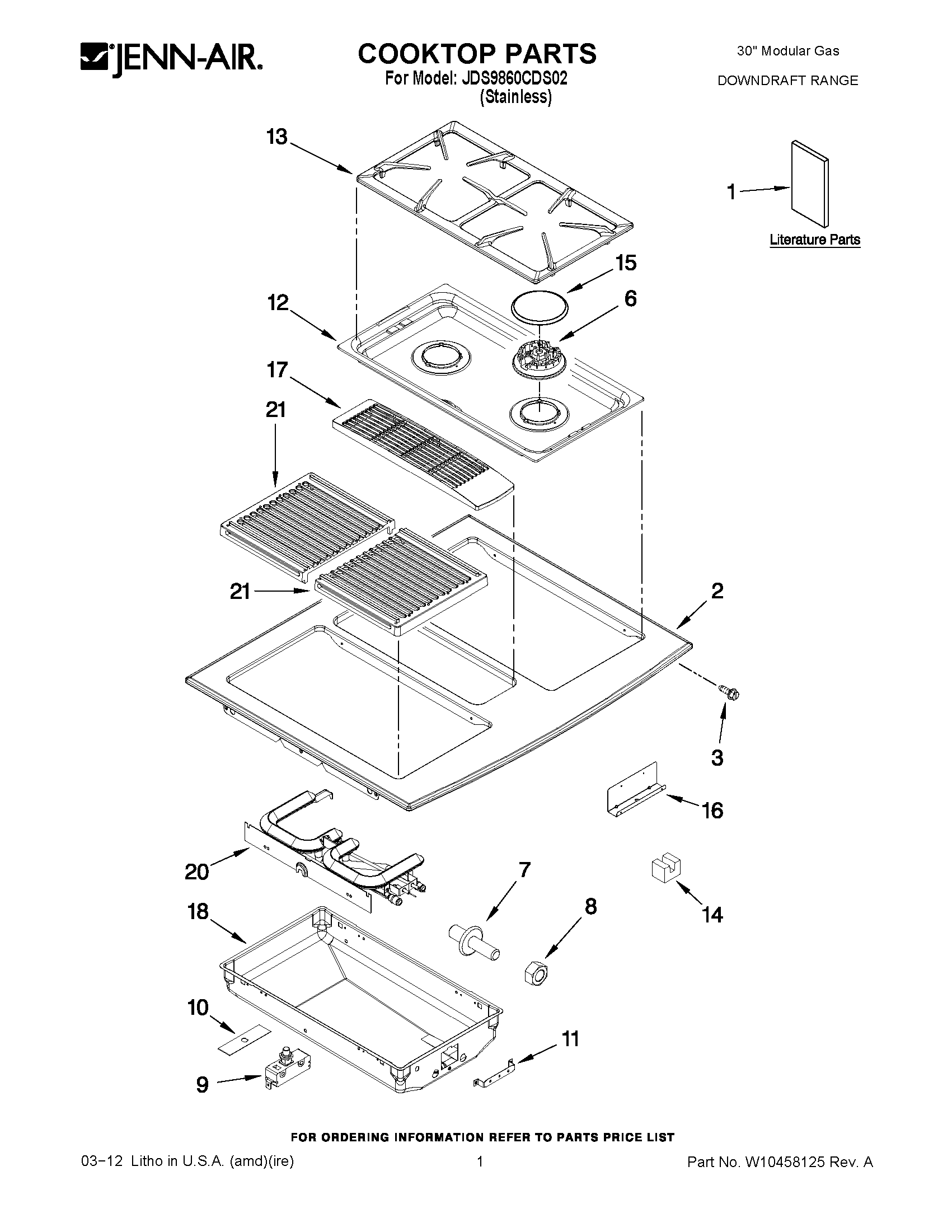

JDS9860CDS02 01 – COOKTOP PARTS

JDS9860CDS02 01 – COOKTOP PARTS

Written by

in

JDS9860CDS02 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10394696
1WIRING DIAGRAM (USA)
1MAY W10235521
1MAY W10253464
1CARD, FLOW TESTER
2COOKTOP (STAINLESS)
3MAY 7101P426- 60
6HEAD, BURNER CTR.
6MAY 7540P047-60
7PIN, LOCATOR
8NUT, LOCK
9SWITCH, INF.
10SWITCH, INSUL.
11CLIP
12MAY 2001F270-09
13GRATE (BLACK)
14MAY 8255P412-60
15CAP, BURNER (LF & RR)
15CAP, BURNER (CTR)
16MAY 3807F743-51
17MAY 7772P045-60
18PAN, GRILL (LEFT)
20E-BURNER, GRILL
21GRATE, GRILL
