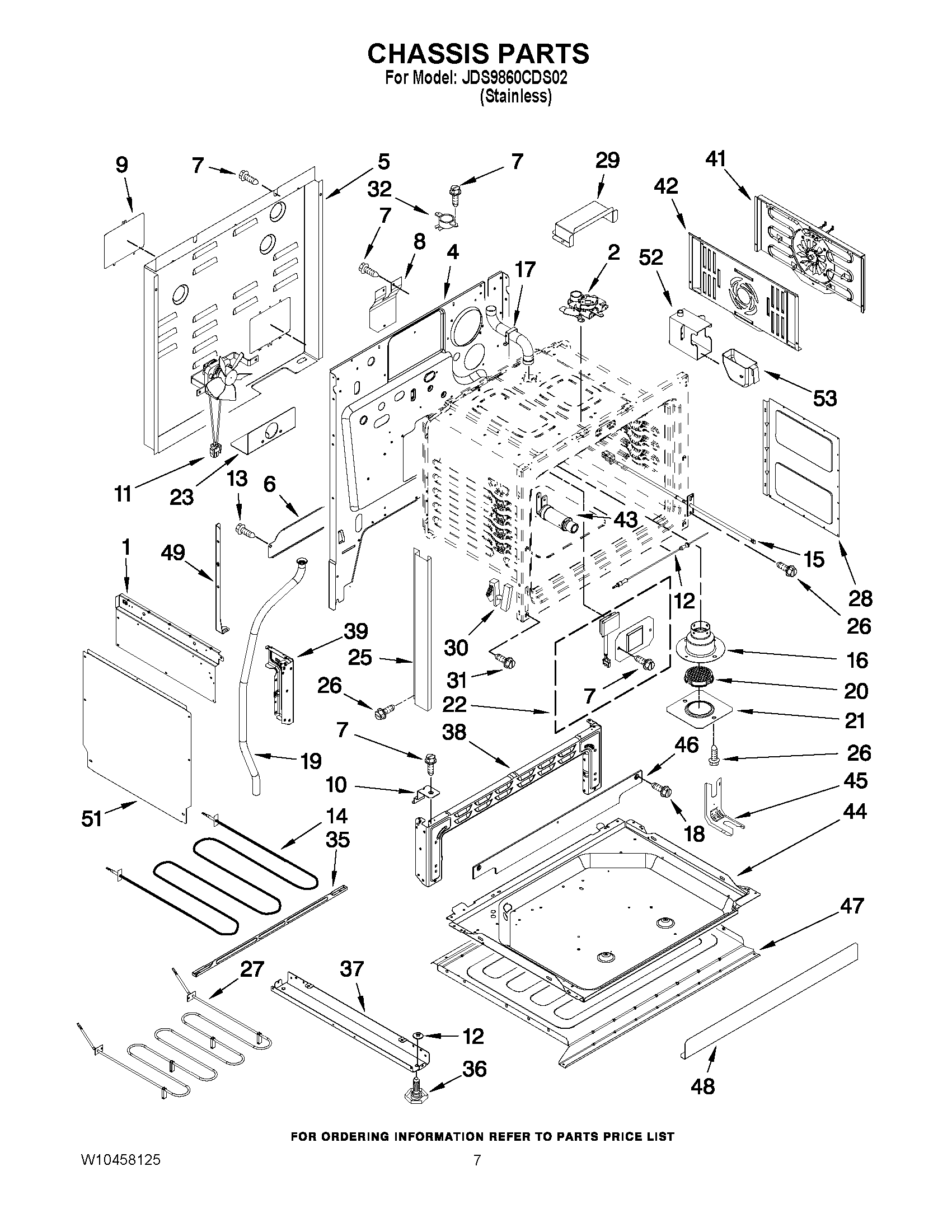

JDS9860CDS02 05 – CHASSIS PARTS

JDS9860CDS02 05 – CHASSIS PARTS

Written by

in

JDS9860CDS02 05 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P468-60
NI	INSULATION, OVEN BOTTOM
NI	MAY 7002P466-60
1	MAY 2618F206-51
1	MAY 2618F201-51
2	LATCH ASSEMBLY
4	BACK, MAIN
5	COVER, MAIN WIRE
6	MAY 8004P024-60
7	MAY 7101P426- 60
8	MAY 7003P101-60
9	COVER, TERMINAL
10	MAY 3807F615-51
11	MAY W10317679
12	MAY 7430P038-60
13	SCREW, SHOULDER
14	MAY W10314704
15	MAY 7430P042-60
16	MAY 8026P096-60
17	MAY 8026P094-60
18	Screw (2) (Black)
19	TUBE, DRAIN
20	SCREEN, SMOKE ELM.
21	MAY 3605F344-45
22	MAY 7407P180-60
23	MAY 3801F911-51
25	TRIM, SIDE (BLACK (2))
26	MAY 7101P434-60
27	MAY W10310274
28	INSULATION
29	COVER, DOOR LATCH
30	Hinge, Door (2)
31	SCREW (10-24X5/16-NI)
32	THERMOSTAT, HI-LIMIT (LOWER)
35	SUPPORT, BROIL ELEMENT
36	LEG, LEVELING
37	MAY 4020W035-80
38	PEDESTAL, FRONT
39	MAY 4020F033-80
39	MAY 4020F032-80
41	MAY W10213813
42	COVER, CONVECTION
43	MAY 7408P086-60
44	MAY 3804F305-51
45	BRACKET, ANTI-TIP
46	TRIM, FRONT FRAME
47	RETAINER, INSUL. (BOTTOM)
48	MAY 4005F779-80
49	MAY 3807F732-51
51	MAY 3604F416-51
52	MAY 8312P191-60
53	MAY 8312P190-60
