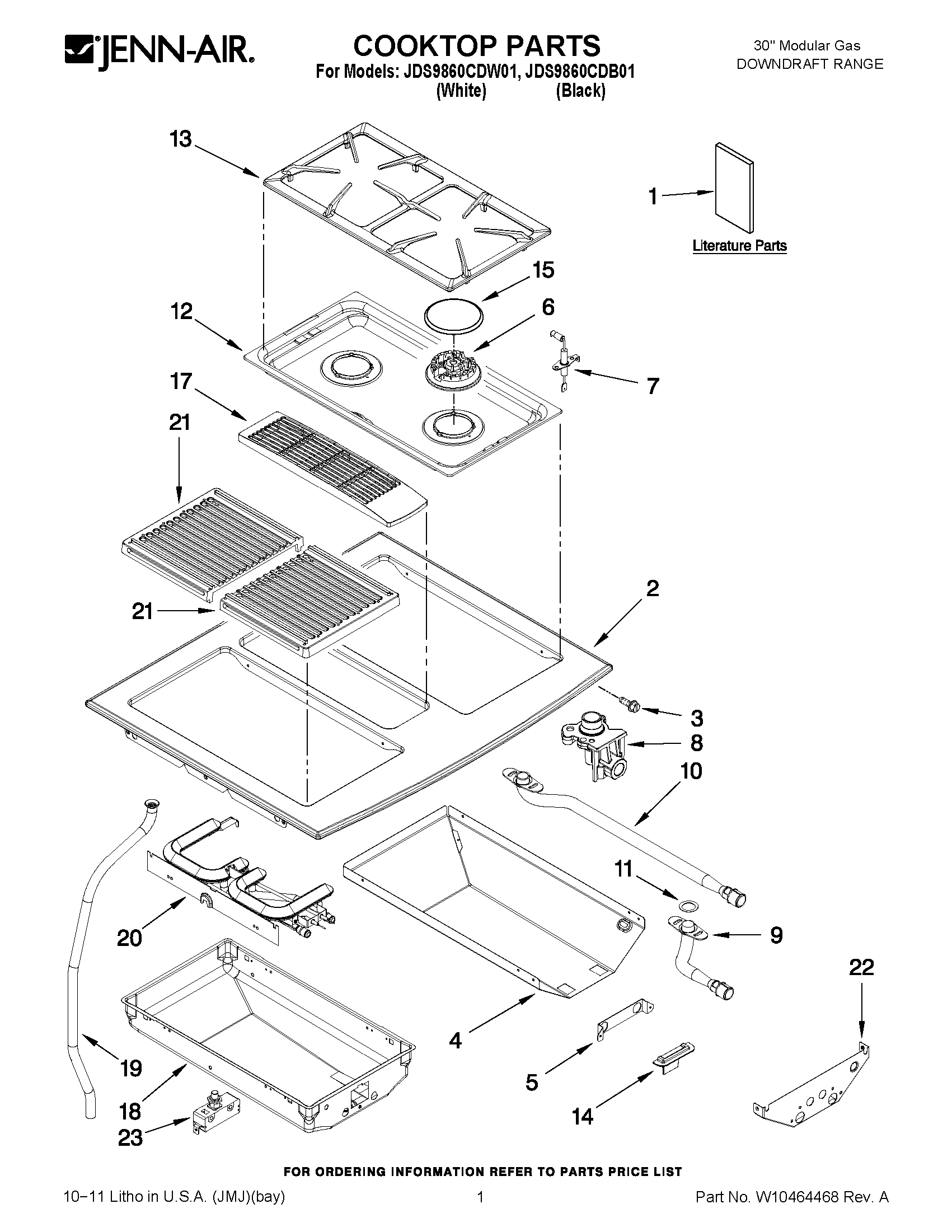

JDS9860CDW01 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	CARD, FLOW TESTER
1	MAY W10235521
1	MAY W10253464
1	WIRING DIAGRAM (USA)
1	TIPS, SAFE COOKING (FRENCH)
2	COOKTOP (BLACK)
2	COOKTOP (STAINLESS)
2	COOKTOP (WHITE)
3	MAY 7101P426- 60
4	HOUSING, CARTRIDGE
5	MAY 3801F894-51
6	BURNER, HEAD (RIGHT FRONT)
6	HEAD, BURNER CTR.
7	MAY 7432P120-60
8	HOLDER, ORIFICE (RIGHT REAR)
8	WPW10407678 Whirlpool Orifice Holder
9	MAY 74011791
10	MAY 74011792
11	MAY 7212P067-60
12	MAY 2001F270-09
12	TOP, WHITE
13	GRATE (BLACK)
14	MAY 7724P179-60
15	CAP, BURNER (LF & RR)
15	CAP, BURNER (CTR)
17	MAY 7772P045-60
18	PAN, GRILL (LEFT)
19	TUBE, DRAIN
20	E-BURNER, GRILL
21	GRATE, GRILL
22	MAY 4005F792-61
23	SWITCH, INF.
