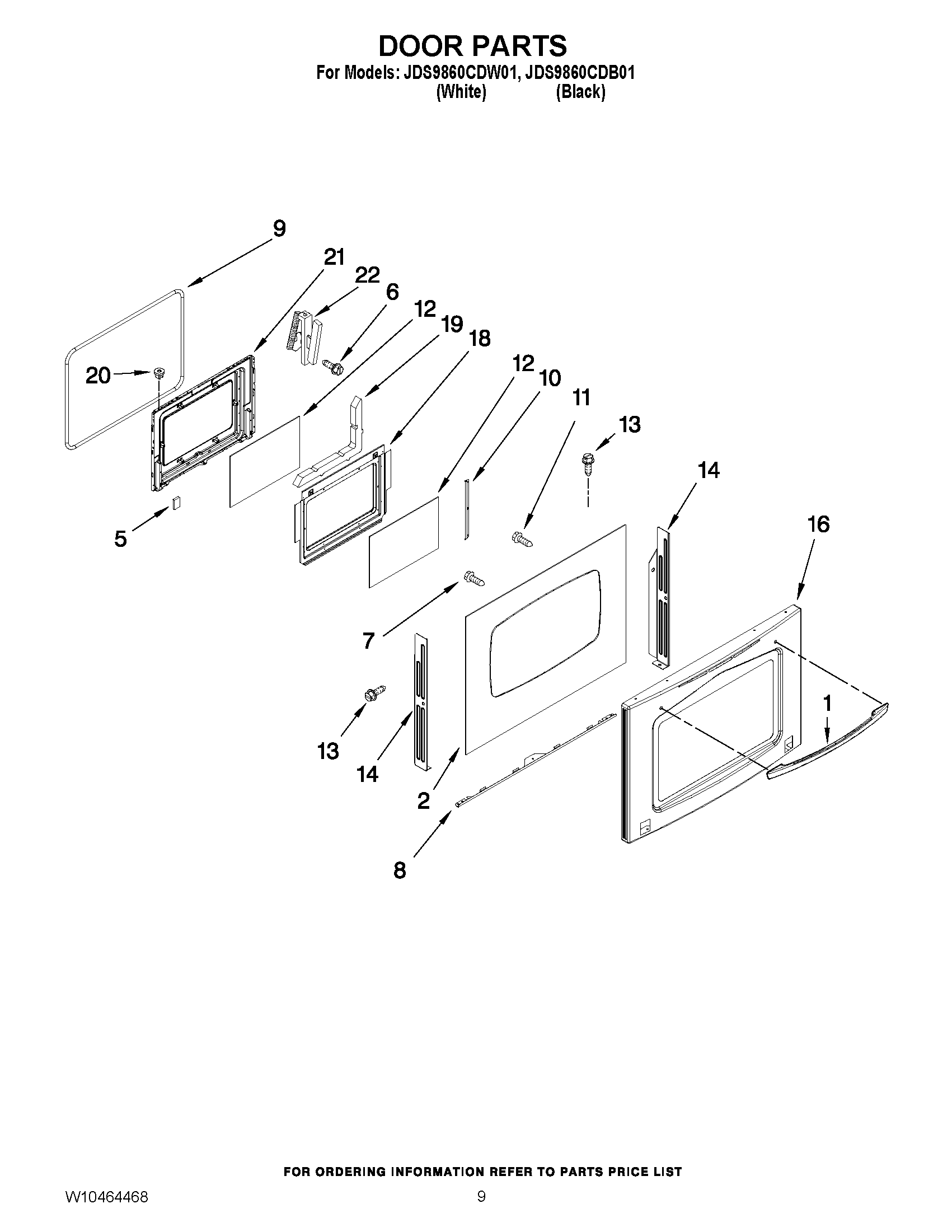

JDS9860CDW01 06 – DOOR PARTS
Written by
in
JDS9860CDW01 06 – DOOR PARTS
Products
Position
Product
1
MAY W10223163
1
MAY W10223164
2
MAY W10272330
2
MAY W10272332
5
MAY 7109P082-60
6
MAY 7103P176-60
7
MAY 7101P426- 60
8
MAY W10331048
9
MAY W10162384
10
BRACKET, INNER GLASS
11
MAY 7101P376-60
12
Glass, Inner
13
Screw (2) (Black)
14
MAY 3608F138-71
16
MAY 3603F075-70
16
MAY 3603F075-71
18
MAY 3601F373-51
19
MAY 7002P246-60
20
MAY 7103P141-60
20
NUT, SNAP (ROUND-WHT)
21
MAY 2402W312-19
22
Hinge, Door (2)
←
