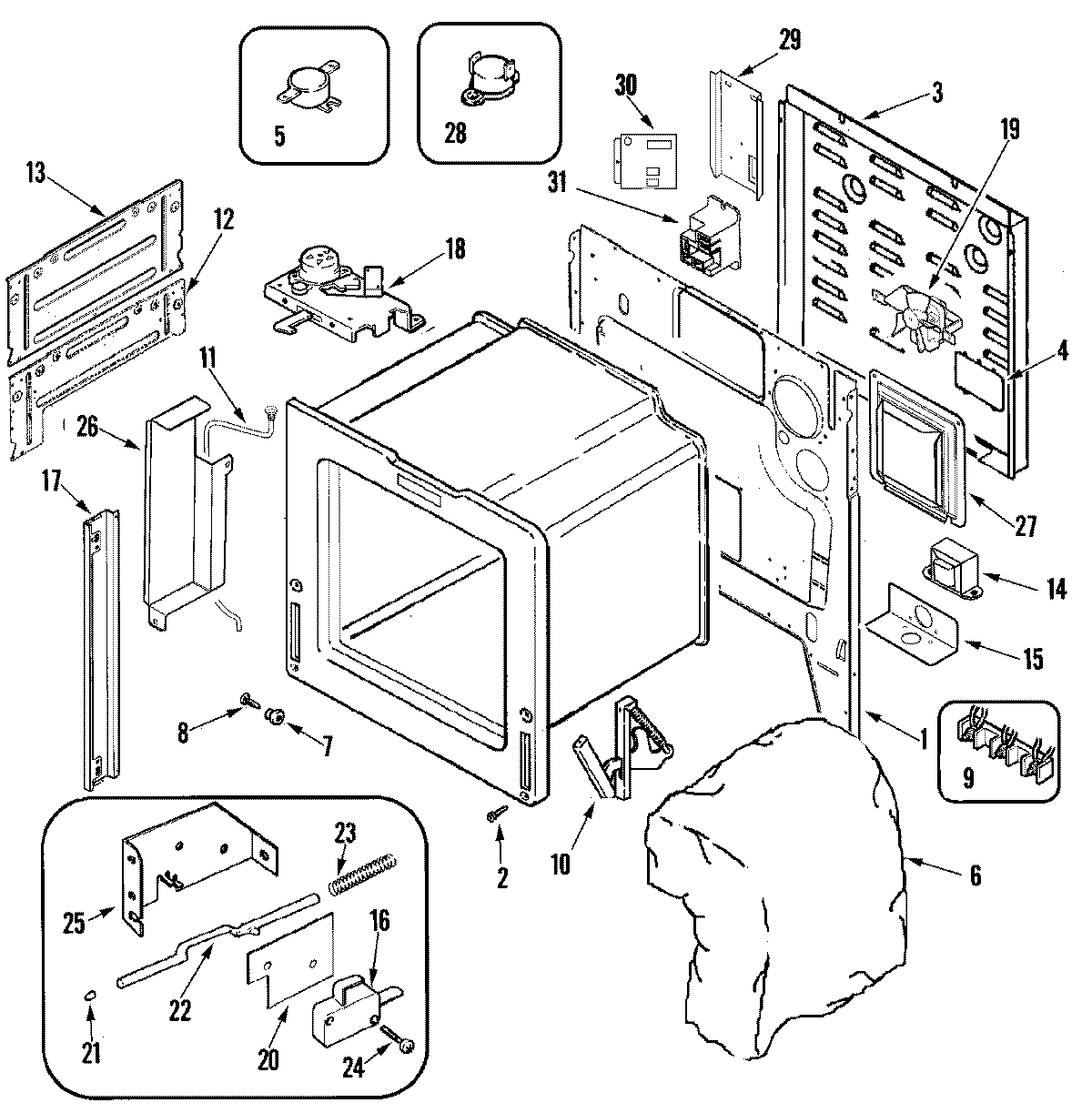

JDS9861AAP 02 – BODY

Products

Position	Product
1	MAY 74005721
2	SCREW (10-24X5/16-NI)
3	4005F810-51 Whirlpool Access Cover
4	COVER, TERMINAL BLOCK
5	WP71001844 Whirlpool Thermostat
6	MAY 74005839
6	MAY 74006357
6	MAY 74005840
7	MAY 8004P024-60
8	W11693756 Whirlpool Screw Assembly
9	WP7103P027-60 Whirlpool Nut
9	WPW10245259 Whirlpool Terminal Block
9	INSULATOR, POWER CORD
10	WP74011140 Whirlpool Oven Hinge
11	MAY 702747
11	MAY 702748
11	MAY 74005855
12	MAY 74006103
12	MAY 74005854
13	MAY 74007487
14	MAY 74005416
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 71003644
16	MAY 74001802
17	MAY 74004216
18	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
18	MAY 74005675
19	MAY 74004947
19	SCREW
20	MAY 74001872
21	MAY 74001631
22	ROD, DOOR LIGHT SWITCH
23	MAY 74009060
24	MAY 7101P330-60
25	BRACKET, SWITCH ACTUATOR
26	MAY 74006356
26	MAY 74005876
27	MAY 74004348
28	MAY 74004098
29	MAY 74006122
30	MAY 71002035
31	WP74003482 Whirlpool Auxiliary Relay
