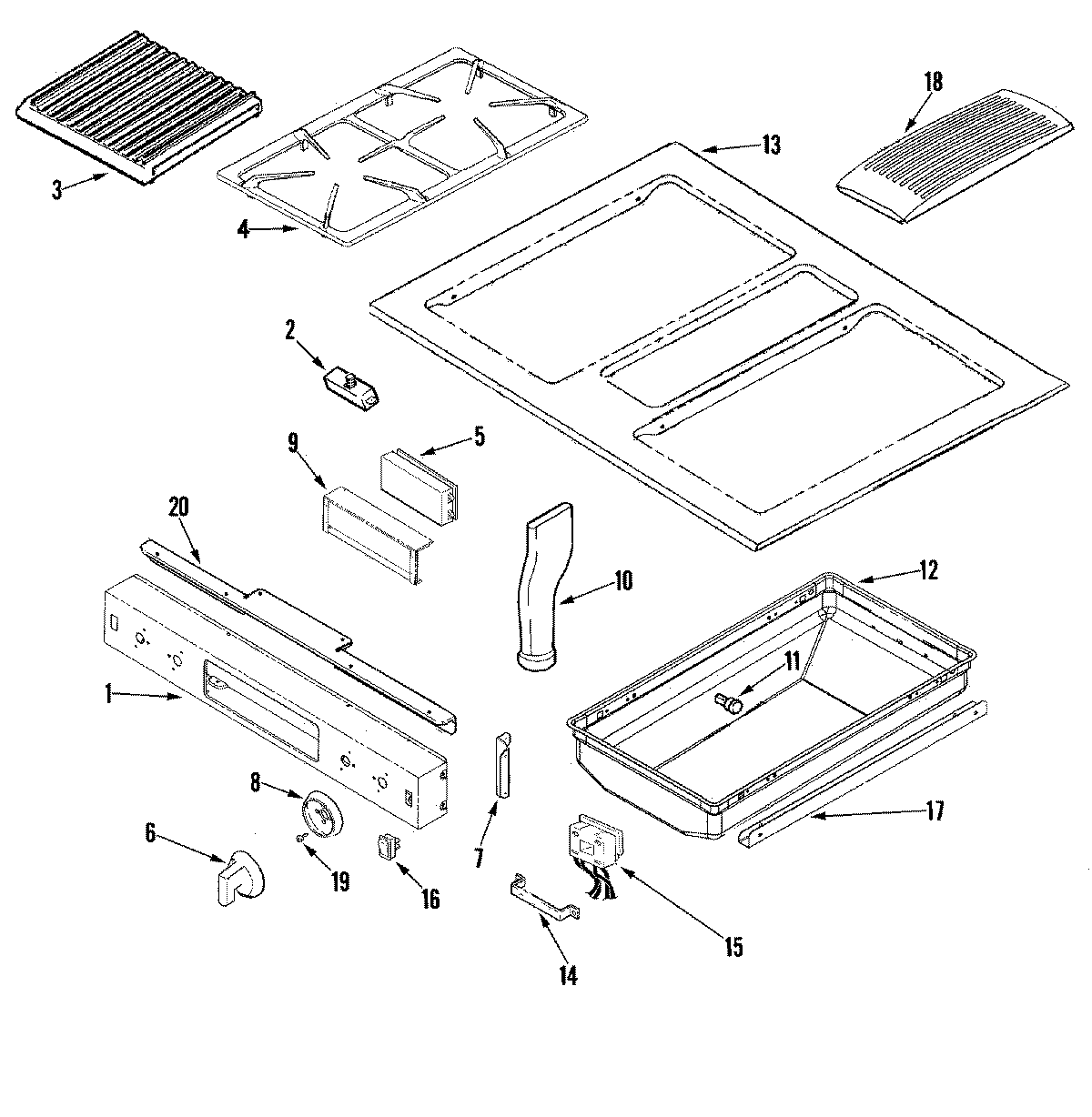

JDS9861AAP 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010786
2	MAY 74006095
2	WP7450P012-60 Whirlpool Burner Top
3	MAY 71003267
4	WP7518P483-60 Whirlpool Burner Grate
5	MAY 74008207
5	MAY 74006331
6	KNOB
7	SCREW (8ABX1/2``-BLK)
7	MAY 74005729
8	MAY 74009664
9	MAY 74006129
10	MAY 74005808
11	MAY Y704553
11	71001764 Whirlpool Locator PIN
12	MAY 74006089
12	MAY 74006090
12	MAY Y704947
13	MAY 74009641
14	MAY 74006093
14	WP489128 Whirlpool Refrigerator Screw
15	MAY 74006092
15	MAY 74006091
16	WP3147265 Whirlpool Rocker Switch
16	MAY Y704311
17	MAY 74005817
17	W10828565 Whirlpool Screw
18	MAY 74006061
20	MAY 74005756
20	SCREW (8BX3/8-NI)
