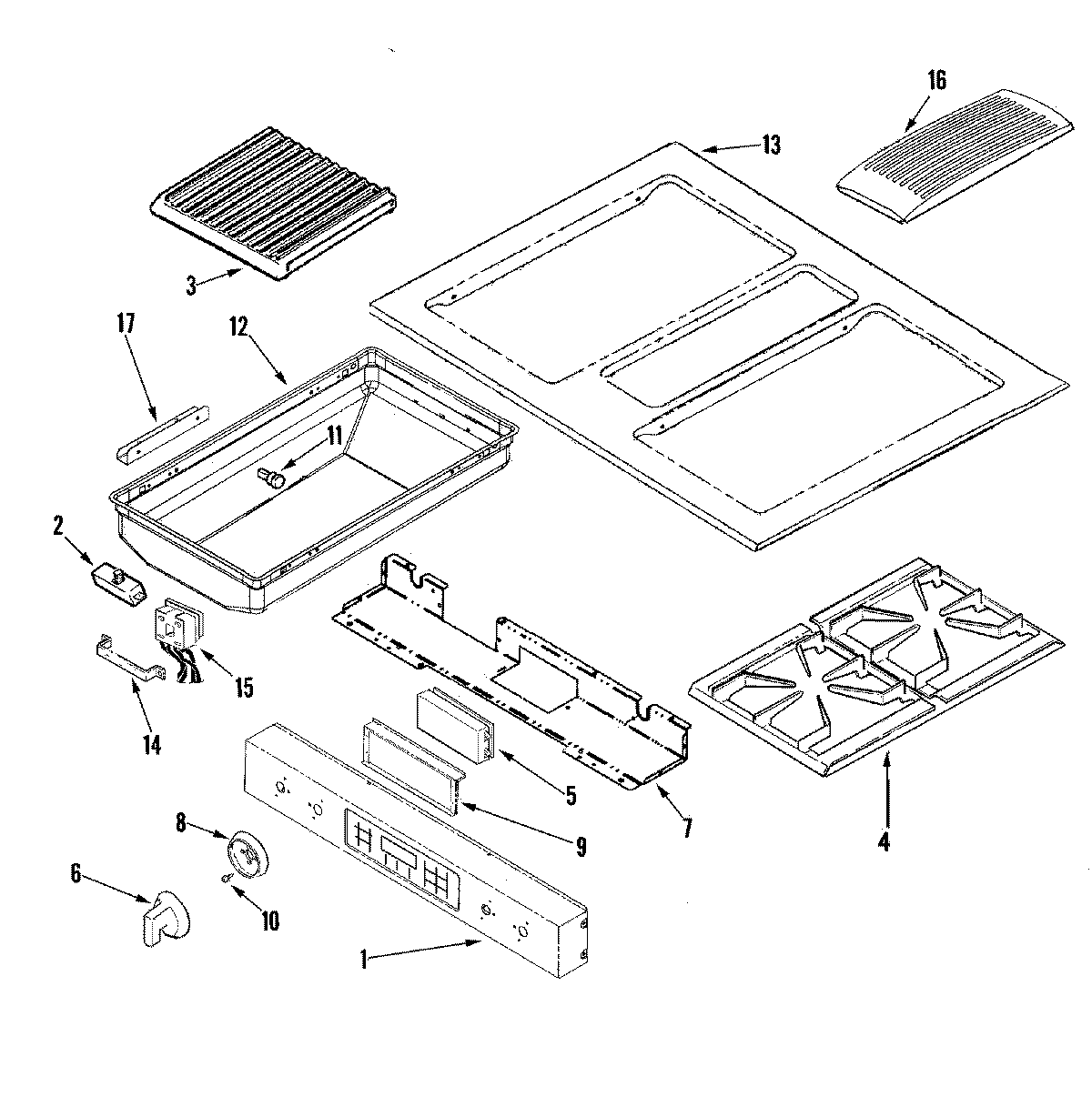

JDS9865BDP 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	WP5760M373-60 Whirlpool Control Panel
2	WP7450P012-60 Whirlpool Burner Top
3	MAY 71003267
5	MAY W10202531
5	MAY 74011524
5	WP8507P232-60 Whirlpool Electronic Control Board
5	WP59002061 Whirlpool Microwave Screw
6	WPW10175695 Whirlpool Burner Knob
7	MAY 74011531
7	SCREW (8ABX1/2“-BLK)
8	MAY 74011533
8	MAY 74011534
9	SCREW (8BX3/8-NI)
9	MAY 74006129
10	SCREW (10ABX1/4P TR ZN)
11	MAY Y704553
11	71001764 Whirlpool Locator PIN
12	MAY 74006090
12	MAY Y704947
13	MAY 74011474
14	MAY 74006093
14	WP489128 Whirlpool Refrigerator Screw
15	MAY 74011519
16	MAY 74006061
17	W10828565 Whirlpool Screw
17	MAY 74011599
