JDS9865BDP 04 – DOOR/ACCESS PANEL (SER PRE 10)

JDS9865BDP 04 – DOOR/ACCESS PANEL (SER PRE 10)

Written by

in

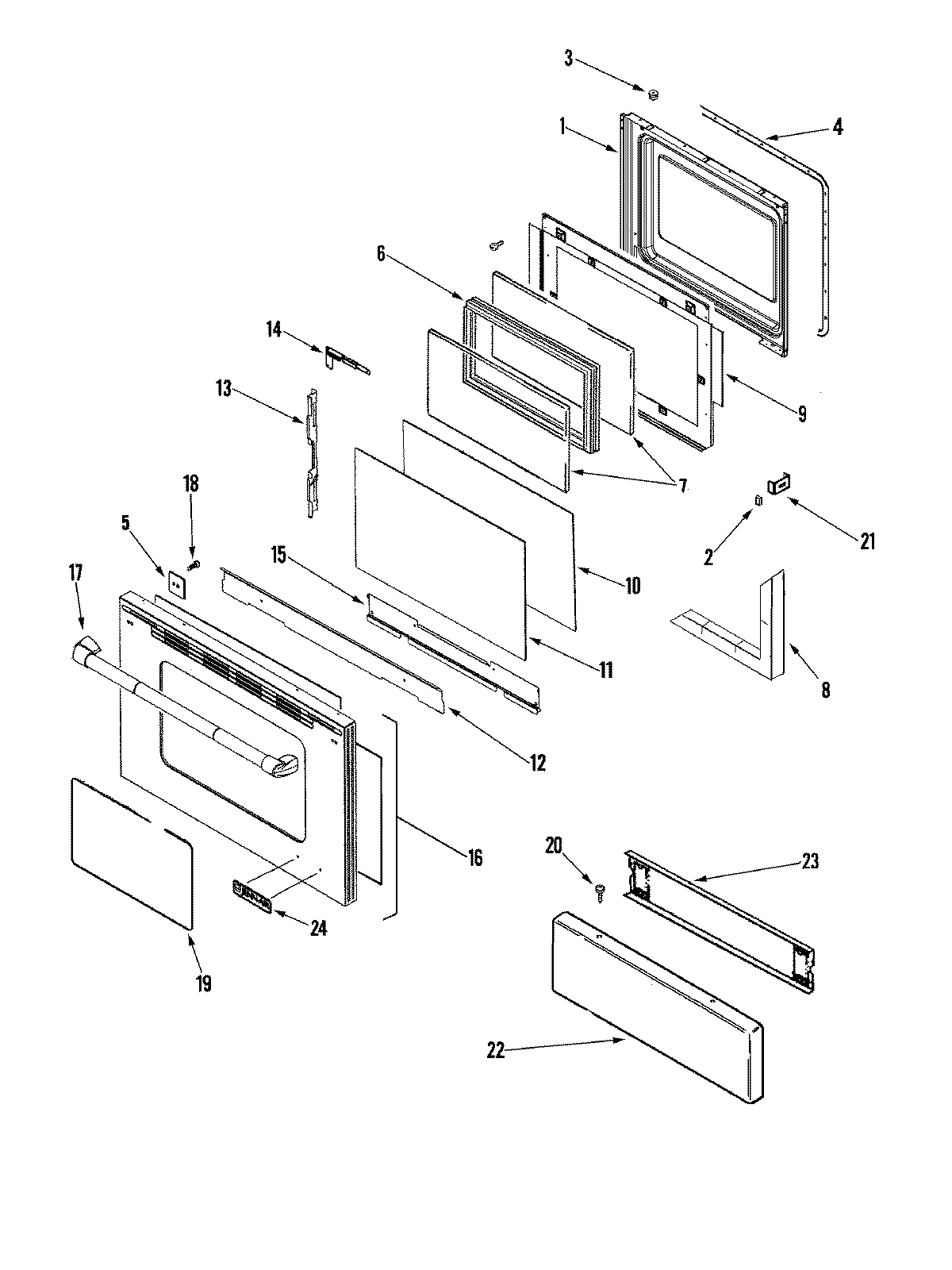

JDS9865BDP 04 – DOOR/ACCESS PANEL (SER PRE 10)

Products

PositionProduct
1MAY 74003642
2WP74004224 Whirlpool Tape
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74010785
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74011339
10GLASS, DOOR (INNER/COATED)
11GLASS, DOOR
12MAY 74011049
13RETAINER, GLASS SUPPORT
14MAY 74011503
14MAY 74011504
15MAY 74007215
16Insulation, Foil
16MAY 74011536
16INSULATION, FOIL
17WP7701P475-60 Whirlpool Door Handle
18MAY 74011751
1974008916 Whirlpool Window Gasket
20WP90767 Whirlpool Screw
21CLIP, DOOR
22MAY 74007081
23MAY 74011554
247103P166-60 Whirlpool Nut
24MAY 74006889
