JDS9865BDP 06 – GAS CONTROLS

Products

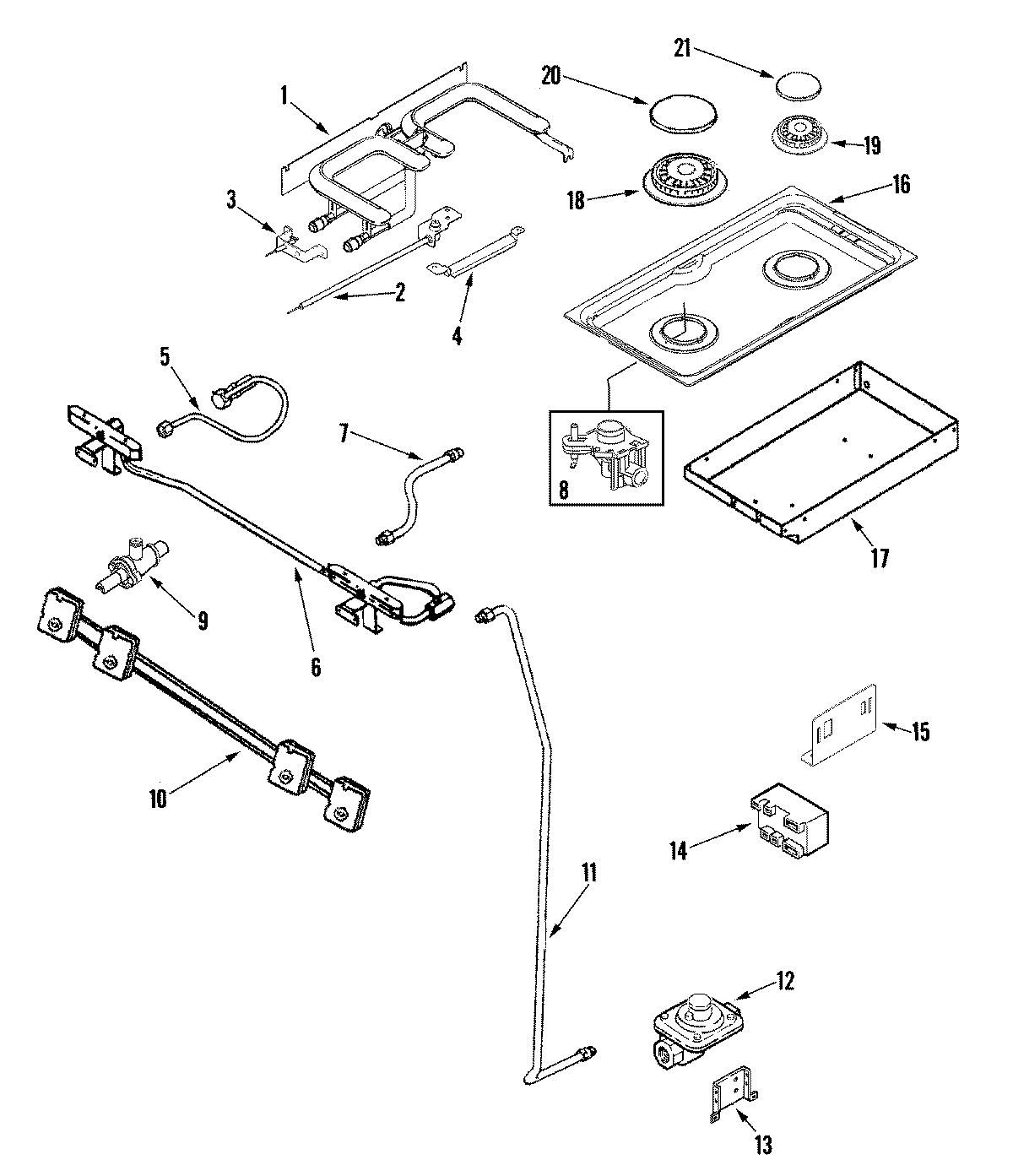

PositionProduct
1MAY 74010760
1MAY 74011139
2WP74006072 Whirlpool Spark Electrode
3WP74006073 Whirlpool Oven Igniter
4MAY 74006071
5MAY 74011467
6PIPE, MANIFOLD
6MAY 74011528
7MAY 74011470
7MAY 74011469
8WPW10407680 Whirlpool Orifice Holder
8WPW10110378 Whirlpool Surface Igniter
8WPW10407678 Whirlpool Orifice Holder
9MAY 74009416
9VALVE (LEFT FRONT/REAR)
9MAY 74009451
9MAY W10171165
9MAY W10171161
912002270 Whirlpool Valve Kit and Screw 16K
10MAY 74011527
10HARNESS, IGNITER (WITH SWITCHES)
10WP74008212 Whirlpool Seal Switch
11MAY 74011471
11TUBING, SUPPLY
12MAY Y04100249
12WP90767 Whirlpool Screw
13MAY Y04100845
148215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
14Module, Spark (4+0)
15BRACKET
15SUPPORT, SPARK MODULE
16MAY 74011472
17MAY 74011466
18BURNER, HEAD (RIGHT FRONT)
19WPW10406243 Whirlpool Burner Head Auxiliary 6K
20CAP, BURNER (EX-LRG/BLK)
21WP8284669 Whirlpool Burner Cap
