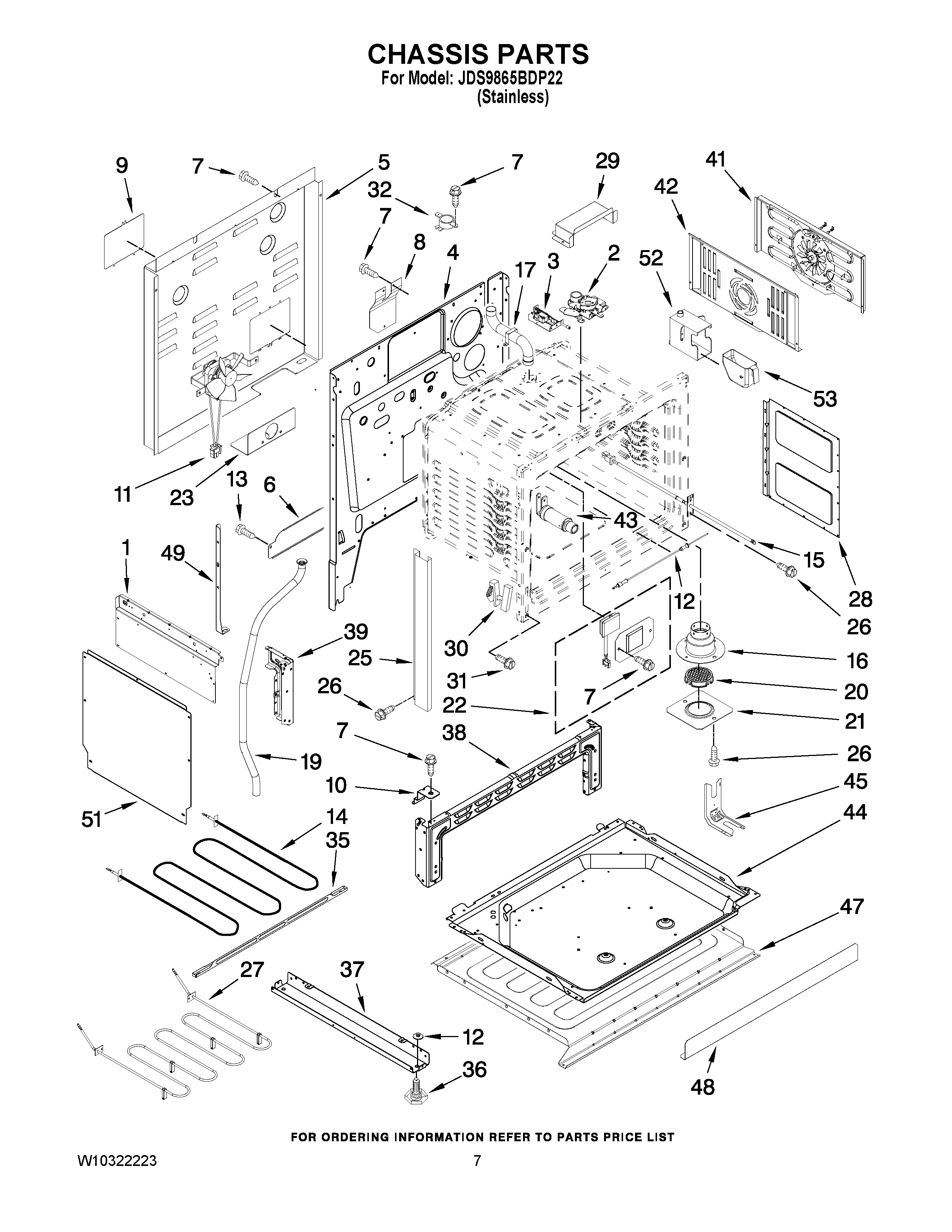

JDS9865BDP22 05 – CHASSIS PARTSadmin2025-04-26T09:28:28+00:00JDS9865BDP22 05 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P468-60 |
| NI | INSULATION, OVEN BOTTOM |
| NI | MAY 7002P466-60 |
| 1 | MAY 2618F206-51 |
| 1 | MAY 2618F201-51 |
| 2 | MAY 8002P089-60 |
| 3 | ASSY., LIGHT SW |
| 4 | BACK, MAIN |
| 5 | COVER, MAIN WIRE |
| 6 | MAY 8004P024-60 |
| 7 | MAY 7101P426- 60 |
| 8 | MAY 7003P101-60 |
| 9 | COVER, TERMINAL |
| 10 | MAY 3807F615-51 |
| 11 | MAY 7427P094-60 |
| 12 | MAY 7430P038-60 |
| 13 | SCREW, SHOULDER |
| 14 | MAY 7406P430-60 |
| 15 | MAY 7430P042-60 |
| 16 | MAY 8026P096-60 |
| 17 | MAY 8026P094-60 |
| 19 | TUBE, DRAIN |
| 20 | SCREEN, SMOKE ELM. |
| 21 | MAY 3605F344-45 |
| 22 | MAY 7407P180-60 |
| 23 | MAY 3801F911-51 |
| 25 | TRIM, SIDE (BLACK (2)) |
| 26 | MAY 7101P434-60 |
| 27 | MAY 7406P439-60 |
| 28 | INSULATION |
| 29 | COVER, DOOR LATCH |
| 30 | Hinge, Door (2) |
| 31 | SCREW (10-24X5/16-NI) |
| 32 | THERMOSTAT, HI-LIMIT (LOWER) |
| 35 | SUPPORT, BROIL ELEMENT |
| 36 | LEG, LEVELING |
| 37 | MAY 4020W035-80 |
| 38 | PEDESTAL, FRONT |
| 39 | MAY 4020F032-80 |
| 39 | MAY 4020F033-80 |
| 41 | MAY W10213813 |
| 42 | COVER, CONVECTION |
| 43 | MAY 7408P086-60 |
| 44 | MAY 3804F305-51 |
| 45 | BRACKET, ANTI-TIP |
| 47 | RETAINER, INSUL. (BOTTOM) |
| 48 | MAY 4005F779-80 |
| 49 | MAY 3807F732-51 |
| 51 | MAY 3604F416-51 |
| 52 | MAY 8312P191-60 |
| 53 | MAY 8312P190-60 |
