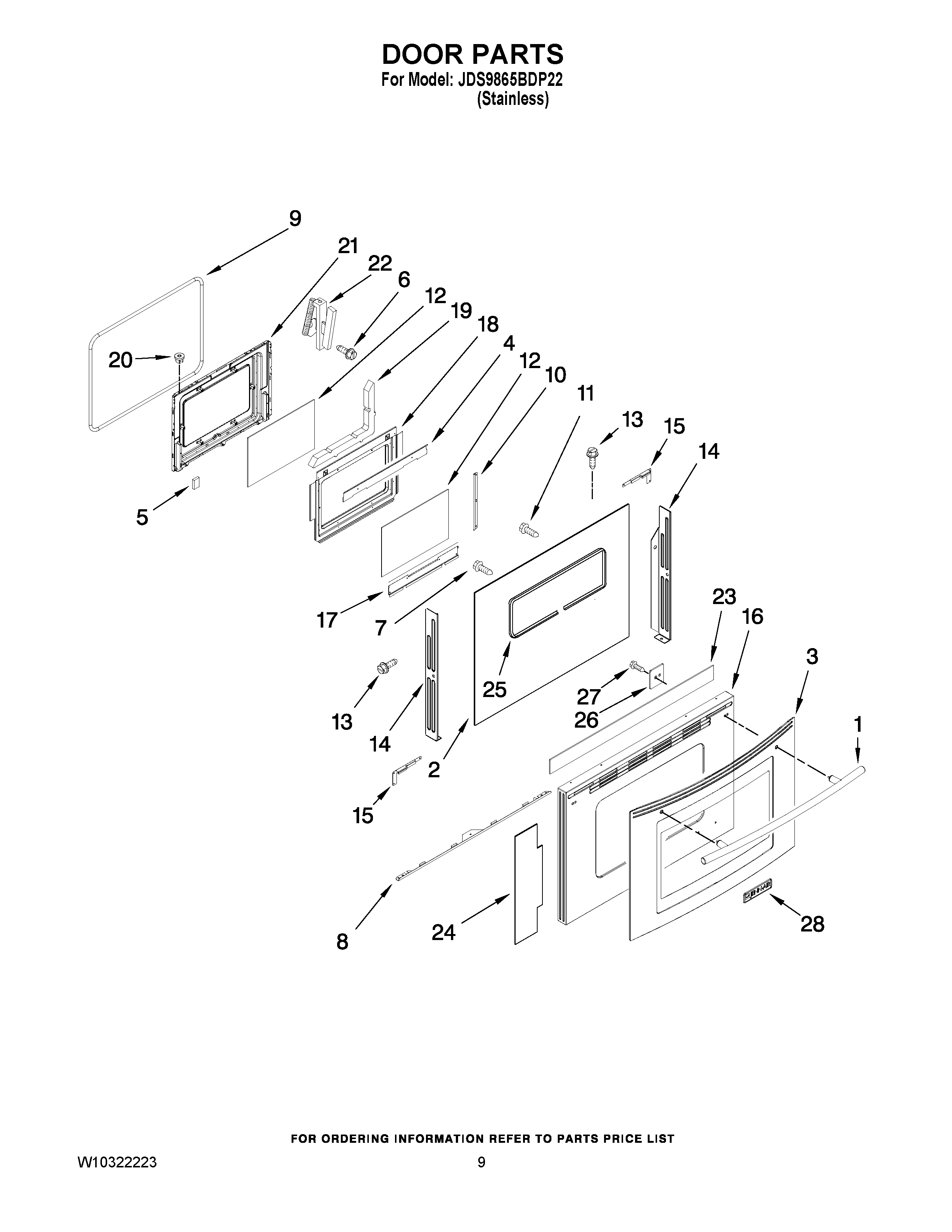

JDS9865BDP22 06 – DOOR PARTS

Products

Position	Product
1	MAY 7701P475-60
2	GLASS, INNER COATED
3	Glass, Door
4	MAY 3604F418-51
5	CLIP, DOOR
6	SCREW (10-24X5/16-NI)
7	MAY 7101P426- 60
8	Retainer, Glass Support (2)
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	SCREW
15	MAY 3804F307-51
15	MAY 3804F308-51
16	MAY 7760P158-60
17	RETAINER, GLASS (LOWER)
18	MAY 3601F373-51
19	MAY 7002P246-60
20	MAY 7103P141-60
21	MAY 2402W312-19
22	Hinge, Door (2)
23	Insulation, Foil
24	INSULATION, FOIL
25	MAY 7201P141-60
26	MAY W10167659
27	Screw
28	MAY 7719P087-60
