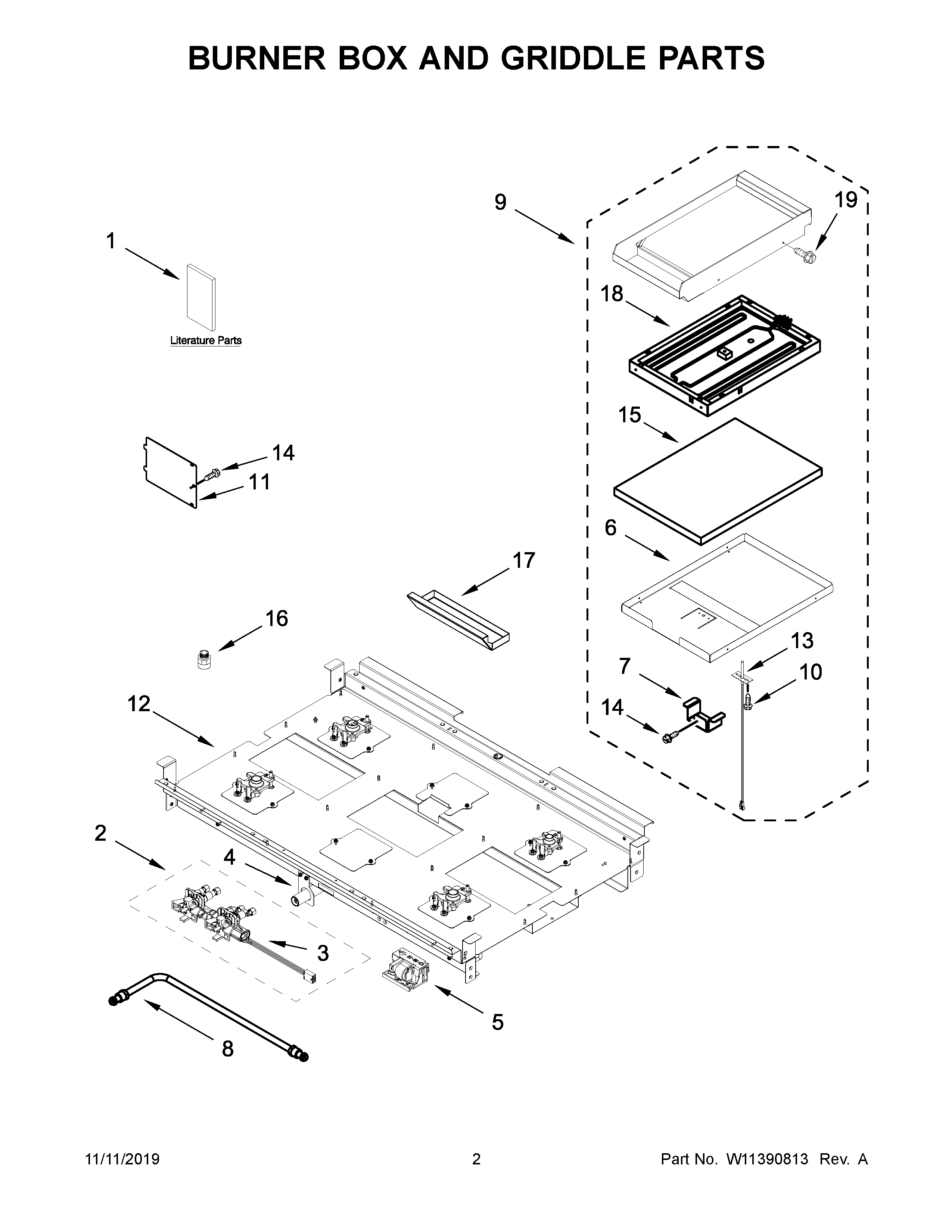

JDSP536HL00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	MAY W11200319
NI	HARNESS, GRIDDLE
NI	MAY W11200326
NI	HARNESS, DOOR LOCK
NI	MAY W11200325
NI	HARNESS, WIFI
NI	CORD, POWER
NI	BOARD, TRANSIENT SUPPRESSOR
NI	KIT, LP CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 9759877
NI	BRACKET, ANTI-TIP
NI	MAY 4450800
1C	MAY W11202365
1D	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
1B	GUIDE, INTERNET CONNECTIVITY
2	MAY W10893053
2A	MAY W10893062
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	MAY W11330430
7	BRACKET, GRIDDLE-RTD
8	MAY W10892370
8A	MAY W10892443
9	ASSEMBLY, GRIDDLE MODULE
10	MAY 3196160
11	MAY W10115843
13	SENSOR, GRIDDLE
14	MAY 7101P426- 60
15	INSULATION, GRIDDLE
16	ADAPTER, MALE
17	DRIP, TRAY GRIDDLE
18	ELEMENT, GRIDDLE
19	Screw
