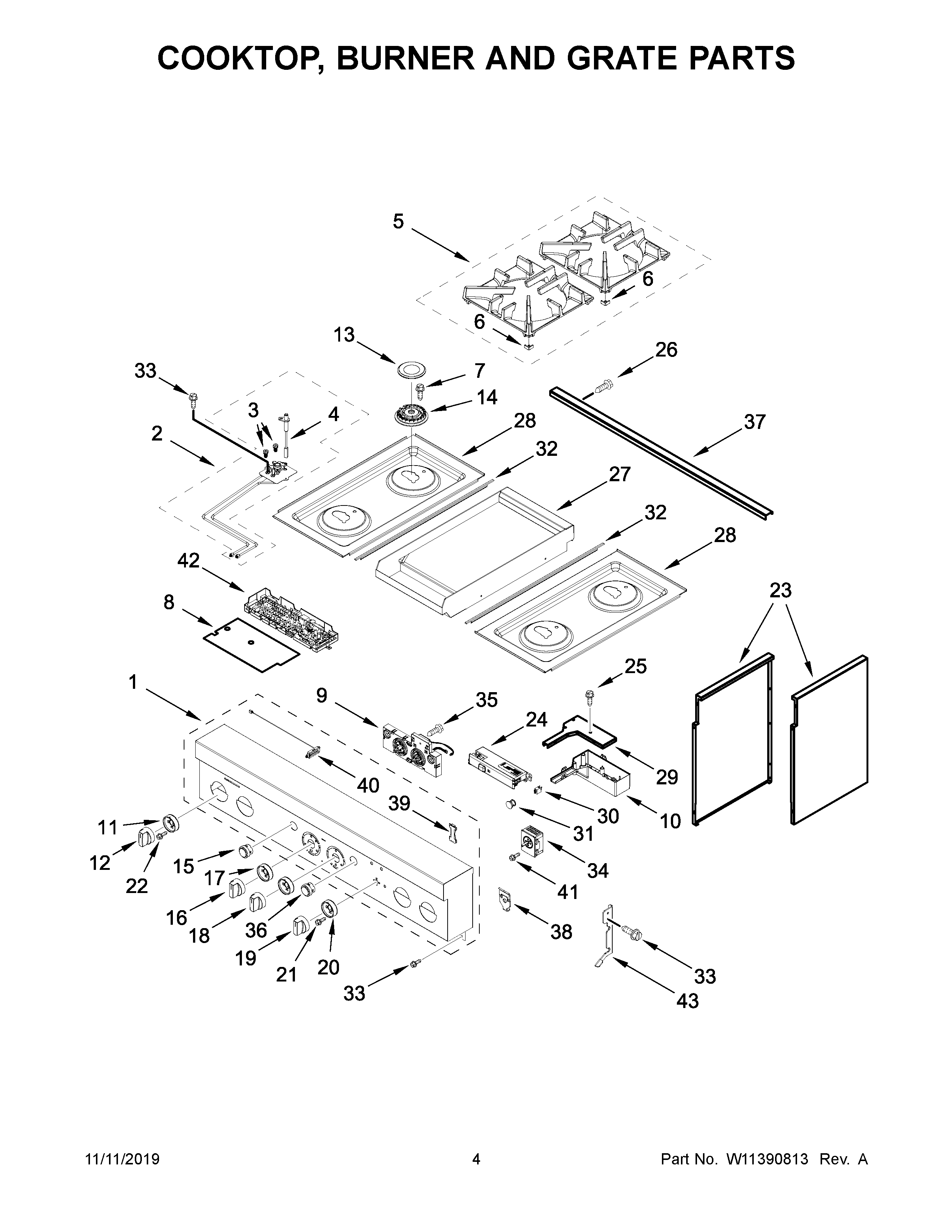

JDSP536HL00 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	MAY W11253774
2C	MAY W10892730
2	MAY W10892793
2A	MAY W10892494
2B	MAY W10892475
3B	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3A	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3C	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	MAY W11323260
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095710
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	KNOB, BURNER (STAINLESS)
13	CAP, BURNER (BLACK (SET OF 4))
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15	BUTTON ASSEMBLY, OVEN LIGHT
16	MAY W10891873
17	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
18	KNOB, OVEN TEMPERATURE (STAINLESS)
19	KNOB, GRIDDLE (STAINLESS)
20	BEZEL, GRIDDLE
21	SCREW
22	MAY W10919387
23A	MAY W11106880
23	MAY W11106881
24	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
25	SCREW
26	SCREW (8BX3/8-NI)
27	ASSEMBLY, GRIDDLE MODULE
28	PANEL, COOKTOP (BLACK (LEFT))
28A	MAY W10804371
29	COVER, WIFI INNER
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	CONTROL, GRIDDLE
35	SCREW
36	BUTTON ASSEMBLY, OVEN START
37	MAY W11156416
38	SPRING CLIP, RANGE
39	ASSEMBLY, LIGHT PIPE
40	ANTENNA, WIFI
41	Screw
42	MAY W11100269
43	BRACKET,CONSOLE (LEFT)
43A	BRACKET,CONSOLE (RIGHT)
