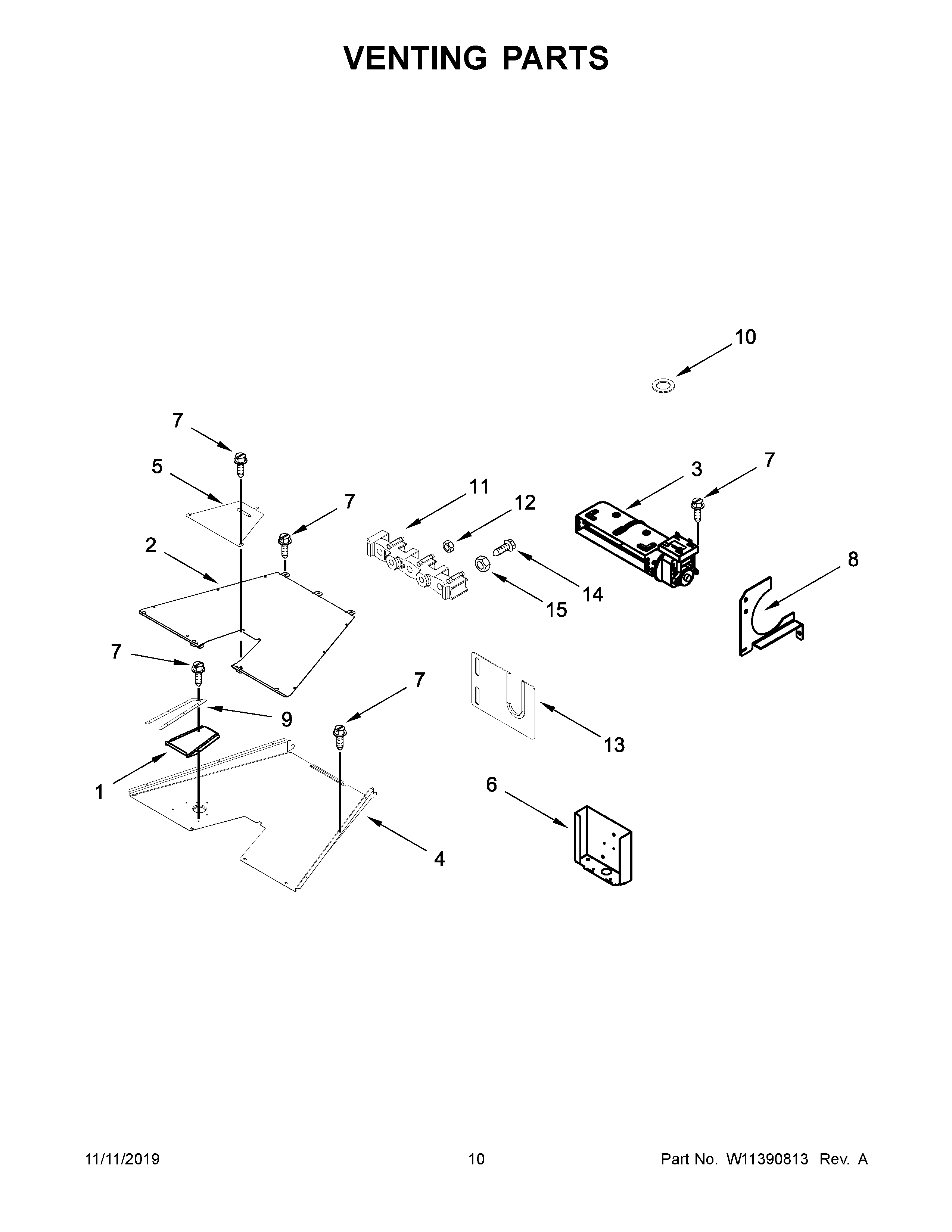

JDSP536HL00 06 – VENTING PARTS

JDSP536HL00 06 – VENTING PARTS

Written by

in

JDSP536HL00 06 – VENTING PARTS

Products

Position	Product
1	SLOPE, EXHAUST VENT (30")
2	VENT, COOLING TOP (30")
3	BLOWER
4	VENT, COOLING BOTTOM (30")
5	PLATE, COOLING LATCH
6	MAY W11353392
7	MAY 7101P426- 60
8	BRACKET, BLOWER MOUNT
9	MAY W10270397
10	MAY W10270396
11	BLOCK, TERMINAL
12	NUT
13	COVER, CHANNEL
14	SCREW
15	SCREW
