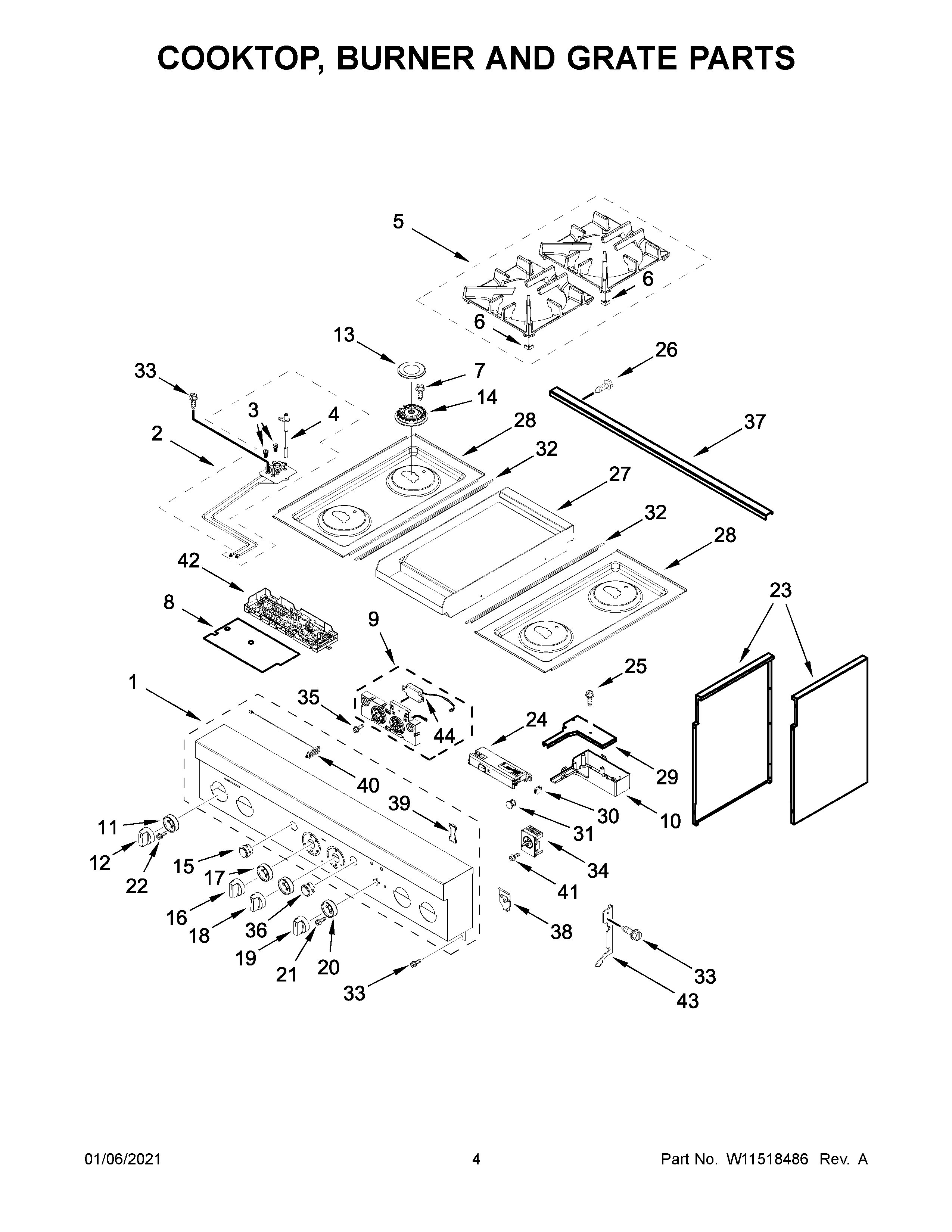

JDSP536HL01 03 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1W11444077 Whirlpool Control Panel
2BW11333307 Whirlpool Orifice Holder
2W11333305 Whirlpool Holder Orifice
2AW11333306 Whirlpool Orifice Holder Assembly
2CW11333309 Whirlpool Orifice Holder
3DW10892429 Whirlpool Orifice Spud
3AW11661909 Whirlpool Range Orifice Spud
3CW10892440 Whirlpool Spud Orifice
3BW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
4W11573760 Whirlpool Surface Igniter
4AW11238756 Whirlpool Surface Igniter
5W11515370 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492292-includeCORE Whirlpool W11492292 Washer Electronic Control Board + Core
10COVER, WIFI OUTER
11BEZEL-KNOB
12W11574368 Whirlpool Knob
13W11328971 Whirlpool Burner Cap
14W11319683 Whirlpool Burner Head
14AW11319673 Whirlpool Burner Head
15W11318857 Whirlpool Push Button
16KNOB, OVEN MODE STEAM (STAINLESS (FOR 30" OV
17W11317499 Whirlpool Knob Bezel
18W11574369 Whirlpool Range Knob
19WPL W10884943
20W11317495 Whirlpool Knob Bezel
21WPL 7101P30960
22W11509770 Whirlpool Screw
23W11333179 Whirlpool Side Assembly
23AW11333303 Whirlpool Side Complete Assembly
24W11234290 Whirlpool Electronic Control Board
25WPL 7101P62460
26SCREW
27W11602621 Whirlpool Module
28AW11334155 Whirlpool Cooktop
28W11316696 Whirlpool Cooktop
29WPL W11205794
30W10116114 Whirlpool Indicator Light
31W10294500 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34W11318834 Whirlpool Infinite Heat Switch
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37W11156416 Whirlpool Top Trim
38W11318207 Whirlpool Clip Assembly
39WPL W10896369
40W11318855 Whirlpool Antenna
41WP3196557 Whirlpool Screw
42W11371064 Whirlpool Electronic Control Board + Core
43AW10130759 Whirlpool Mounting Bracket
43W10130760 Whirlpool Bracket Mounting
44W11123146 Whirlpool Speaker
